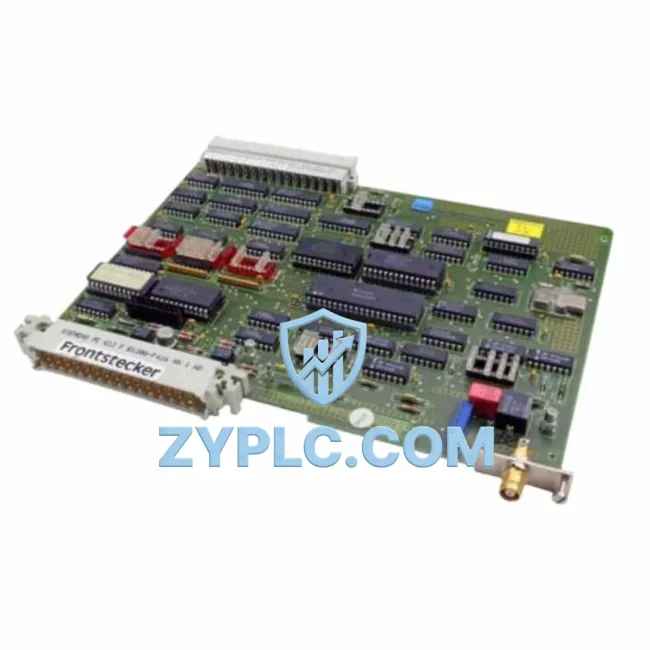

Siemens 6DS1300-8AB System-Ready Analog Input for Teleperm M Architecture

Siemens 6DS1300-8AB System-Ready Analog Input for Teleperm M Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6DS1300-8AB is a precision analog input module purpose-built for the Teleperm M distributed control system (DCS) platform — one of Siemens’ most enduring and widely deployed process automation architectures. Rather than functioning as a standalone component, the 6DS1300-8AB occupies a critical position within the layered signal acquisition hierarchy of a Teleperm M installation, serving as the primary interface between field instrumentation and the central processing infrastructure. Understanding this module’s role requires examining the full control system architecture in which it operates: from the field sensor layer through the I/O acquisition tier, the controller backplane, the communication network, and ultimately the operator interface and supervisory systems.

In a typical Teleperm M installation, the 6DS1300-8AB is mounted within a standardized Siemens rack assembly alongside companion modules such as the AS 235 automation station processor, digital input/output modules from the 6DS13xx series, and power supply units from the 6DS9 series. The module receives analog signals — typically 4–20 mA current loops or voltage signals from transmitters, thermocouples, or RTDs — and converts them into digital values that the Teleperm M controller can process in real time. This signal conditioning and digitization function is foundational to the entire control loop: without accurate, stable analog acquisition, the controller cannot execute reliable PID regulation, cascade control, or feedforward compensation strategies.

Architecture Specification Table

Coordinated Control System Design

The 6DS1300-8AB does not operate in isolation — its value is fully realized only when integrated within a coherent Teleperm M system architecture. At the controller layer, the AS 235 or AS 488/TM automation station processors interpret the digitized analog values delivered by the 6DS1300-8AB and execute the control algorithms defined in the engineering database. These processors communicate with the I/O modules via the Teleperm M internal bus, ensuring deterministic, low-latency data exchange essential for closed-loop process control.

On the power supply side, the 6DS9400-series power supply modules provide the regulated 24 V DC rail that feeds both the 6DS1300-8AB and adjacent modules within the same subrack. Proper power architecture — including redundant power supply configurations using dual 6DS9400 units — ensures that a single power failure does not interrupt analog signal acquisition, which is particularly critical in continuous process industries such as petrochemicals or power generation.

For digital I/O coordination, the 6DS1300-8AB works alongside digital input modules such as the 6DS1200-8AB and digital output modules from the 6DS1400 series, all sharing the same backplane and controller resources. This co-location within a unified rack assembly simplifies wiring, reduces cabinet footprint, and ensures synchronized scan cycles across analog and digital channels — a key advantage in applications where analog measurements must be correlated with discrete equipment states.

At the network and supervisory layer, the Teleperm M system connects to SINEC H1 or PROFIBUS-based communication networks, enabling the AS 235 processor to exchange data with higher-level SIMATIC WinCC or Teleperm XP SCADA/DCS operator stations. The analog values acquired by the 6DS1300-8AB are thus made available to operators in real time via trend displays, alarm management systems, and historical data archives. Integration with Siemens SIMATIC NET communication processors further extends connectivity to modern Ethernet-based control networks, allowing legacy Teleperm M installations to interface with contemporary MES and ERP systems without full system replacement.

For human-machine interface (HMI) coordination, Siemens OP series operator panels or PC-based WinCC stations receive process values originating from the 6DS1300-8AB’s analog channels, presenting them as engineering-unit values on mimic diagrams and trend charts. This end-to-end data path — from field transmitter through the 6DS1300-8AB, across the backplane bus, through the AS 235 processor, over the SINEC network, and onto the operator screen — represents the complete signal flow that the 6DS1300-8AB anchors at the I/O acquisition stage.

Application in Layered Automation Systems

The Siemens 6DS1300-8AB finds application across a broad spectrum of process industries where the Teleperm M platform was originally deployed and continues to operate. In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the module acquires analog signals from pressure transmitters, flow meters, temperature sensors, and level gauges that monitor boiler, turbine, and auxiliary systems. The module’s galvanic isolation and stable A/D conversion performance are essential in high-noise electrical environments typical of generator halls and switchgear rooms.

In petrochemical and refinery applications, the 6DS1300-8AB supports continuous process monitoring across distillation columns, heat exchangers, reactors, and storage tank farms. Its multi-channel architecture allows a single module to simultaneously monitor multiple process variables within a single control loop group, reducing the number of rack slots required and simplifying system maintenance. The module’s compatibility with 4–20 mA HART-capable transmitters — when used with appropriate signal conditioners — enables integration with modern field device management tools without replacing the core Teleperm M infrastructure.

For water and wastewater treatment plants, the 6DS1300-8AB provides reliable analog acquisition for flow, pH, turbidity, dissolved oxygen, and pressure measurements across intake, treatment, and distribution systems. The module’s proven long-term stability makes it particularly well-suited for water utility applications where system uptime requirements are stringent and maintenance windows are infrequent.

In metallurgical and mining operations, the module supports analog signal acquisition from furnace temperature sensors, conveyor load cells, crusher vibration monitors, and flotation cell level sensors. The harsh electromagnetic environment of smelting and mineral processing facilities demands the robust electrical isolation that the 6DS1300-8AB provides, ensuring measurement accuracy even in the presence of high-current motor drives and arc furnace interference.

For packaging and manufacturing production lines that were originally automated with Teleperm M systems, the 6DS1300-8AB enables continued operation of existing control infrastructure without costly migration to newer platforms. Many manufacturers operating legacy Teleperm M installations choose to maintain and extend these systems rather than undertake full DCS replacement projects, making reliable sourcing of modules like the 6DS1300-8AB a strategic operational priority.

Architecture Engineering FAQ

Q1: Is the 6DS1300-8AB compatible with all Teleperm M rack and backplane configurations?
The 6DS1300-8AB is designed for the standard Teleperm M subrack system and is compatible with the full range of Teleperm M rack assemblies, including both the compact and extended subrack formats used across AS 235 and AS 488/TM automation station configurations. The module connects via the Teleperm M internal backplane bus and does not require additional interface adapters when installed in a standard Teleperm M rack. Engineers should verify the specific subrack slot assignment and address configuration against the existing system engineering documentation to ensure correct integration without bus conflicts.

Q2: Can the 6DS1300-8AB be installed and commissioned without the original Teleperm M engineering tools?
Commissioning the 6DS1300-8AB within an existing Teleperm M system typically requires access to the Teleperm M engineering system (ES) software for channel assignment, scaling configuration, and alarm limit parameterization. However, in replacement scenarios where an identical module is substituted into an existing slot with the same address and configuration, the system may recognize the module automatically upon restart without requiring full re-engineering. For new channel additions or configuration changes, the Teleperm M ES tools are required. ZYPLC recommends consulting the original system engineering documentation and, where necessary, engaging a qualified Siemens Teleperm M system integrator for commissioning support.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
All 6DS1300-8AB modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing prior to shipment to verify analog input accuracy, channel isolation integrity, and backplane bus communication. In the event of a warranty claim, ZYPLC provides replacement or repair services with priority processing. For long-term maintenance planning, ZYPLC maintains ongoing inventory of Teleperm M series modules, enabling customers to establish spare parts agreements that ensure continued system availability beyond the initial warranty period. Contact our technical team at [email protected] or +86 19859288691 for spare parts planning and extended support arrangements.
