Advant DCS Network Faults: Trace the Interface Before Swapping Nodes

Oct 11, 2026 5 min read DCS Process Control

Trace an ABB Advant DCS network fault from node and interface to fiber, power and configuration before replacing a communication module.

ABB Advant DCS network interface and fiber optic maintenance 2026

Intermittent communication alarms in an installed DCS are easy to misread as a failed interface module. A node disappears, returns after a restart, then drops again during a process transition. Replacing the card may appear to be the fastest path, especially if a spare is available. Yet an industrial network is a chain: interface, backplane, power, fiber or copper media, connectors, switch or coupler, node address, configuration, and the application that consumes the data. A swap without a path diagnosis can add another variable while the original defect remains.

ABB Advant installations commonly support long-lived process assets with engineering records accumulated across many outages. A practical network recovery plan protects those records and makes the fault reproducible. The objective is to establish whether the problem follows a module, a physical link, a power source, a node, or a configuration change.

Map the topology before touching the rack

Record the affected node, neighboring nodes, interface model and revision, rack and slot, network segment, media type, addressing, redundancy arrangement, and any recent maintenance or configuration changes. Photograph both ends of each relevant link, module labels, status LEDs, switch ports, and cable routing. Keep a copy of the approved topology and compare it with the installed field state. Mark any undocumented couplers, temporary patch leads or bypasses.

Capture timestamps for communication loss, recovery, controller diagnostics, switch alarms and process symptoms. Determine whether multiple nodes fail together or only one device disappears. A common failure across a segment points toward shared power, trunk, switch, or interface infrastructure. A single node suggests a local cable, connector, node interface or address problem, although a shared timing or configuration event can still affect just one application.

Test the physical layer in a controlled order

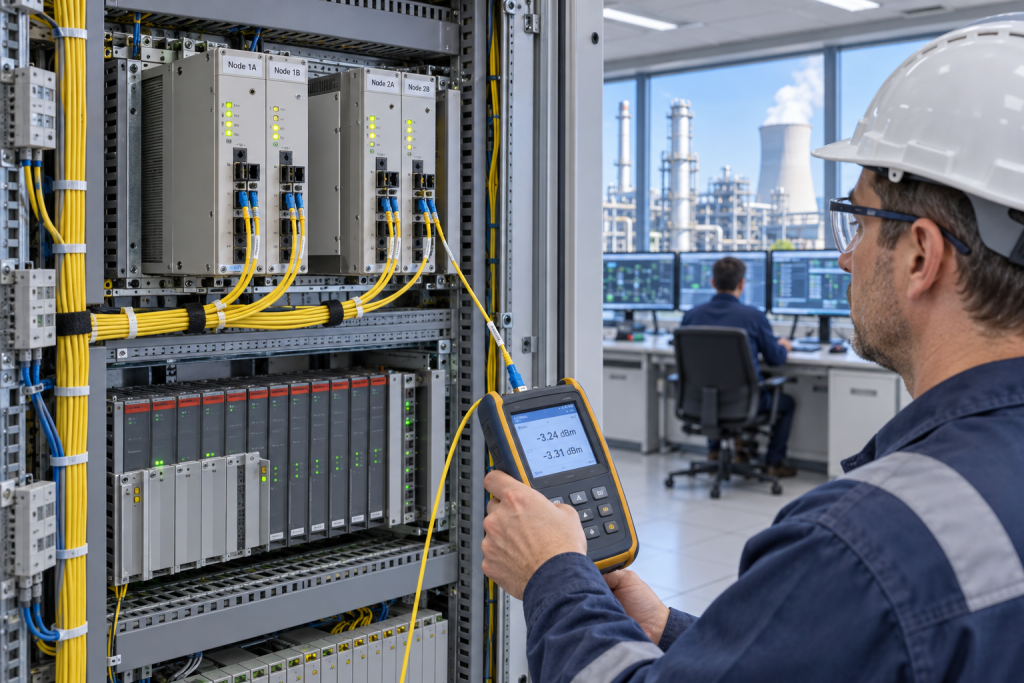

Inspect connectors for contamination, loose coupling, cracked ferrules, bend-radius violations, strain and moisture. Verify power and grounding for the interface and any media converter. For fiber, use suitable inspection and cleaning practices, then measure optical levels with compatible instruments. For copper, inspect terminations, shielding, routing, and noise exposure. Do not look into a fiber connector, and do not interrupt a redundant path without an approved maintenance plan.

Check whether the link problem correlates with cabinet temperature, vibration, door movement, or nearby drive switching. A damaged fiber may work when static but fail after movement. A marginal power supply may cause the module to reset while the network appears to be the cause. Record test values at both ends where possible and compare with the site’s baseline, not only a generic threshold.

Distinguish interface failure from node or configuration faults

Review diagnostic counters, link state, error rates, node status, power alarms, and controller events before resetting anything. Check whether a recent download, address change, firmware change, switch replacement or backup restoration preceded the fault. Verify duplicate addresses and configured node order using the authorized engineering workstation. Preserve logs and the active configuration before making changes.

If an approved controlled substitution is needed, change only one component at a time and record the old and new serial numbers and locations. A failure that follows the module is useful evidence; a fault that remains at the original port implicates the cable, node, port, power or configuration. Restore the baseline topology after the test and independently verify redundant paths. Never assume that two physically separate cables provide logical redundancy if they share a conduit, switch or power source.

The ABB 3BHB003688R0101 industrial network interface is a published catalog item relevant to ACS/DCS network interfaces. Confirm the exact system generation, interface role, connector type, firmware and topology before procurement treats it as a replacement. Ask for a readable label, revision and condition statement, and agree what test evidence the spare must carry.

Build a useful spare and recovery specification

For the sourcing request, include the complete part number, revision, system family, slot or node role, connector and media type, firmware constraints, quantity, required date, and condition requirement. Include photographs and a topology excerpt when it can be shared securely. If a tested-used or repaired unit is acceptable, define inspection, power-up, diagnostics and communication test expectations. Ask which functions were not tested; a generic “working” declaration is not enough for a critical path.

Maintain a verified backup of the network configuration and engineering project with revision, owner, date and restore test. Note licenses, cables, adapters, workstation image and tool version needed to connect. During an outage, verify the physical link, node identity, communications, process values, alarms and historian updates. Test redundancy by the approved method and confirm that failover does not create stale or duplicated data.

After recovery, observe the segment through a representative load and operating condition. Review counters for recurring errors, confirm all expected nodes remain available, and capture an as-left topology. Keep the removed interface tagged until bench investigation establishes whether the failure was electronic, thermal, configuration-related or external. The final record should explain what was changed, what evidence supports the cause, and what remains uncertain.

Questions DCS teams ask

Does a node disappearing prove the interface module is defective?

No. Check power, media, connectors, switch or coupler, node addressing, configuration and controller diagnostics before condemning the interface.

Can we reseat a fiber connector while the process is running?

Only if the site’s approved procedure and redundancy assessment permit it. Preserve the process risk review and avoid disturbing the active path casually.

What should a network-interface spare be tested for?

At minimum, verify identity, physical condition, power-up and diagnostics; for critical use, define compatible communications and system-specific checks.

What evidence should accompany an urgent RFQ?

Send the exact designation, revision, system generation, node role, connector details, topology context, fault timestamps, condition expectation and required date.

Recover the path with evidence

Network reliability is an installed-system property, not a box-level claim. Share the topology, node symptoms, interface label and outage deadline with ZYPLC. We can help verify the catalog match and prepare a clear quotation while the site’s automation authority retains control of configuration and acceptance.
