DeltaV SIS Spares: Verify the Logic Solver and Terminal Path

Oct 6, 2026 5 min read Emerson DeltaV

How to validate Emerson DeltaV SIS logic solver spares, fused terminals and field wiring before a safety-system maintenance window.

Emerson DeltaV SIS logic solver spare parts 2026

Safety instrumented systems are often discussed as if the logic solver were the entire safety function. In the field, the safety loop includes the sensor, marshalling, fused terminals, logic solver, output path, final element and proof-test record. A spare that matches the front label but does not match the wiring or configuration can delay a shutdown test and create an avoidable management-of-change problem.

Emerson DeltaV SIS installations need a particularly disciplined spare process because the maintenance team is balancing availability with functional safety. The most useful preparation is not a long product list. It is a controlled record of what the solver does, which terminals are used, what diagnostics are normal and how the replacement will be verified.

Map the safety function before buying

For each logic solver, list the safety instrumented functions that depend on it, the trip setpoints, the input and output channels, the voting arrangement and the final elements. Note whether the cabinet includes redundant power, separate marshalling or dedicated proof-test terminals. Add the current application revision and the last approved validation record.

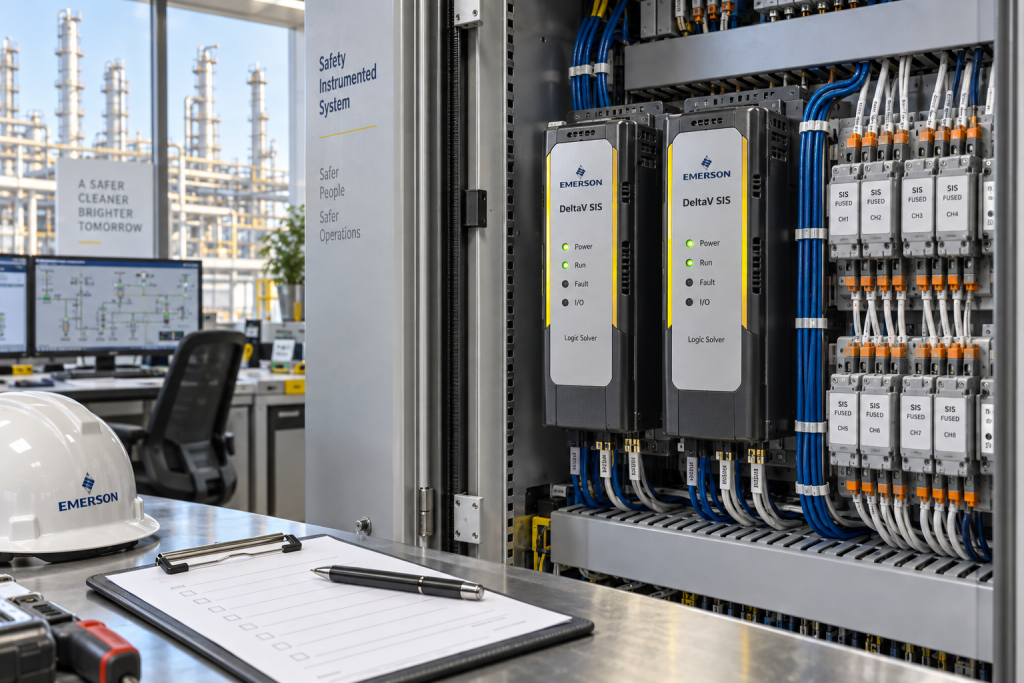

Use cabinet photographs to confirm module position and terminal orientation. Do not rely on an old drawing alone; field changes often occur during turnarounds. Record any temporary bypass, inhibited channel or failed diagnostic that is already open. A spare decision made without this context can accidentally restore an old condition instead of resolving the actual failure.

Distinguish solver failure from field-path failure

Start with power and diagnostics. Check supply voltage at the cabinet, fuse status, common reference and the diagnostic state of the affected channel. Compare the logic solver status with the transmitter or switch status in the engineering view. If the solver sees a valid input but the final element does not move, the fault may be in the output wiring, interposing relay, solenoid or actuator.

The Emerson KJ2201X1-BA1 DeltaV SIS logic solver should be matched to the approved safety-system record, not only to a family description. Confirm the hardware revision, I/O role, application compatibility and required proof-test procedure. If the site uses a redundant architecture, document which side is active and how a replacement will be introduced.

The Emerson KJ3221X1-BA1 DeltaV SIS logic solver provides another example of why the exact part and safety role matter. The buyer should ask for the option details, condition statement and functional-test evidence before accepting the spare.

Protect the configuration and the proof-test record

Before removing a solver, export the approved configuration using the site procedure and record the revision. Preserve the last proof-test results, bypass register and alarm history. If the replacement requires a download, define who authorizes it, who checks the logic and who signs off the return to service. A spare should never become an opportunity to make an undocumented logic change.

When testing a replacement, verify the channel behavior with an approved simulator or test method. Check input indication, voting logic, output action, reset behavior, diagnostics and operator alarms. Confirm that the test does not unintentionally energize a final element. For a live plant, use the site’s isolation and permit controls and involve the functional-safety owner.

Make the RFQ useful to the safety team

An urgent DeltaV SIS RFQ should include the exact part number, quantity, cabinet position, safety function, condition expectation, known diagnostic, application revision, proof-test requirement, destination and required date. Add clear photos of the nameplate, connectors and terminal section. State whether the supplier must provide a test report, certificate or exchange option.

For stock, separate a solver that has been tested for power-up from one that has been functionally tested with representative I/O. Store the record with the physical part. If the spare is repaired, document what was repaired and what was not tested. This is especially important when a safety-system component is held for years before its first use.

Before closing the work order, compare the post-maintenance diagnostics with the pre-failure baseline. Confirm that the expected safety function is available, no bypass remains open and the proof-test record names the hardware actually installed. This prevents a technically successful swap from becoming an undocumented risk.

Questions maintenance teams usually ask

Can any DeltaV controller be used in a SIS cabinet?

No. DeltaV process-control and SIS hardware can have different roles, approvals, wiring and configuration requirements. Match the exact safety-system part and approved architecture.

Should the logic solver be replaced when one field device fails?

Not automatically. Confirm the field signal, terminal path, fuse, I/O channel and final element before declaring the solver defective.

What evidence should accompany a SIS spare?

Request the exact identity, condition, functional-test scope, diagnostic state, firmware or revision where relevant, and any limitations that affect commissioning.

Who should approve the replacement?

The site maintenance and operations teams should work with the functional-safety owner and the authorized engineering process. A spare installation is not a substitute for the site’s proof-test and management-of-change controls.

Reduce uncertainty without weakening the safety case

DeltaV SIS spare planning works when the plant treats hardware identity, field wiring and safety evidence as one package. That approach shortens the outage while protecting the validation record. It also makes future modernization decisions easier because the site knows which functions depend on which hardware.

Send the solver label, cabinet photographs, application role and required date to ZYPLC. We can help verify the matching spare, clarify its condition and prepare a quotation that supports the maintenance and functional-safety review.
