Omron CJ1M-CPU13 Replacement: Check Capacity and Project Data

Sep 26, 2026 5 min read PLC & I/O Systems

Plan an Omron CJ1M-CPU13 replacement by checking I/O capacity, memory, expansion racks, Ethernet suffix and a tested project backup before shutdown.

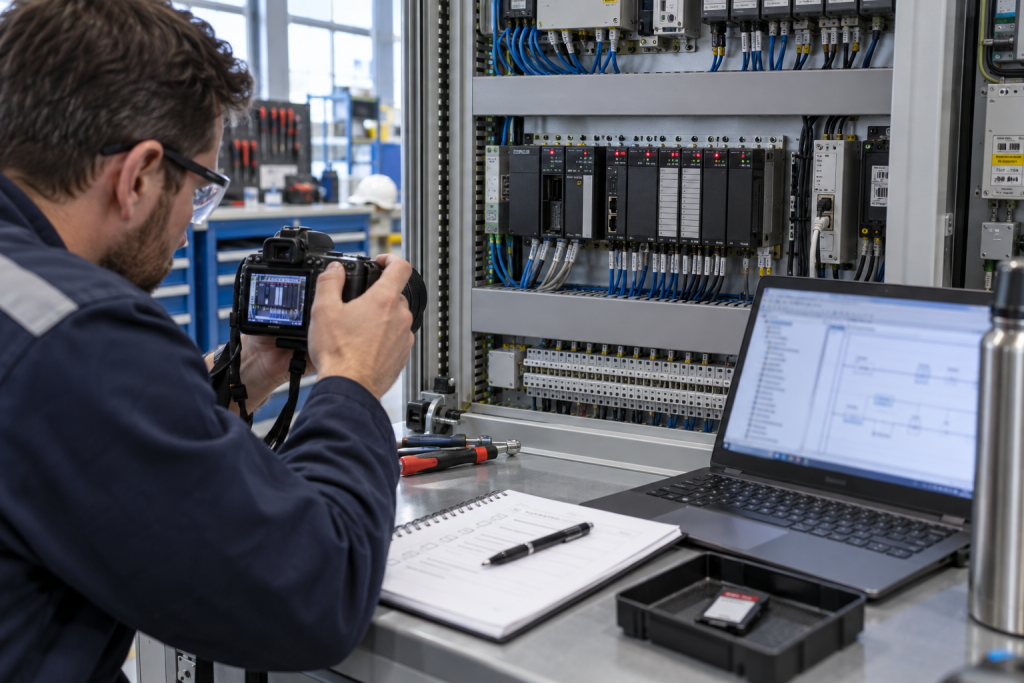

Omron CJ1M-CPU13 PLC rack and controller revision inventory in a bright workshop 2026

A controller change on a mature machine is rarely just a processor swap. The CPU determines program capacity, memory behavior, supported expansion, communications and timing assumptions that have accumulated in the running project. The Omron CJ1M-CPU13 is a specific member of the CJ1 family, and model suffixes matter. A spare that looks close in a catalog may not have the same built-in I/O, Ethernet function, unit version or application behavior. Begin with an inventory and backup exercise while the existing machine is still stable, not during the first production outage caused by a failed CPU.

Capture the complete installed configuration

Photograph the CPU nameplate and every unit in the rack. Record CPU model and unit version, power supply, I/O units, special and CPU-bus units, expansion rack, communication adapters, memory card, network addresses and the cable paths. Note controller error history and the last known-good program revision. Omron’s CJ1M documentation differentiates models by I/O points, program capacity, data memory, expansion-rack support and built-in functions. These differences can change what a replacement can execute even when the front panel and rack dimensions appear similar.

Check the CPU13 limits against the real project

Omron’s official CJ1M operation manual lists the CPU13 variant with 640 I/O points, 20K steps of program memory and 32K words of data memory; it also distinguishes the CPU13 from the CPU23 built-in-I/O model and from Ethernet-equipped -ETN versions. Treat those figures as a screening checklist, then confirm the unit version and exact manual for the installed controller. Review actual program use, I/O table, special-unit count, high-speed functions, retentive areas and communications. A listed maximum does not prove that the present application is portable without revalidation.

Do not use a close family number as a substitute

ZYPLC lists an Omron CJ1M-CPU13 CPU module and a separate CJ1G-CPU43H controller reference. These are different order codes and must not be treated as drop-in alternatives. Compare the exact model, I/O and memory requirements, built-in functions, unit version, expansion capability, programming software and communications before selecting a replacement. The catalog item can help identify a part to quote; the site engineer owns application fit and the change approval.

Make the backup restorable

Save the online project and controller data using the supported Omron tools and site version-control process. Capture PLC program, comments and symbols, I/O table, routing tables, network settings, special-unit parameters, data memory values and any retained recipes or machine constants that the process owner approves for backup. Record software version and communication method. Open the backup on a controlled engineering workstation and verify it is readable. A file that exists is not a recovery plan unless its dependencies, passwords, licenses, cables and restoration steps are also available.

Plan migration and rollback as separate work

For a planned replacement, map every signal and its physical terminal to the program address. Identify pulse, interrupt, positioning, serial and network functions whose timing or configuration may change. Define how current process values and retentive memory will be transferred, what must be initialized, and who authorizes each step. Keep the old CPU and a verified project snapshot available until the new controller passes the agreed functional tests. For a failed CPU, do not assume data in memory can be recovered; use the approved backup and follow the vendor procedure for any upload or restore.

Test the machine, not only the CPU status

After controlled installation, verify power-up diagnostics, rack recognition, communication links, I/O mapping, analog scaling, interlocks, alarm texts, sequence state and operator functions. Test representative operating modes and safety-related behaviors with production and safety teams present. Compare critical timing and handshake data against the old baseline. The related ZYPLC guide on Omron compact PLC I/O evidence before machine recovery covers field-side documentation; use it alongside the CPU inventory rather than assuming identical project constraints. Update the spare register, drawings, software archive and as-left revision before closing the work order.

Separate emergency recovery from lifecycle migration

A like-for-like CPU recovery and a platform modernization are different decisions with different approval, budget and validation needs. If a verified CJ1M-CPU13 spare restores a stable machine, document that recovery without implying that the obsolescence question has disappeared. Separately assess whether memory, communications, engineering-tool access or expansion limits threaten the next operating period. Estimate engineering effort, cabinet changes, software conversion, operator training and outage duration alongside hardware cost. This separation lets the team restore production under a controlled scope while giving management a realistic, evidence-based modernization request rather than an emergency proposal written during a breakdown.

Questions maintenance teams ask

Is CJ1M-CPU13 the same as CJ1M-CPU13-ETN?

No. The suffix identifies a different execution. Confirm the installed communications feature, unit version and applicable Omron manual before ordering.

Can a CJ1G CPU replace a CJ1M CPU directly?

Do not assume so. Compare program and data memory, I/O, expansion, built-in functions, software support, communications and the actual machine project.

Which data should be saved before a CPU replacement?

Preserve the project, I/O table, routing and network settings, special-unit parameters, approved retained values, tool versions and a tested restore procedure.

Does a successful CPU RUN light prove the machine is ready?

No. Verify application behavior, I/O, alarms, interlocks, communications and representative sequences under the approved commissioning plan.

For a CJ1M sourcing inquiry, send ZYPLC the complete CPU and unit-version labels, rack inventory, software version, project status, expansion details and shutdown date. We can help verify the exact catalog item and the documentation needed for your engineering decision.
