AB 1336F-MCB-SP1K PC Board 1336 PLUS

AB 1336F-MCB-SP1K PC Board for 1336 PLUS Automation

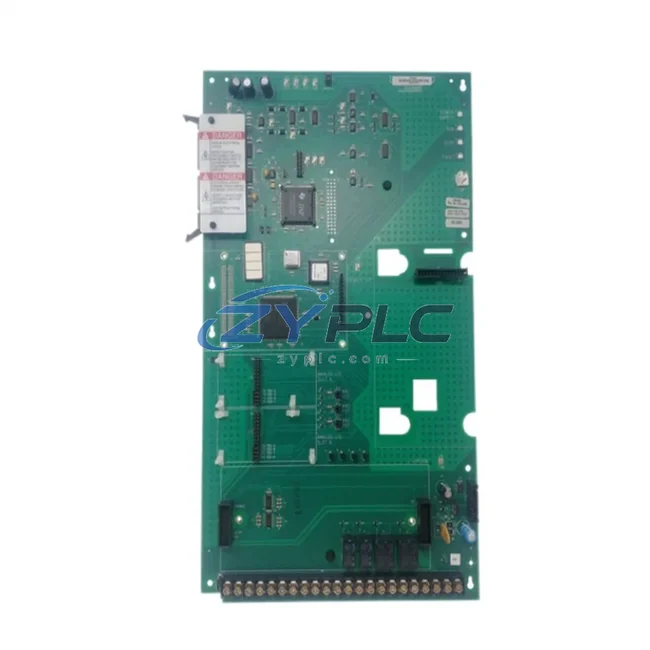

The Allen-Bradley 1336F-MCB-SP1K is the main control board engineered for the 1336 PLUS family of AC variable frequency drives (VFDs). In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, this control board serves as the intelligence layer that governs motor speed, torque response, and power delivery across the drive system. Replacing or restoring a failed 1336F-MCB-SP1K restores full closed-loop motor control, eliminates unplanned downtime, and returns the drive to its rated energy efficiency class — making it one of the most cost-effective interventions available for aging 1336 PLUS installations.

Every unit supplied by ZYPLC undergoes functional verification prior to shipment, including power-on testing, communication handshake validation, and output signal integrity checks. A warranty terms confirmed during quotation is included on all boards, backed by RFQ-confirmed sourcing and fast international dispatch.

Product Specification Table

System Compatibility and Application

The 1336F-MCB-SP1K does not operate in isolation — it is the decision-making core of a broader maintenance-focused drive architecture. In a typical 1336 PLUS installation, the MCB receives speed reference signals from a PanelView 800 or PanelView Plus 7 HMI terminal, processes operator commands, and translates them into precise PWM output patterns that govern the drive’s IGBT power stage. This closed-loop interaction between the control board and the power section is what enables the 1336 PLUS to deliver variable-speed motor control with significantly lower operating load compared to fixed-speed, across-the-line starters.

On the network side, the 1336F-MCB-SP1K communicates via the SCANport protocol, allowing seamless integration with 1203-GU6 DeviceNet adapters or 1203-USB gateway modules for parameter monitoring and remote diagnostics. When paired with a ControlLogix L7x or CompactLogix L3x controller running Studio 5000 Logix Designer, the drive can participate in coordinated motion sequences, respond to production scheduler commands, and report real-time operating load data back to the SCADA layer.

For energy metering at the panel level, many integrators deploy PowerMonitor 500 or PowerMonitor 5000 units alongside 1336 PLUS drives to capture kWh consumption per motor circuit. The data collected by these meters, combined with the drive’s internal fault and runtime logs accessible through the MCB, provides the foundation for site maintenance and reliability programs. When the 1336F-MCB-SP1K is functioning correctly, the drive’s slip compensation algorithm continuously adjusts output frequency to maintain motor shaft speed under varying load — a feature that directly reduces reactive power draw and improves power factor across the motor bus.

In multi-drive installations, the 1336F-MCB-SP1K can be configured to operate in follower mode, receiving speed trim signals from a master drive or from a 1756-OF8 analog output module. This architecture is common in tension-controlled winding lines, multi-pump pressure-boosting stations, and synchronized conveyor systems where energy is wasted when individual drives operate independently without load-sharing logic. The addition of a 1336-BRF dynamic braking resistor module, controlled through the MCB’s braking logic outputs, further recovers kinetic energy during deceleration cycles in high-inertia applications such as centrifuges and large fans.

I/O expansion via 1336-GM1 or compatible I/O option cards allows the MCB to interface with field sensors — including temperature probes, pressure transducers, and flow meters — enabling the drive to modulate motor speed in direct response to process variables rather than fixed setpoints. This process-responsive control strategy is one of the most effective methods for reducing operating load in pump and fan applications, where affinity laws dictate that a 20% reduction in motor speed yields approximately a 50% reduction in power demand.

Maintenance and Replacement Notes

In practice, a failed or degraded 1336F-MCB-SP1K forces plant operators into one of two costly situations: either the drive faults out and the motor stops entirely, halting the production line, or the drive defaults to a fixed-speed bypass mode that eliminates all variable-speed operational stability. Either outcome is expensive. Unplanned downtime on a bottleneck process can cost thousands of dollars per hour in lost throughput, while fixed-speed bypass operation on a large pump or fan motor can increase operating load by 30–60% compared to optimized VFD operation.

Restoring the 1336F-MCB-SP1K returns the drive to full closed-loop operation, re-enabling all programmed operational-efficiency features: optimized accel/decel ramps that reduce mechanical stress and inrush current, flux vector control that maintains motor efficiency across the speed range, and fault-logging that supports predictive maintenance scheduling. In water treatment facilities, for example, a properly functioning 1336 PLUS drive on a 75 kW pump motor — controlled by a healthy MCB — can reduce annual operating load by 40,000–80,000 kWh compared to a fixed-speed installation, depending on the duty cycle and system curve.

For maintenance teams managing aging 1336 PLUS fleets, stocking a spare 1336F-MCB-SP1K is a standard best practice. Mean time to repair (MTTR) drops from days — the typical lead time for a new drive — to under an hour when a tested spare board is on the shelf. ZYPLC maintains ready inventory of the 1336F-MCB-SP1K and ships with full test documentation, allowing maintenance engineers to swap the board with confidence and return the drive to service without waiting for OEM procurement cycles.

All boards are tested under load conditions prior to dispatch, with output verified across the full speed reference range. Shipment includes a test report summary and is covered by a warranty terms confirmed during quotation against defects in materials and workmanship. For high-volume or project-based procurement, ZYPLC offers consolidated shipping and volume pricing — contact the sales team for details.

Product Sourcing FAQ

Q1: Will replacing the 1336F-MCB-SP1K restore the drive’s operational-efficiency features?
Yes. The MCB is the control intelligence of the 1336 PLUS drive. Replacing a faulty board with a tested 1336F-MCB-SP1K restores all programmed functions including slip compensation, flux optimization, and programmable ramp profiles — all of which contribute directly to reduced operating load and improved motor efficiency.

Q2: Is the 1336F-MCB-SP1K compatible with all 1336 PLUS drive ratings?
The 1336F-MCB-SP1K is designed for the 1336 PLUS (1336F) series. Compatibility depends on the specific drive firmware version and hardware revision. ZYPLC recommends confirming your drive’s catalog number and series letter before ordering. Our technical team can assist with cross-referencing if needed.

Q3: What is the testing and quality process before shipment?
Every 1336F-MCB-SP1K unit is powered on and functionally tested prior to shipment. Testing includes communication interface verification, analog and digital I/O signal checks, and fault register inspection. A test summary is included with each shipment. All units are covered by a warranty terms confirmed during quotation from the date of delivery.

Q4: Can this board be used as a direct replacement without reprogramming the drive?
In most cases, yes — provided the replacement board matches the original firmware revision. Drive parameters stored in the 1336 PLUS are typically held in non-volatile memory on the MCB itself, so it is advisable to back up drive parameters using DriveExplorer or Studio 5000 Drive Executive before swapping the board. ZYPLC can advise on firmware matching and parameter backup procedures upon request.
