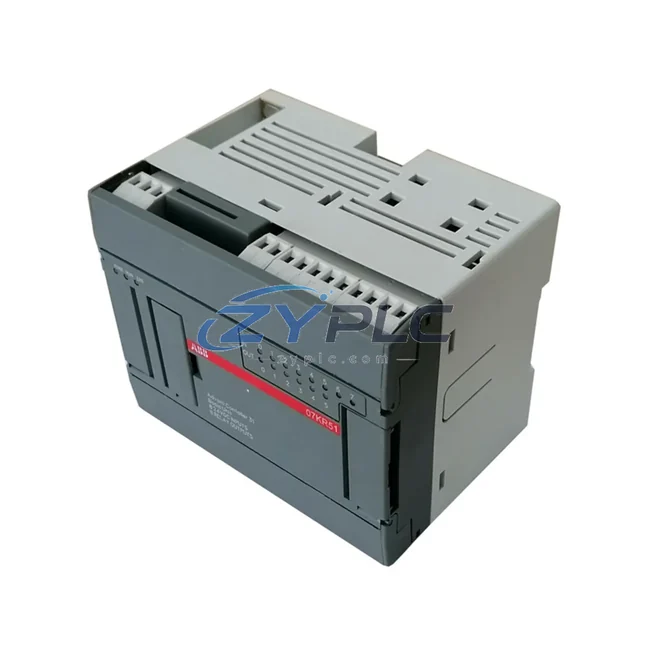

ABB 07KR51 CPU Module for AC31

ABB 07KR51 CPU Module for AC31: Compatibility and Replacement Notes

The ABB 07KR51 is a central processing unit module purpose-built for the ABB AC31 Advant Controller platform, one of the most widely deployed modular PLC families in industrial automation. Rather than functioning as a standalone component, the 07KR51 occupies the command layer of a layered control architecture, coordinating signal acquisition, logic execution, and communication across every tier of the system. Understanding its role within the full control hierarchy — from field-level I/O to supervisory SCADA — is essential for engineers designing reliable, scalable, and maintainable automation systems.

In a complete AC31-based control system, the 07KR51 CPU module sits at the heart of the controller rack, interfacing directly with the system backplane to exchange data with adjacent I/O modules, power supply units, and communication processors. Its deterministic scan cycle ensures that process variables are read, logic is evaluated, and outputs are updated within defined time windows, which is a non-negotiable requirement in process-critical environments such as power distribution, water treatment, and continuous manufacturing lines.

Product Specification Table

System Compatibility Notes

The 07KR51 CPU module achieves its full potential only when integrated within a properly configured AC31 system rack. At the power layer, the ABB 07PS51 or equivalent AC31 power supply module provides regulated 24 VDC to the backplane, ensuring stable voltage delivery to the CPU and all adjacent modules under varying load conditions. Engineers specifying this system should verify that the power supply’s current rating accommodates the full complement of installed I/O modules, particularly when high-density digital output modules such as the ABB 07DO51 are included in the rack.

At the I/O layer, the 07KR51 communicates with digital input modules (e.g., ABB 07DI51), analog input modules (e.g., ABB 07AI51), and analog output modules (e.g., ABB 07AO51) through the AC31 backplane bus. This tight coupling eliminates the latency associated with remote I/O networks in smaller systems, making the architecture well-suited for high-speed discrete control and closed-loop analog regulation. For applications requiring remote I/O expansion beyond the local rack, the ABB 07CS51 communication module enables PROFIBUS DP connectivity, allowing the 07KR51 to act as a PROFIBUS master and address distributed I/O stations across the plant floor.

At the human-machine interface layer, the 07KR51 supports connection to ABB-compatible operator panels and third-party HMI terminals via serial communication ports. Integration with panel PCs or SCADA workstations running ABB’s Control Builder or compatible OPC-DA/OPC-UA servers enables real-time visualization, alarm management, and historical data logging. For installations requiring redundant CPU operation, the AC31 platform supports hot-standby configurations using paired CPU modules with synchronization via dedicated redundancy links, significantly reducing unplanned downtime in mission-critical processes.

Terminal modules and marshalling components within the control cabinet — including DIN rail-mounted terminal blocks and surge protection assemblies — complete the signal path from field instruments to the CPU. Proper cable segregation, shielding, and grounding practices at this layer are essential to maintaining signal integrity, particularly in electrically noisy environments such as variable frequency drive (VFD) panels or high-voltage switchgear rooms. The 07KR51’s robust noise immunity specifications make it a reliable choice for such demanding installations.

Industrial Application Notes

The ABB 07KR51 CPU module has been deployed across a broad spectrum of industrial sectors, each presenting unique demands on control system architecture:

Power Generation and Distribution: In substation automation and power plant auxiliary systems, the 07KR51 manages interlocking logic for switchgear, motor control centers, and transformer protection schemes. Its deterministic scan cycle and reliable serial communication support integration with protection relays and maintenance planning systems.

Water and Wastewater Treatment: Municipal water authorities rely on AC31-based systems for pump station control, chemical dosing, and filtration process management. The 07KR51’s ability to handle both analog PID loops and discrete sequencing logic within a single CPU makes it ideal for multi-variable process control in these environments.

Oil, Gas, and Petrochemical: In upstream and midstream applications, the 07KR51 controls compressor stations, pipeline valve sequencing, and separator control. Its compatibility with PROFIBUS DP field devices — including smart transmitters and positioners — enables full digital integration of the field instrument layer.

Mining and Metallurgy: Conveyor systems, crusher controls, and flotation cell management in mining operations benefit from the 07KR51’s rugged design and modular expandability. The ability to add I/O modules without replacing the CPU preserves capital investment as production capacity grows.

Packaging and Discrete Manufacturing: High-speed packaging lines and assembly systems use the 07KR51 for motion sequencing, reject handling, and production counting. Integration with servo drives and vision systems via communication modules extends the CPU’s reach into advanced manufacturing automation.

Across all these applications, the 07KR51’s long service life, broad spare parts availability, and warranty terms confirmed during quotation from ZYPLC provide plant engineers with the confidence to specify this module for both new installations and legacy system maintenance projects.

Product Compatibility FAQ

Q1: Is the ABB 07KR51 compatible with newer ABB PLC platforms such as the AC500 series?
The 07KR51 is designed specifically for the AC31 / Advant Controller 31 platform and is not directly interchangeable with the AC500 series, which uses a different hardware architecture, programming environment (Automation Builder / CoDeSys), and I/O bus system. However, in hybrid installations, AC31 and AC500 systems can coexist and exchange data via PROFIBUS DP or Modbus serial links, allowing phased migration without full system replacement. Engineers planning upgrades should conduct a full I/O and program audit before committing to a migration path.

Q2: What installation and commissioning considerations apply when integrating the 07KR51 into an existing AC31 rack?
When inserting the 07KR51 into an existing rack, the system must be powered down completely before module insertion to prevent backplane bus damage. After installation, the CPU requires configuration of station address, baud rate, and I/O module mapping using ABB’s 907 PC programming software or equivalent. Engineers should verify that the firmware version of the 07KR51 is compatible with the existing I/O modules and communication processors in the rack. A cold-start sequence should be performed after initial configuration to ensure all modules are correctly recognized and initialized.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and how does it support long-term maintenance planning?
All ABB 07KR51 units supplied by ZYPLC are fully tested under operational conditions prior to shipment and are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. This warranty supports plant maintenance teams by providing a defined replacement guarantee period, reducing the financial risk associated with sourcing legacy spare parts. For facilities operating under planned maintenance schedules, ZYPLC also maintains buffer stock of AC31-compatible modules, enabling rapid deployment in the event of unplanned failures. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for warranty claims or advance replacement arrangements.
