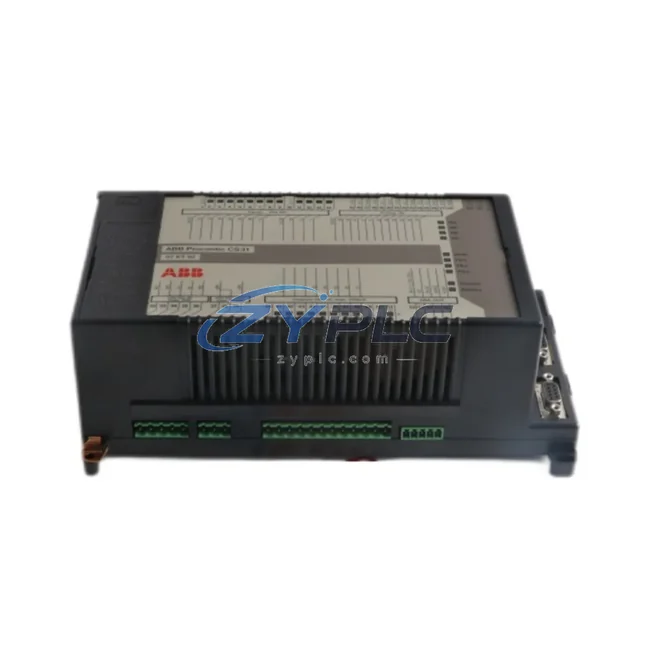

ABB 07KT92 GJR5250500R0202 CPU for Advant OCS

ABB 07KT92 GJR5250500R0202 CPU for Advant OCS Control System

The ABB 07KT92 (GJR5250500R0202) is a high-performance central processing unit engineered specifically for the Advant OCS (Open Control System) platform — one of ABB’s most widely deployed distributed control architectures in heavy industry. Rather than functioning as a standalone component, the 07KT92 serves as the computational backbone of a layered automation system, coordinating signal acquisition, logic execution, inter-module communication, and supervisory data exchange across every tier of the control hierarchy. Understanding its role within the full system architecture is essential for engineers designing, expanding, or maintaining Advant OCS installations.

Product Specification Table

System Compatibility Notes

In a fully integrated Advant OCS installation, the 07KT92 CPU module does not operate in isolation. Its value is realized through tight coordination with upstream and downstream components across every functional layer of the automation system.

At the power layer, the 07KT92 relies on stable DC bus supply delivered by ABB’s dedicated power supply modules such as the 07DC91 / GJR5250600R0101 or the 07DC92 series. These units provide regulated 24 VDC to the subrack backplane, ensuring that the CPU and all co-resident I/O modules receive clean, transient-free power — a prerequisite for deterministic scan cycle execution in process-critical environments.

At the I/O layer, the 07KT92 interfaces directly with analog and digital I/O modules mounted in the same S100 or S800 subrack. Modules such as the 07AA61 (AI module), 07AB61 (AO module), 07BA61 (DI module), and 07BB61 (DO module) feed real-time field signals — temperature, pressure, flow, valve position, motor status — into the CPU’s scan cycle. The 07KT92 processes these inputs against the resident control program and issues output commands within each deterministic cycle, maintaining tight closed-loop control across the process.

At the network and communication layer, the 07KT92 connects to the plant-wide control network via MasterBus 300 — ABB’s proprietary high-speed fieldbus — enabling peer-to-peer communication with other Advant OCS controllers, SCADA systems, and engineering workstations. For installations requiring integration with third-party field devices, communication gateways such as the CI522A PROFIBUS-DP coupler or CI532V Modbus gateway extend the 07KT92’s reach to distributed sensor networks, variable frequency drives, and remote I/O clusters without compromising the integrity of the primary control bus.

At the human-machine interface layer, operator stations running ABB’s Advant Station 500 Series or compatible OPC-DA clients connect to the 07KT92’s data server, providing real-time process visualization, alarm management, and trend logging. The CPU’s data table is continuously mirrored to the HMI layer, ensuring that operators have accurate, low-latency visibility into system state — a critical requirement in power generation, chemical processing, and water treatment applications.

For installations requiring redundancy, the 07KT92 can be paired with a hot-standby CPU module in a redundant controller configuration. In this architecture, the primary and standby CPUs synchronize their data tables continuously via a dedicated redundancy link. Upon detection of a primary CPU fault, the standby module assumes control within milliseconds, maintaining process continuity without operator intervention. This capability is particularly valued in oil and gas, nuclear auxiliary systems, and continuous manufacturing lines where unplanned downtime carries significant financial and safety consequences.

The 07KT92’s backplane slot architecture also supports coexistence with specialty modules such as the 07KP62 communication processor for high-throughput data exchange and the 07LE61 Ethernet interface module for integration with plant information networks. Together, these components form a cohesive, scalable control node that can be expanded incrementally as process requirements evolve — without requiring a full system redesign.

Industrial Application Notes

The 07KT92 has been deployed across a broad spectrum of industrial sectors, each presenting unique demands on control system architecture:

Power Generation and Utilities: In thermal and hydroelectric power plants, the 07KT92 manages turbine governor control, boiler feedwater regulation, and auxiliary system sequencing. Its deterministic scan cycle and MasterBus 300 connectivity ensure that control actions are executed within the tight timing windows required by grid-synchronization and load-dispatch protocols.

Oil, Gas, and Petrochemical: Refinery and upstream processing facilities rely on the 07KT92 for compressor anti-surge control, separator level management, and emergency shutdown system integration. The module’s robust operating temperature range and compatibility with PROFIBUS-DP field devices make it well-suited for hazardous area control panels and remote wellhead automation.

Water and Wastewater Treatment: Municipal water authorities deploy the 07KT92 in pump station automation, chemical dosing control, and SCADA-integrated monitoring networks. Its long service life and availability of spare modules through specialist distributors such as ZYPLC reduce the risk of extended downtime in critical public infrastructure.

Mining and Metallurgy: Ore processing plants and smelting operations use the 07KT92 to coordinate conveyor sequencing, crusher load management, and furnace temperature control. The module’s compatibility with the S800 I/O subrack allows high channel-count configurations that match the dense I/O requirements of mineral processing lines.

Packaging and Discrete Manufacturing: High-speed packaging lines and assembly systems benefit from the 07KT92’s fast scan cycle and modular I/O expansion, enabling precise motion coordination, reject handling, and production count reporting within a unified Advant OCS architecture.

Product Compatibility FAQ

Q1: Is the 07KT92 GJR5250500R0202 compatible with both S100 and S800 I/O subracks?
The 07KT92 is designed for the Advant OCS platform and is compatible with ABB’s S100 I/O subrack family. Integration with S800 I/O requires the use of appropriate communication couplers (e.g., CI854 or CI522A) to bridge the two subrack architectures. Engineers should verify backplane slot assignments and power budgets before mixing subrack generations in a single control cabinet.

Q2: Can the 07KT92 be used in a redundant CPU configuration, and what additional hardware is required?
Yes. Redundant CPU configurations using the 07KT92 require a matched pair of CPU modules, a dedicated redundancy synchronization cable, and compatible redundancy software loaded on both units. The primary and standby CPUs must share identical firmware versions and program databases. ZYPLC can supply matched pairs with pre-verified firmware compatibility as part of a warranty terms confirmed during quotation package, reducing commissioning risk for new redundant installations.

Q3: What is the recommended approach for long-term maintenance and spare parts management for Advant OCS systems using the 07KT92?
Given that the Advant OCS platform is a mature architecture, proactive spare parts stocking is the most effective long-term maintenance strategy. ZYPLC maintains inventory of the 07KT92 and associated modules — including power supplies, I/O cards, and communication processors — with each unit covered by a warranty terms confirmed during quotation and subjected to full functional testing prior to dispatch. system integration support is available to assist engineers with firmware verification, system documentation review, and drop-in replacement planning, minimizing the expertise burden on in-house maintenance teams.
