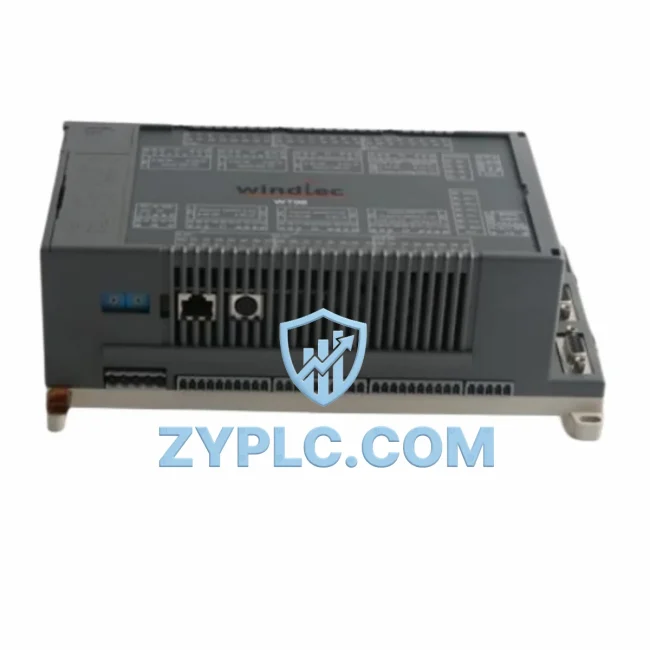

ABB 07KT98 WT98 GJR5253100R0270 Ethernet Gateway AC500

ABB 07KT98 WT98 GJR5253100R0270: Industrial Ethernet Gateway for AC500 Data Link Architecture

The ABB 07KT98 WT98 (GJR5253100R0270) is a high-performance Ethernet Communication Gateway engineered for the ABB AC500 PLC platform. Designed to bridge field-level devices and upper-level control systems, this module serves as a critical node in the industrial data chain — enabling seamless protocol conversion, real-time data transmission, and transparent network integration across complex automation environments. Whether deployed in discrete manufacturing, process control, or smart factory infrastructure, the 07KT98 WT98 delivers the connectivity backbone that modern industrial sites demand.

In today’s converging OT/IT landscape, data isolation remains one of the most persistent challenges on the plant floor. The ABB 07KT98 WT98 directly addresses this by providing a standards-compliant Ethernet interface that connects the AC500 CPU modules — such as the PM573, PM583, and PM595 — to higher-level SCADA platforms, MES systems, and cloud-based analytics engines. Its robust communication stack supports deterministic data exchange, making it suitable for time-sensitive control loops and high-frequency monitoring applications alike.

Network Communication Table

Connected Automation Data Flow

The ABB 07KT98 WT98 sits at the heart of a layered industrial communication architecture. At the field level, sensors, actuators, and distributed I/O modules — including ABB’s own TU515 and TU531 terminal units — feed process data upward through the AC500 backplane. The 07KT98 WT98 gateway module then encapsulates this data into Ethernet frames, routing it across the plant network to supervisory systems with minimal latency.

In a typical smart factory deployment, the AC500 CPU (such as the PM583-ETH or PM595) handles local logic execution while the 07KT98 WT98 manages the uplink to SCADA platforms like ABB System 800xA or third-party solutions running on standard industrial PCs. This separation of control and communication responsibilities ensures that network traffic does not interfere with deterministic PLC scan cycles — a critical requirement in high-speed packaging, press control, and conveyor automation.

The gateway also plays a pivotal role in HMI integration. Panel-mounted HMI terminals — whether ABB CP600 series or third-party units from Siemens or Weintek — connect via Ethernet to poll real-time process variables, alarm states, and production counters directly from the AC500 controller. The 07KT98 WT98 ensures that this data exchange is reliable, low-latency, and immune to the packet collisions that can plague unmanaged network topologies.

For remote I/O expansion, the module supports communication with ABB’s S500 I/O modules distributed across the production line. Field signals from proximity sensors, pressure transmitters, and variable frequency drives (VFDs) — including ABB ACS580 and ACS880 series drives — are aggregated at remote I/O nodes and transmitted back to the AC500 CPU via the Ethernet backbone managed by the 07KT98 WT98. This architecture eliminates the need for long home-run wiring, reduces installation costs, and dramatically improves system scalability.

Edge computing integration is another key application. Industrial edge gateways — such as ABB Ability Edge or compatible third-party devices — can subscribe to data streams published by the AC500 through the 07KT98 WT98, enabling local analytics, anomaly detection, and OEE calculation without burdening the central SCADA server. This positions the 07KT98 WT98 as a foundational component in IIoT-ready factory architectures.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with a patchwork of legacy controllers, proprietary fieldbus networks, and isolated data islands that prevent plant-wide visibility. The ABB 07KT98 WT98 directly resolves these integration challenges by providing a standardized Ethernet interface that speaks the language of modern industrial networks.

Protocol Unification: Legacy Modbus RTU devices on the plant floor can be bridged to the Ethernet backbone through the AC500’s communication stack, with the 07KT98 WT98 serving as the Ethernet-side termination point. This allows older instrumentation — flow meters, temperature controllers, and motor protection relays — to participate in the plant-wide data network without costly hardware replacement.

Production Line Transparency: By connecting the AC500 to SCADA and MES platforms, the 07KT98 WT98 enables real-time KPI dashboards, shift production reports, and automated alarm escalation. Operators gain instant visibility into cycle times, reject rates, and equipment utilization — data that was previously locked inside standalone PLCs.

Remote Diagnostics and Predictive Maintenance: With Ethernet connectivity established through the 07KT98 WT98, maintenance engineers can remotely access AC500 diagnostic data, monitor drive health parameters from ACS series VFDs, and receive predictive alerts before equipment failures occur. This capability is especially valuable for multi-site operations where on-site response time is costly.

System Scalability: The modular architecture of the AC500 platform, combined with the Ethernet gateway capability of the 07KT98 WT98, allows production lines to scale incrementally. New I/O modules, additional HMI stations, or expanded SCADA nodes can be added to the network without redesigning the communication infrastructure — protecting the original capital investment.

Outgoing Test and Quality Assurance: Every ABB 07KT98 WT98 unit supplied by ZYPLC undergoes functional communication testing prior to shipment. Network connectivity, protocol handshake verification, and data integrity checks are performed to ensure the module arrives ready for immediate installation. Combined with our 12-month warranty, this gives procurement and engineering teams full confidence in every unit sourced.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 07KT98 WT98 support?
The 07KT98 WT98 supports Ethernet TCP/IP and Modbus TCP as primary communication protocols, operating within the ABB AC500 PLC ecosystem. It is compatible with standard industrial Ethernet infrastructure and can interface with SCADA, HMI, and MES systems that support these protocols. For PROFINET or EtherNet/IP environments, additional gateway modules within the AC500 range may be required.

Q2: Is the 07KT98 WT98 compatible with third-party SCADA and HMI systems?
Yes. Because the module communicates over standard Ethernet TCP/IP and Modbus TCP, it is compatible with a wide range of third-party SCADA platforms — including Wonderware, Ignition, and WinCC — as well as HMI terminals from multiple manufacturers. OPC-UA connectivity can be achieved through the AC500 CPU’s software stack, further broadening system integration options.

Q3: What is the typical communication latency for real-time data exchange?
In a properly configured industrial Ethernet network with managed switches and appropriate QoS settings, the 07KT98 WT98 supports deterministic data exchange with cycle times aligned to the AC500 PLC scan rate. For most process monitoring and supervisory applications, end-to-end latency is well within acceptable limits. High-speed motion control applications should be evaluated against the specific AC500 CPU model’s communication specifications.

Q4: Does ZYPLC provide a warranty and pre-shipment testing for the 07KT98 WT98?
Yes. All ABB 07KT98 WT98 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and communication failures. Each unit undergoes pre-shipment functional testing including Ethernet link verification and protocol communication checks. Expedited shipping options are available for urgent project requirements, and our technical team can provide installation guidance and compatibility support.

—
