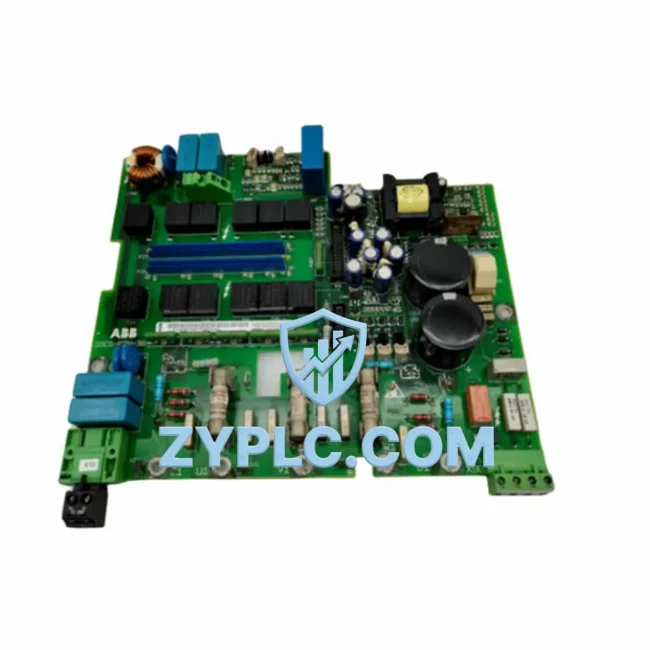

ABB 086318-001 Central Unit for IRC5

ABB 086318-001 Central Unit for IRC5: Control System Coordination and Upstream-Downstream Synergy

The ABB 086318-001 Central Unit Module is the computational and coordination core of the IRC5 robot controller platform, engineered to manage motion control, process sequencing, I/O arbitration, and inter-system communication across multi-axis robotic installations. Rather than functioning as a standalone component, the 086318-001 occupies a critical position within a layered automation architecture — bridging the control layer, I/O layer, communication network, power distribution layer, and human-machine interface into a unified, deterministic system. For system integrators, OEM builders, and maintenance engineers working within ABB IRC5 environments, this module represents the architectural anchor around which all other subsystems are coordinated.

In modern industrial automation, the central unit is not merely a processor — it is the system’s decision-making hub. The ABB 086318-001 manages real-time task execution, axis interpolation, and safety signal arbitration while simultaneously maintaining communication with upstream SCADA or DCS platforms and downstream servo drives and I/O modules. Its role in ensuring system consistency, reducing latency between control commands and mechanical response, and supporting redundant architecture configurations makes it indispensable in high-availability production environments.

Product Specification Table

System Compatibility Notes

The ABB 086318-001 does not operate in isolation. Its value is fully realized when integrated within a complete IRC5 control architecture, where each layer contributes to system-wide determinism, fault tolerance, and operational continuity. The following describes how this central unit coordinates with key system components across all automation layers:

Control Layer: The 086318-001 works in direct coordination with the DSQC1000 main computer board, which handles the high-level RobotWare operating environment. Together, these two modules form the computational core of the IRC5 controller, with the central unit managing lower-level real-time control tasks while the main computer handles program execution, path planning, and operator interface logic. In multi-robot or coordinated motion applications, the central unit also interfaces with the DSQC609 axis computer to synchronize multi-axis interpolation across robot arms or external axes.

Power Layer: Stable power delivery is essential for the 086318-001 to maintain deterministic control cycles. The module receives regulated DC power from the IRC5 internal power supply units, typically the DSQC661 or DSQC662 power distribution boards. Any instability in the power layer — voltage ripple, transient spikes, or supply sequencing errors — directly impacts the central unit’s ability to maintain consistent control loop timing. Engineers specifying replacement or upgrade scenarios should verify power supply compatibility before commissioning.

I/O Layer: The 086318-001 manages I/O arbitration across the IRC5 I/O system, which may include DSQC651 digital I/O modules, DSQC652 analog I/O boards, and DSQC377B conveyor tracking units. In process-intensive applications such as arc welding, dispensing, or machine tending, the central unit coordinates I/O signal timing with robot motion to ensure precise synchronization between mechanical action and process activation. The I/O layer’s reliability is directly dependent on the central unit’s ability to process and respond to field signals within defined cycle times.

Communication and Network Layer: The IRC5 platform supports multiple industrial communication protocols, and the 086318-001 plays a central role in managing network-layer data exchange. Whether the system uses EtherNet/IP for integration with Allen-Bradley PLCs, PROFIBUS DP for legacy field device connectivity, or DeviceNet for distributed I/O, the central unit serves as the protocol arbitration point. In facilities where ABB robots operate alongside Siemens S7-series PLCs or Rockwell ControlLogix systems, the central unit’s communication management capability is critical for maintaining data integrity and command latency within acceptable bounds.

Human-Machine Interface Layer: The FlexPendant (IRC5 teach pendant) communicates with the robot controller through a dedicated USB/Ethernet interface managed by the central unit. Operator commands, program modifications, and safety acknowledgments all pass through the 086318-001 before being executed at the motion control level. In installations using ABB RobotStudio for offline programming and virtual commissioning, the central unit’s firmware version must be compatible with the RobotWare release to ensure seamless program transfer and execution.

Execution and Drive Layer: At the output end of the control chain, the 086318-001 coordinates with the IRC5 drive system — including the DSQC668 drive unit and associated axis boards — to deliver precise torque and velocity commands to servo motors. The central unit’s motion interpolation algorithms determine the smoothness of robot trajectories, the accuracy of TCP (Tool Center Point) positioning, and the repeatability of programmed paths across production cycles.

Industrial Application Notes

Automotive Manufacturing: In automotive body-in-white welding lines, the ABB 086318-001 serves as the control core for spot welding robots operating in synchronized multi-robot cells. The central unit coordinates weld gun actuation timing, robot path execution, and conveyor tracking signals, ensuring consistent weld quality across high-volume production cycles. Its ability to maintain deterministic control in environments with significant electromagnetic interference from welding equipment makes it particularly well-suited for this application.

Electronics and Semiconductor Assembly: In precision electronics assembly lines, where component placement tolerances are measured in fractions of a millimeter, the 086318-001’s motion control accuracy is critical. The central unit manages high-speed pick-and-place sequences, vision system integration signals, and conveyor synchronization, enabling robots to maintain throughput rates without sacrificing placement accuracy.

Food and Beverage Packaging: Hygienic production environments require control systems that can operate reliably under frequent washdown cycles and temperature fluctuations. The IRC5 platform, anchored by the 086318-001 central unit, supports packaging line robots performing case packing, palletizing, and product orientation tasks. The central unit’s robust signal processing ensures consistent performance even as ambient conditions vary throughout production shifts.

Petrochemical and Process Industries: In hazardous area applications where robots perform inspection, valve actuation, or material handling tasks in classified zones, the IRC5 controller’s safety architecture — managed through the 086318-001 — provides the functional safety integration required by IEC 61508 and IEC 62061 standards. The central unit coordinates safety-rated I/O signals, emergency stop logic, and protective stop functions across the robot system.

Metal Fabrication and Welding: Arc welding and plasma cutting applications demand precise coordination between robot motion and process parameters. The 086318-001 manages the synchronization between robot TCP velocity, wire feed rate signals, and arc voltage feedback, enabling consistent weld bead geometry across complex three-dimensional joint profiles. In tandem welding configurations, the central unit coordinates multiple welding processes simultaneously.

Product Compatibility FAQ

Q1: Is the ABB 086318-001 compatible with all IRC5 controller variants, including IRC5 Compact and IRC5 Panel Mounted Controller configurations?

The 086318-001 is designed for the IRC5 platform family. Compatibility with specific IRC5 variants — including the standard single-cabinet IRC5, IRC5 Compact, and IRC5 Panel Mounted Controller — depends on the RobotWare version and hardware revision of the existing controller. Before installation, engineers should verify the hardware revision of the 086318-001 against the controller’s existing main computer board (DSQC1000) and drive system to ensure full architectural compatibility. ZYPLC’s technical team can assist with compatibility verification prior to order confirmation.

Q2: What commissioning steps are required when replacing the 086318-001 central unit in an existing IRC5 system, and how does this affect system calibration data?

Replacing the central unit in an IRC5 system requires careful attention to system configuration data, including robot calibration parameters, I/O configuration, and network settings. Prior to replacement, engineers should back up the complete system configuration using RobotStudio or the FlexPendant backup function. After installing the 086318-001, the system will require restoration of the backed-up configuration, followed by verification of robot calibration data (revolution counter values and fine calibration offsets). In most cases, a full recalibration is not required if calibration data is properly preserved and restored. ZYPLC recommends consulting ABB’s IRC5 service documentation for the specific RobotWare version in use.

Q3: What does the 12-Month Warranty from ZYPLC cover for the ABB 086318-001, and what support is available for long-term maintenance planning?

ZYPLC’s 12-Month Warranty on the ABB 086318-001 covers manufacturing defects and functional failures under normal operating conditions as specified for the IRC5 platform. The warranty period begins from the date of shipment. For long-term maintenance planning, ZYPLC maintains stock of critical IRC5 spare parts — including central units, drive boards, power supplies, and I/O modules — to support rapid replacement in the event of unplanned downtime. Customers with multi-robot installations or critical production lines are encouraged to discuss consignment stock arrangements or priority supply agreements with ZYPLC’s sales team to minimize exposure to lead time risk.
