ABB 086362-001 Industrial Network Interface for DSQC Systems

ABB 086362-001 Industrial Network Interface for DSQC Systems: Powering the Smart Factory Data Link

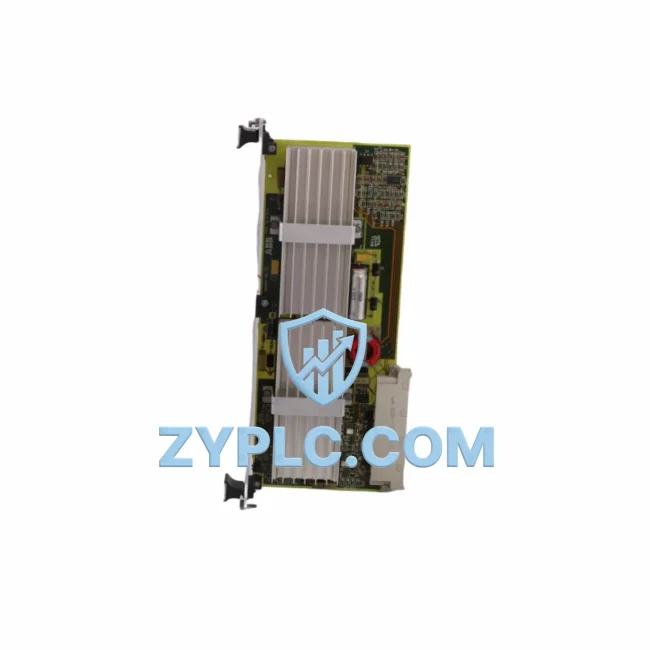

The ABB 086362-001 is a precision-engineered power supply board designed for the DSQC series of ABB industrial controllers, serving as a foundational hardware node in the industrial data chain. In modern smart factory environments, reliable power delivery to communication-critical modules is not merely a hardware concern — it is the backbone of uninterrupted data flow between field devices, PLC controllers, remote I/O stations, HMI panels, SCADA systems, drives, sensors, and upper-level supervisory networks. The 086362-001 ensures that every layer of this communication architecture receives stable, conditioned power, enabling continuous protocol exchange and real-time monitoring across the production floor.

Within ABB’s IRC5 and S4C+ robot controller ecosystems, the DSQC power supply board interfaces directly with communication modules such as the ABB DSQC 503 (DeviceNet gateway) and the ABB DSQC 378B (fieldbus adapter), providing the regulated voltage rails these modules require to sustain uninterrupted Profibus-DP, DeviceNet, and EtherNet/IP protocol transactions. When the 086362-001 is operating correctly, signal acquisition from field-level sensors — including proximity switches, encoders, and pressure transducers — flows without interruption through the I/O bus to the robot controller’s CPU, and from there upward to SCADA and MES platforms via OPC-UA or Modbus TCP gateways.

Network Communication Table

Connected Automation Data Flow

The ABB 086362-001 sits at the heart of a layered automation architecture. Consider a typical smart factory cell: a series of ABB IRB 6700 robot arms are coordinated by an IRC5 controller, which relies on the DSQC power supply board to energize its internal communication backplane. The ABB DSQC 652 digital I/O board, powered through this backplane, reads discrete signals from safety light curtains and pneumatic valve feedback sensors. Simultaneously, the ABB DSQC 688 Ethernet module transmits real-time joint position data and alarm states over EtherNet/IP to a Siemens S7-1500 PLC acting as the cell coordinator.

From the PLC, aggregated production data travels via Profibus-DP to a Moxa NPort 5150 serial device server, which bridges legacy RS-485 instruments — such as torque sensors and barcode readers — into the Ethernet backbone. An ABB AC500 PLC in the adjacent control cabinet collects this data and forwards it via Modbus TCP to a Wonderware InTouch SCADA server, where operators monitor cycle times, fault codes, and energy consumption in real time. Remote diagnostic access is provided through an HMS Anybus X-gateway, which translates between the factory’s EtherNet/IP network and a cloud-based OPC-UA endpoint, enabling engineers to perform remote parameter adjustments and predictive maintenance analysis without physical site access.

Throughout this entire data chain — from the sensor signal at the robot’s wrist to the dashboard on the engineer’s remote workstation — the ABB 086362-001 power supply board ensures that every communication module in the DSQC controller stack receives clean, stable power. A voltage ripple or dropout at this level would cascade into communication timeouts, I/O read errors, and ultimately production stoppages. This is why sourcing a genuine, tested 086362-001 board from a reliable supplier is a critical procurement decision for maintenance engineers and system integrators alike.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate on incompatible protocols or aging hardware that cannot be integrated into modern IIoT architectures. The ABB 086362-001 directly addresses this challenge by restoring full functionality to DSQC-series controllers that have suffered power supply failures, which are among the most common causes of communication blackouts in ABB robot cells.

When a DSQC power supply board fails, the entire communication stack goes dark: Profibus-DP slaves stop responding, DeviceNet nodes drop off the network, and the SCADA system loses visibility into the affected cell. Production supervisors are left with no real-time data, no alarm feedback, and no remote diagnostic capability. Replacing the 086362-001 with a tested, genuine board immediately restores the data link, re-establishes protocol communication, and returns the cell to full transparency within the plant’s MES and SCADA infrastructure.

For system integrators managing multi-vendor environments — where ABB robots coexist with Siemens, Fanuc, or Mitsubishi controllers — maintaining a spare inventory of critical power supply boards like the 086362-001 is a proven strategy for minimizing mean time to repair (MTTR) and protecting production uptime. ZYPLC maintains ready stock of the ABB 086362-001, with pre-shipment functional testing and a 12-month warranty, ensuring that replacement boards arrive ready to install and communicate from day one.

Industrial Connectivity FAQ

Q1: Will the ABB 086362-001 cause communication delays after installation?
No. The 086362-001 is a power supply board, not a protocol processing unit. Once installed and powered, it restores stable voltage to all DSQC communication modules immediately. Communication latency on Profibus-DP, DeviceNet, or EtherNet/IP networks is determined by the protocol configuration and network load, not by the power supply board itself. A properly functioning 086362-001 eliminates power-related communication instability.

Q2: Is the 086362-001 compatible with both IRC5 and S4C+ controller platforms?
The ABB 086362-001 is designed for the DSQC series backplane architecture. Compatibility with specific controller generations (IRC5, S4C+) should be verified against the controller’s hardware revision and the DSQC module configuration. ZYPLC’s technical team can assist with cross-referencing your controller’s BOM to confirm fitment before shipment.

Q3: How does ZYPLC ensure network stability after replacing the power supply board?
Every ABB 086362-001 unit shipped by ZYPLC undergoes pre-shipment functional testing to verify output voltage levels, ripple performance, and connector integrity. This ensures that the replacement board will not introduce new instability into the communication network. Combined with our 12-month warranty, you can integrate the board with confidence.

Q4: Can the system be expanded after replacing the 086362-001?
Yes. Restoring a functional DSQC power supply board returns the controller to its full designed capacity, including support for additional I/O modules, fieldbus adapters, and communication gateways within the DSQC backplane’s slot and power budget. System expansion — such as adding an ABB DSQC 503 DeviceNet gateway or a DSQC 378B fieldbus adapter — can proceed normally once the power supply is confirmed stable.
