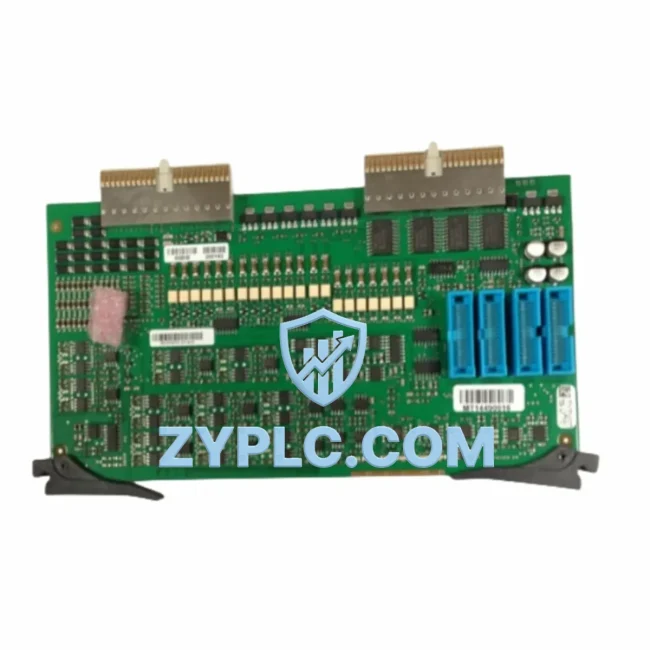

ABB 086384-001 Drive Control Board for ACS Series Systems

ABB 086384-001: Industrial Data Link and Smart Factory Connectivity for ACS Series Drive Systems

The ABB 086384-001 is a drive control board engineered for the ACS Series variable frequency drive platform, serving as a critical node in the industrial data chain that connects field-level drive equipment to upper-level control, monitoring, and diagnostic systems. In modern smart factory environments, the ability to transmit real-time drive status, fault codes, speed references, torque feedback, and energy consumption data across a unified network architecture is no longer optional — it is the foundation of operational transparency and predictive maintenance. The ABB 086384-001 fulfills this role by providing stable, protocol-compatible communication between the ACS Series drive and the broader automation ecosystem, including PLCs, SCADA platforms, HMI terminals, remote I/O stations, and edge computing gateways.

Unlike standalone drive components that operate in isolation, the 086384-001 is designed with system integration in mind. Its control logic interfaces directly with the ACS Series drive’s internal bus, enabling seamless data exchange between the power conversion layer and the supervisory control layer. This architecture eliminates the data silos that commonly arise when drives from different generations or vendors are deployed across the same production line, ensuring that every drive in the system speaks a consistent language to the control infrastructure above it.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB 086384-001 operates at the intersection of the drive layer and the control network, making it a pivotal component in any layered automation architecture. In a typical smart factory deployment, the data flow begins at the motor and mechanical load, where the ACS Series drive — equipped with the 086384-001 control board — continuously monitors output frequency, current draw, DC bus voltage, and thermal status. This data is then transmitted upward through the fieldbus network to a Siemens S7-1500 PLC or an ABB AC500 controller acting as the primary process coordinator.

At the network layer, an ABB FPBA-01 PROFIBUS adapter module or an FENA-21 EtherNet/IP adapter may be paired with the ACS Series drive to extend its connectivity to the plant-wide Ethernet backbone. Industrial managed switches — such as those from the Hirschmann RS20 series or Moxa EDS-308 — provide the network segmentation and redundancy needed to ensure that drive data reaches the SCADA server without latency or packet loss. The SCADA platform, whether running on Wonderware System Platform, Ignition by Inductive Automation, or ABB’s own System 800xA, receives continuous drive telemetry and presents it to operators through HMI panels such as the ABB CP600 series or Siemens SIMATIC TP1200 Comfort.

Remote I/O stations — for example, ABB S900 remote I/O or Beckhoff EtherCAT terminals — extend the reach of the control network to distributed motor control centers, allowing the 086384-001-equipped drives to be monitored and commanded from a centralized engineering workstation. In facilities where edge computing is deployed, an industrial edge gateway such as the ABB Edge Controller or a Moxa UC-8100 series device can aggregate drive data locally, perform pre-processing, and forward summarized datasets to cloud-based analytics platforms for long-term trend analysis and predictive maintenance scheduling.

Variable frequency drives equipped with the 086384-001 control board are commonly deployed alongside ABB SACE Emax circuit breakers and ABB UNO-series power supplies within the same motor control cabinet, ensuring that the electrical supply, protection, and drive control layers are all sourced from a consistent platform with unified diagnostic capabilities. This co-sourcing strategy simplifies spare parts management, reduces engineering time during commissioning, and ensures that firmware compatibility across the cabinet is maintained throughout the system’s operational life.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. A production line may include legacy drives using Modbus RTU alongside newer drives with PROFINET or EtherNet/IP capability, creating protocol boundaries that prevent unified monitoring and control. The ABB 086384-001, as the core control intelligence of the ACS Series drive, supports multi-protocol operation and can be configured to bridge these boundaries when paired with the appropriate communication adapter modules.

Data isolation is particularly acute in facilities that have expanded incrementally over time, adding new production cells without retiring older equipment. In these environments, the 086384-001 enables the ACS Series drive to participate in the plant’s current network architecture without requiring a full drive replacement, protecting the capital investment in existing motor and mechanical infrastructure while delivering the connectivity expected of modern Industry 4.0 systems.

Remote monitoring and diagnostics are another area where the 086384-001 delivers measurable value. By exposing drive fault history, runtime hours, and performance trends through the fieldbus network, maintenance teams can identify developing issues — such as bearing wear, cooling fan degradation, or input voltage fluctuation — before they result in unplanned downtime. This shift from reactive to predictive maintenance is one of the primary drivers of ROI in smart factory deployments, and the 086384-001’s network transparency is a direct enabler of that capability.

For system integrators and plant engineers responsible for production line transparency, the 086384-001 also supports parameterization and firmware updates over the network, reducing the need for on-site manual intervention during commissioning and routine maintenance cycles. All units supplied by ZYPLC are tested prior to dispatch and covered by a 12-Month Warranty, with global stock availability and rapid fulfillment via DHL and FedEx to minimize project lead times.

Industrial Connectivity FAQ

Q1: Does the ABB 086384-001 support PROFIBUS DP communication for integration with existing SCADA systems?
A: The ACS Series drive platform supports PROFIBUS DP communication through the ABB FPBA-01 adapter module, which interfaces with the drive’s fieldbus slot. The 086384-001 control board provides the internal logic and parameter management that enables this communication. If your SCADA system uses PROFIBUS DP as its primary fieldbus, the ACS Series drive with the 086384-001 can be fully integrated without protocol conversion hardware, provided the correct adapter module is installed. Contact ZYPLC for configuration guidance specific to your SCADA platform.

Q2: What is the network latency performance of the ACS Series drive when using the 086384-001 for real-time data exchange?
A: Network latency depends on the fieldbus protocol in use and the scan cycle of the host PLC or SCADA system. For PROFIBUS DP at 12 Mbps, typical cycle times are in the range of 1–5 ms per node, which is sufficient for most process control and motor management applications. For EtherNet/IP deployments, latency is governed by the network switch configuration and the requested packet interval (RPI) set in the controller. The 086384-001 does not introduce additional latency beyond the drive’s standard communication cycle, and all units are tested for communication stability before dispatch.

Q3: Is the ABB 086384-001 compatible with ACS880 drives, and can it be used as a direct replacement for a failed control board?
A: The 086384-001 is part of the ABB ACS Series control board family. Compatibility with specific drive models including ACS550, ACS580, and ACS880 variants should be verified against the drive’s hardware revision and firmware version. ZYPLC’s technical team can assist with cross-referencing the part number against your drive’s nameplate data to confirm direct replaceability. All replacement boards supplied by ZYPLC are covered by a 12-Month Warranty and are tested prior to shipment to ensure functional integrity.

Q4: What support does ZYPLC provide for commissioning and long-term maintenance of the ABB 086384-001?
A: ZYPLC provides pre-sales technical consultation to assist with compatibility verification, parameter configuration guidance, and system integration planning. Post-sale support includes a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. For long-term maintenance, ZYPLC maintains stock of ACS Series control boards and related communication adapter modules, enabling rapid replacement supply to minimize downtime in the event of future failures. Contact our team at plc.sales@zyplc.com or +86 19859288691 for project-specific support.

—
