ABB 170M6467 Semiconductor Fuse ACS

ABB 170M6467 Semiconductor Fuse for ACS Series Automation

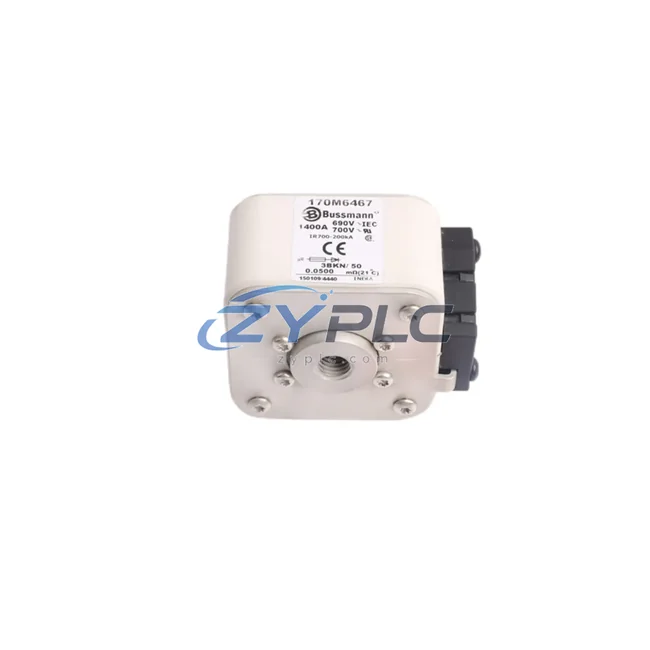

The ABB 170M6467 (alternate part reference: 3AUA0000062487) is a high-performance semiconductor fuse engineered specifically for ABB ACS series variable frequency drives and industrial power conversion systems. In modern manufacturing environments where energy efficiency and equipment uptime are directly tied to profitability, this fuse plays a critical role in protecting drive investment while enabling leaner, more responsive power management across the production line.

Unlike standard fuses, the 170M6467 is designed with ultra-fast current-limiting characteristics that respond within microseconds to fault conditions — preventing catastrophic damage to IGBT modules, rectifier bridges, and DC bus capacitors inside ACS drives. By eliminating the risk of cascading failures, it directly reduces unplanned downtime, lowers repair costs, and keeps production throughput on schedule.

Product Specification Table

System Compatibility and Application

The 170M6467 fuse is most effective when integrated as part of a complete, maintenance-focused drive protection and control architecture. In a typical ACS880 multi-drive system, the fuse sits upstream of the drive’s DC bus, working in coordination with the ABB ACS880-01 inverter module to ensure that any short-circuit event is isolated before it propagates to the motor or the supply network. This coordination is essential in high-inertia applications such as centrifugal pumps, compressors, and conveyor systems where motor restart cycles consume significant energy.

On the control side, the ABB AC500 PLC platform is commonly deployed alongside ACS series drives to manage start/stop sequences, load profiling, and condition monitoring. The AC500’s DriveManager function block communicates with the drive via PROFIBUS-DP or PROFINET, enabling real-time adjustment of motor speed and torque based on actual process demand — a key strategy for reducing partial-load unplanned downtime. The 170M6467 fuse ensures that this tightly integrated control loop is never interrupted by an unprotected fault event.

For condition monitoring and power quality analysis, the ABB B23 energy meter or M2M energy measurement module is often installed at the drive input panel. These devices capture kWh consumption, power factor, and harmonic distortion data that feeds back into the plant’s maintenance planning system. When the 170M6467 fuse is correctly specified, it does not introduce additional impedance or voltage drop that would skew these measurements — maintaining the accuracy of the energy audit trail.

In servo-driven applications, such as CNC machining centers or robotic assembly lines, the ABB MicroFlex e190 servo drive paired with BSM series servo motors requires equally precise overcurrent protection. The 170M6467’s fast-acting characteristics make it suitable for protecting the DC link in these high-dynamic systems, where regenerative braking energy is frequently fed back to the bus. Proper fuse selection here prevents nuisance tripping during deceleration ramps while still providing full fault protection.

I/O expansion modules such as the ABB CI854 PROFIBUS interface module and TU810V1 terminal units are often used in the same control cabinet to aggregate field signals from temperature sensors, current transformers, and vibration monitors. This data, combined with the drive’s built-in diagnostics, enables predictive maintenance scheduling — reducing the frequency of emergency shutdowns and the associated energy cost of cold restarts on large motors.

Maintenance and Replacement Notes

In a paper mill or chemical processing plant running multiple 200–400 kW motors on ACS800 drives, a single unprotected short-circuit event can destroy an IGBT module worth thousands of dollars and halt production for 24–72 hours. The energy cost of restarting a large process — reheating, re-pressurizing, or re-synchronizing — often exceeds the cost of the damaged component itself. The ABB 170M6467 fuse eliminates this risk by providing deterministic, ultra-fast fault isolation that preserves the drive’s internal components and allows the system to resume operation after fault clearance without a full cold-start sequence.

In variable-torque applications such as HVAC fans and water supply pumps, ACS drives already deliver significant operational stability through speed control. However, these savings are only realized when the drive remains operational. A fuse failure or an unprotected fault that damages the drive negates months of operational stability in a single event. By specifying the correct 170M6467 fuse for the drive’s rated current and voltage, plant engineers ensure that the energy efficiency gains from variable-speed operation are protected over the full service life of the equipment.

For production lines with tight cycle-time requirements — such as automotive stamping or electronics assembly — drive availability directly impacts line throughput and OEE (Overall Equipment Effectiveness). The 170M6467’s reliable fault response means that even in the event of a downstream short circuit, the drive can be returned to service quickly after fuse replacement, without the extended diagnostic and repair time associated with damaged power electronics. This directly supports the plant’s OEE targets and reduces the energy penalty of idle time and restart cycles.

All units supplied by ZYPLC are sourced from authorized channels, individually tested for continuity and rated characteristics before shipment, and covered by a warranty terms confirmed during quotation. Inventory is maintained RFQ Available for rapid dispatch to minimize lead time impact on your production schedule.

Product Sourcing FAQ

Q1: How does the ABB 170M6467 contribute to energy efficiency in ACS drive systems?
By providing ultra-fast fault isolation, the 170M6467 prevents IGBT and rectifier damage that would require drive replacement or repair — eliminating the energy cost of extended downtime, cold restarts, and the manufacturing of replacement components. It keeps the drive operational and the operational-efficiency benefits of variable-speed control intact.

Q2: Is the 170M6467 compatible with all ACS series drives?
The 170M6467 is specified for use with ABB ACS550, ACS800, ACS880, and ACS580 series drives in the appropriate current and voltage range. Always verify the drive’s fuse specification table in the hardware manual or contact ZYPLC for application-specific confirmation before installation.

Q3: Can this fuse be used as a direct replacement for an existing failed fuse in a running production line?
Yes. The 170M6467 / 3AUA0000062487 is a direct OEM-equivalent replacement. Before installation, identify and resolve the root cause of the original fuse failure to prevent recurrence. ZYPLC’s technical team can assist with fault analysis and replacement recommendations.

Q4: What is the warranty and testing process for units supplied by ZYPLC?
Every unit is tested for electrical continuity and rated characteristics prior to shipment. All products carry a warranty terms confirmed during quotation covering manufacturing defects. Units are shipped with test documentation upon request. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for RFQ and lead time confirmation.
