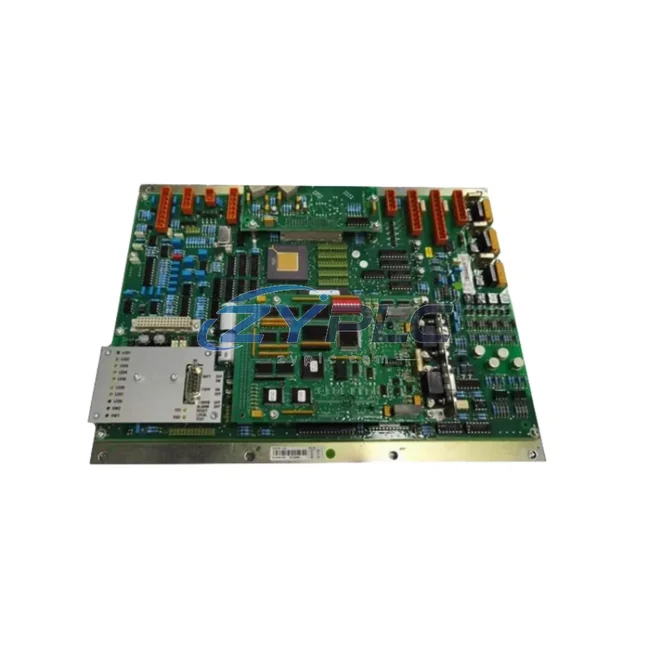

ABB 1KHW002356R0001 Industrial Network Interface for UNITROL Systems

ABB 1KHW002356R0001 Industrial Network Interface for UNITROL Systems: Bridging the Industrial Data Link

The ABB 1KHW002356R0001 is a high-performance industrial network interface and excitation power supply module engineered for the ABB UNITROL series excitation control platform. Designed to operate at the intersection of field-level devices and supervisory control systems, this module delivers robust Modbus TCP and PROFIBUS DP protocol support, enabling seamless data exchange across the full automation hierarchy — from rotating machine excitation circuits to SCADA dashboards and enterprise MES layers.

In modern smart factory environments, the integrity of the industrial data link is paramount. The ABB 1KHW002356R0001 addresses this need by providing a stable, deterministic communication backbone that connects excitation controllers, power converters, and field instrumentation to higher-level control and monitoring systems. Whether deployed in power generation facilities, large-scale motor drive applications, or process automation plants, this module ensures that real-time excitation data — voltage setpoints, reactive power feedback, fault status, and alarm signals — flows reliably from the machine level to the control room.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB 1KHW002356R0001 sits at the heart of a layered industrial communication architecture. At the field level, excitation sensors and voltage transducers feed analog and digital signals into the UNITROL excitation controller. The 1KHW002356R0001 module then translates these signals into structured Modbus TCP frames or PROFIBUS DP telegrams, making the data immediately accessible to upstream systems.

In a typical deployment, the module interfaces directly with an ABB AC500 PLC or ABB Symphony Plus DCS acting as the Modbus TCP master, polling excitation voltage, field current, and reactive power values at scan rates as low as 10 ms. Simultaneously, the PROFIBUS DP port connects to ABB ACS880 variable frequency drives and ABB ACSM1 servo drives on the same fieldbus segment, enabling coordinated motor and excitation control across the production line.

For operator visibility, the real-time data stream is forwarded to an ABB CP600 HMI panel or a third-party SCADA platform such as Wonderware InTouch or Ignition, where operators can monitor excitation trends, set voltage references, and acknowledge alarms without leaving the control room. The ABB 1KHW002356R0001 also supports integration with ABB Ability™ Edge gateways, enabling cloud-based remote diagnostics and predictive maintenance analytics.

Remote I/O expansion is handled through ABB S800 I/O modules connected via the PROFIBUS DP segment, extending the reach of the excitation control system to distributed measurement points across large generator halls or substation environments. Temperature sensors, vibration monitors, and protection relays — such as the ABB REG670 generator protection relay — feed their status data through the same fieldbus, creating a unified diagnostic picture within the SCADA system.

For power quality monitoring and energy management, the 1KHW002356R0001 can be paired with ABB M2M gateways and ABB SREA-01 Ethernet adapter modules, bridging legacy serial devices into the modern Modbus TCP network without requiring hardware replacement. This makes the module an ideal retrofit solution for brownfield plants upgrading their excitation infrastructure while preserving existing field wiring investments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where critical machine data is trapped within proprietary fieldbus islands, inaccessible to plant-wide SCADA systems, energy management platforms, or corporate ERP layers. The ABB 1KHW002356R0001 directly addresses this problem by acting as a protocol gateway between the PROFIBUS DP world of legacy field devices and the Ethernet-based Modbus TCP infrastructure of modern control networks.

In power plants and heavy industry facilities, excitation systems have historically operated as standalone control loops with limited visibility from the plant DCS. By deploying the 1KHW002356R0001, engineers can expose excitation parameters — reactive power output, AVR mode status, field forcing events, and protection trip signals — directly to the plant SCADA, enabling production line transparency and reducing mean time to diagnose (MTTD) for electrical faults.

Remote monitoring is another key value proposition. With Modbus TCP connectivity, maintenance teams can access live excitation data from any networked workstation or mobile device, eliminating the need for on-site inspection during routine checks. Alarm thresholds configured in the UNITROL controller are automatically propagated to the SCADA alarm management system, ensuring that no fault event goes unnoticed regardless of shift schedules.

System scalability is built into the architecture. As production capacity grows, additional UNITROL excitation units can be added to the PROFIBUS DP segment without disrupting existing network topology. The Modbus TCP interface supports multiple simultaneous master connections, allowing the PLC, HMI, and SCADA system to poll data concurrently without communication conflicts. This makes the ABB 1KHW002356R0001 a future-proof investment for facilities planning phased automation upgrades.

Every unit shipped by ZYPLC undergoes pre-shipment functional testing, verifying communication protocol handshake, power supply output stability, and I/O signal integrity before dispatch. All modules are covered by a warranty terms confirmed during quotation and are available for shipment arranged after confirmation via DHL or FedEx Express to destinations worldwide.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ABB 1KHW002356R0001 over Modbus TCP?
The 1KHW002356R0001 supports deterministic Modbus TCP polling with typical cycle times of 10–50 ms depending on network load and the number of connected masters. For time-critical excitation control loops, it is recommended to configure the Modbus TCP master scan rate to match the UNITROL controller’s internal update cycle to minimize data age.

Q2: Is the ABB 1KHW002356R0001 compatible with third-party SCADA and HMI systems?
Yes. Because the module uses standard Modbus TCP and PROFIBUS DP protocols, it is fully compatible with any SCADA platform that supports these open standards, including Siemens WinCC, Wonderware InTouch, Ignition by Inductive Automation, and GE iFIX. No proprietary drivers or software licenses are required for basic connectivity.

Q3: Can the 1KHW002356R0001 be used to expand an existing UNITROL excitation network?
Absolutely. The module is designed for both greenfield installations and brownfield retrofits. It can be added to an existing PROFIBUS DP segment alongside other ABB field devices without requiring changes to the master PLC configuration, provided the new node address is unique within the segment. Modbus TCP expansion is equally straightforward — simply assign a new IP address and register the device in the SCADA tag database.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
The warranty terms confirmed during quotation covers manufacturing defects, communication interface failures, and power supply output deviations from specification. Prior to shipment, each ABB 1KHW002356R0001 unit undergoes a structured pre-shipment test protocol that includes protocol communication verification (Modbus TCP handshake and PROFIBUS DP token passing), power supply output measurement, and visual inspection for physical damage. Test records are available upon request. For warranty claims or technical support, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
