ABB 1MRB178009R0002 Industrial Network Interface for Masterpiece Systems

ABB 1MRB178009R0002 (500PBIO01-TTL): Industrial Data Link for Masterpiece Series Smart Factory Systems

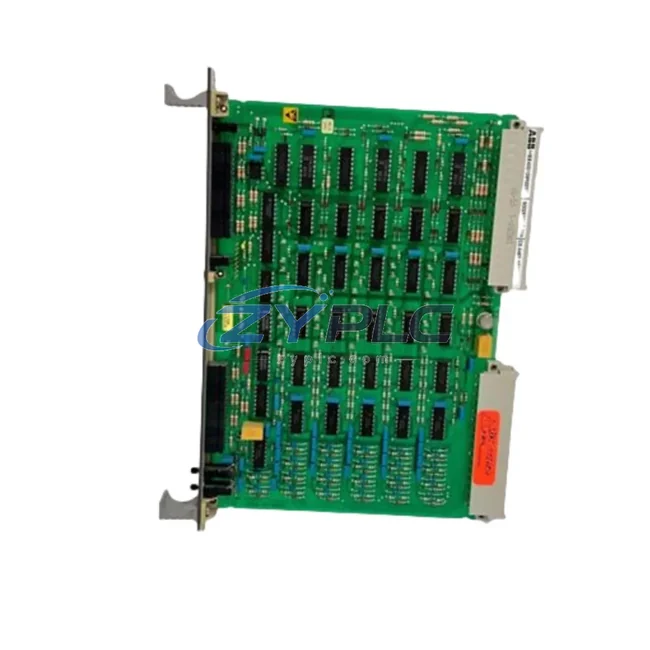

The ABB 1MRB178009R0002, commercially designated as the 500PBIO01-TTL, is a high-integrity control and communication board engineered for the ABB Masterpiece Series distributed control system (DCS). Designed to serve as the critical data bridge between field-level instrumentation and supervisory control layers, this module enables seamless signal acquisition, protocol conversion, and real-time data transmission across complex industrial network architectures. Whether deployed in power generation, oil & gas processing, chemical manufacturing, or advanced smart factory environments, the 1MRB178009R0002 delivers the communication reliability and deterministic performance that modern industrial automation demands.

At the heart of its design is a TTL-level serial interface that interfaces directly with the Masterpiece Series backplane, enabling low-latency data exchange between the process I/O layer and the DCS controller. Field signals — whether sourced from pressure transmitters, flow meters, temperature sensors, or discrete digital inputs — are captured, conditioned, and forwarded through the board’s communication logic to the ABB Masterpiece MP200 or MP300 controller modules. This tight integration ensures that process variables are available to the SCADA layer with minimal cycle-time overhead, supporting real-time monitoring and closed-loop control strategies.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Masterpiece Series DCS environment, the 1MRB178009R0002 sits at the intersection of field instrumentation and supervisory control — a position that makes it indispensable to the plant’s data flow architecture. Consider a typical process loop: a 4–20 mA pressure transmitter feeds its signal into an ABB S800 Remote I/O module stationed near the process vessel. The S800 digitizes the analog signal and forwards it via the plant’s PROFIBUS DP segment to the Masterpiece controller rack, where the 500PBIO01-TTL board receives, validates, and routes the data to the MP200 processor for PID control execution.

Simultaneously, discrete status signals from motor control centers and valve positioners — often wired through ABB AC500 PLC I/O expansion modules — are aggregated and transmitted upstream. The 1MRB178009R0002 ensures that these multi-source data streams are synchronized and presented to the ABB System 800xA SCADA/DCS platform without data collision or timing drift. Operators at the ABB CP600 HMI panel receive live process values, alarm states, and trend data with sub-second refresh rates, enabling rapid response to process deviations.

For drive-level integration, ABB ACS880 variable frequency drives connected via PROFIBUS or Modbus RTU report speed, torque, and fault status back through the communication chain. The 500PBIO01-TTL board’s role in this architecture is to maintain the integrity of the data path — ensuring that drive feedback, sensor readings, and controller outputs are all time-stamped and delivered to the historian and SCADA layer without loss. ABB Freelance DCS gateway modules may also be deployed in parallel segments to extend the network reach to remote field stations, with the 1MRB178009R0002 serving as the backbone communication node within the Masterpiece rack.

Edge computing nodes — such as ABB Edge Connect industrial gateways — can tap into the data stream managed by this board to push real-time OPC-UA formatted data to cloud-based MES or ERP platforms, completing the ISA-95 data hierarchy from field device to enterprise system. This end-to-end connectivity is what transforms a conventional DCS installation into a true Industrial IoT-enabled smart factory.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — the inability to move process data freely between field devices, controllers, and supervisory systems due to protocol incompatibilities or aging communication hardware. The ABB 1MRB178009R0002 directly addresses this challenge within the Masterpiece Series architecture by providing a standardized, reliable communication interface that bridges the gap between TTL-level field signals and the higher-level DCS communication bus.

Plants that have historically operated with siloed control islands — where each process unit runs its own isolated control loop with no visibility from the central SCADA — can leverage the 500PBIO01-TTL to re-integrate these islands into a unified data fabric. By replacing failed or obsolete communication boards with the 1MRB178009R0002, maintenance teams restore the data pathways that feed the ABB System 800xA historian, enabling production managers to access cross-unit KPIs, operating load data, and alarm histories from a single operator workstation.

Remote diagnostics capability is another key benefit. With the 1MRB178009R0002 restoring full communication between the field and the control room, remote monitoring tools can be deployed to detect early signs of instrument drift, communication timeouts, or I/O card failures — all without requiring a technician to physically inspect the field panel. This capability is particularly valuable in hazardous areas where access is restricted, or in geographically distributed plants where travel time to remote substations is significant.

Production line transparency is further enhanced through the board’s support for real-time data feeds to MES platforms. Cycle times, batch completion signals, and quality control checkpoints — previously invisible to plant management — become accessible through the restored communication chain, enabling data-driven decisions on production scheduling, maintenance planning, and maintenance planning. The 1MRB178009R0002 is not merely a replacement part; it is a strategic enabler of plant-wide digitalization.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 1MRB178009R0002 (500PBIO01-TTL) support?
The 1MRB178009R0002 operates on the TTL serial interface standard native to the ABB Masterpiece Series DCS backplane. Within the Masterpiece architecture, it communicates using ABB’s proprietary Masterpiece bus protocol, which governs data exchange between I/O boards and the MP200/MP300 controller modules. For upstream SCADA integration, the DCS system as a whole supports OPC-DA/UA, PROFIBUS DP, and Modbus TCP/IP through gateway modules, making the 500PBIO01-TTL compatible with a broad range of supervisory and enterprise systems.

Q2: How does this board ensure network stability in high-noise industrial environments?
The 500PBIO01-TTL is designed to ABB’s industrial-grade hardware standards, incorporating signal isolation and noise filtering appropriate for installation in DCS racks located in control rooms adjacent to high-voltage switchgear and variable frequency drives. The TTL interface operates at logic levels that are inherently less susceptible to common-mode noise than analog signal paths, and the board’s firmware includes watchdog and error-detection routines that flag communication anomalies before they propagate to the control layer. All units supplied by ZYPLC are pre-tested for communication integrity prior to shipment.

Q3: Can the 1MRB178009R0002 be integrated into an existing Masterpiece DCS without system downtime?
In most Masterpiece Series installations, I/O and communication boards are designed for hot-swap or minimal-interruption replacement, subject to the specific rack configuration and controller firmware version in use. We recommend consulting the ABB Masterpiece Series hardware manual and coordinating with your DCS engineer to confirm the replacement procedure for your specific system revision. ZYPLC’s technical team can provide pre-sales guidance on compatibility and installation sequencing to minimize production impact.

Q4: What warranty and quality assurance does ZYPLC provide for the ABB 1MRB178009R0002?
Every ABB 1MRB178009R0002 (500PBIO01-TTL) supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and communication failures. Prior to shipment, each unit undergoes functional testing to verify TTL interface integrity, backplane connector condition, and firmware responsiveness. We maintain RFQ-confirmed sourcing to support urgent replacement requirements, with global shipping available to minimize plant downtime. For warranty claims or technical support, contact our team directly.
