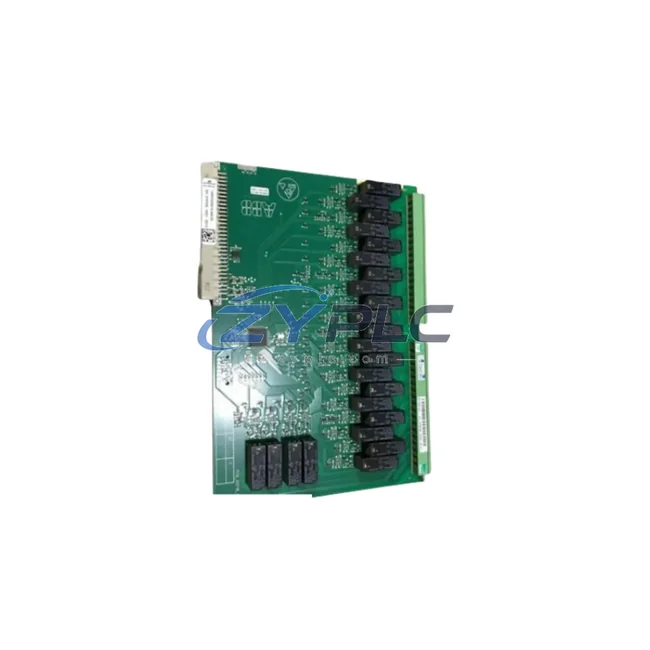

ABB 1MRK000161-AAR01 Binary Output for Relion

ABB 1MRK000161-AAR01 Binary Output for Relion

The ABB 1MRK000161-AAR01 is a dedicated binary output module engineered for seamless integration within the ABB Relion® protection and control platform. Rather than functioning as a standalone component, this module is designed to operate as a critical node within a layered automation architecture — bridging the logic processing layer with the physical switching and tripping layer in substations, power distribution networks, and industrial process control environments. Its role in the system is to translate digital command signals from the protection IED (Intelligent Electronic Device) into reliable, high-speed binary switching actions that actuate circuit breakers, contactors, isolators, and alarm systems.

In modern protection architectures built around the Relion series — including the REF615, REG615, RET615, REL615, and REM615 families — the 1MRK000161-AAR01 serves as the output execution layer. When the IED’s processing core issues a trip command following a fault detection event, it is this binary output module that physically closes or opens the output contact, completing the protection chain. The speed, reliability, and contact integrity of this module are therefore directly tied to the overall protection system’s response time and operational safety.

From a system architecture perspective, the 1MRK000161-AAR01 integrates with the Relion platform’s internal backplane communication bus, receiving commands from the CPU and application logic modules without requiring external wiring between functional blocks. This tight integration reduces signal latency, minimizes wiring complexity inside the control cabinet, and supports the modular expansion philosophy of the Relion hardware platform. Engineers designing protection panels for transformer feeders, motor protection circuits, or busbar differential schemes can add binary output capacity incrementally as system requirements grow, without redesigning the base architecture.

The module supports system integration within the Relion IED environment, meaning its output assignments, signal mapping, and functional logic can be configured directly through ABB’s PCM600 Protection and Control IED Manager. This allows system engineers to define output relay functions — such as trip, close, alarm, or blocking — and map them to specific protection functions within the IED application. Changes to output logic can be made at the software level without hardware modifications, significantly reducing commissioning time and enabling rapid adaptation to evolving protection schemes.

In terms of system redundancy and reliability, the 1MRK000161-AAR01 contributes to the overall fault tolerance of the protection system. In dual-redundant or N+1 protection architectures, multiple binary output modules can be assigned to overlapping protection zones, ensuring that a single module failure does not compromise the protection coverage of a critical feeder or transformer bay. This is particularly important in high-availability applications such as primary substation protection, where protection system availability directly affects grid reliability.

The module is also compatible with IEC 61850 GOOSE (Generic Object Oriented Substation Event) messaging architectures, where binary output actions can be triggered not only by local IED logic but also by GOOSE messages received from peer IEDs across the station bus. This enables advanced protection schemes such as inter-tripping, busbar protection, and transfer trip without the need for dedicated hardwired pilot channels, reducing both installation cost and maintenance complexity.

For system integrators and maintenance engineers, the 1MRK000161-AAR01 offers a straightforward replacement and upgrade path within existing Relion-based panels. Its compatibility with the Relion hardware platform means that module swaps can be performed without changes to the IED configuration or protection logic, provided the replacement module is of the same type. This reduces planned maintenance downtime and supports long-term asset management strategies for substation automation systems.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional testing to verify contact operation, output signal integrity, and backplane communication compatibility. Stock availability is maintained to support both urgent replacement requirements and planned project procurement schedules.

Product Specification Table

System Compatibility Notes

The 1MRK000161-AAR01 does not operate in isolation — its value is realized through coordinated interaction with the full suite of Relion platform components. In a typical feeder protection panel, the REF615 feeder protection IED serves as the central processing unit, executing overcurrent, earth fault, and arc flash protection functions. The binary output module receives trip commands from the REF615’s internal logic and actuates the circuit breaker trip coil, completing the protection chain in milliseconds.

On the input side, binary input modules such as the 1MRK000161-AAQ01 feed status signals — circuit breaker position, isolator state, and external alarm contacts — back into the IED’s application logic, creating a closed-loop control and monitoring system. The REM615 motor protection IED uses a similar architecture for motor starter control, where binary outputs drive contactor coils and binary inputs monitor thermal relay status and motor running feedback.

For substation-wide communication, the Relion IEDs connect to the station bus via the COM600S substation gateway or directly through IEC 61850 Ethernet switches, enabling SCADA integration and remote monitoring. The RET615 transformer protection IED in the same substation shares the same binary output module architecture, ensuring spare parts commonality and reducing the inventory burden for maintenance teams. In busbar protection schemes, the REB615 busbar protection IED coordinates trip commands across multiple feeder REF615 units via GOOSE messaging, with each feeder’s binary output module executing the trip action locally.

Power supply modules within the Relion platform, such as the PSM-A power supply module, provide the regulated DC supply required for reliable binary output contact operation. In redundant power architectures, dual PSM-A modules with automatic changeover ensure that binary output functionality is maintained even during a power supply module failure. Terminal block assemblies and marshalling modules within the control cabinet complete the wiring interface between the binary output contacts and the field devices they control.

Industrial Application Notes

The 1MRK000161-AAR01 finds application across a wide range of industrial and utility automation environments. In electrical power distribution substations, it serves as the trip output interface for feeder, transformer, and busbar protection schemes, directly actuating circuit breaker trip coils in response to fault detection by the Relion IED. In this context, the module’s contact reliability and operating speed are critical to limiting fault energy and protecting downstream equipment.

In industrial manufacturing facilities with medium-voltage motor control centers, the binary output module drives motor contactor coils and provides interlock outputs for process safety systems. In petrochemical and refinery applications, where process safety and SIL (Safety Integrity Level) compliance are paramount, the module’s deterministic output behavior supports the design of safety instrumented systems built around the Relion platform. Water treatment and pumping stations use Relion-based protection systems to protect pump motors and distribution transformers, with binary output modules providing both protection trip outputs and process control switching functions.

Mining and metallurgical operations, which rely on large motor drives and high-power distribution systems, benefit from the module’s ability to interface with both protection and control functions within a single IED platform. In packaging and process production lines, where machine protection and process interlock functions are integrated into the same control architecture, the 1MRK000161-AAR01 provides the reliable output switching required for both safety and operational control applications.

Product Compatibility FAQ

Q1: Is the 1MRK000161-AAR01 compatible with all Relion 615 series IEDs, and can it be used as a direct replacement in existing panels?
The 1MRK000161-AAR01 is designed for the ABB Relion® modular hardware platform and is compatible with the 615 series IED family, including the REF615, RET615, REG615, REL615, REM615, and REB615. As a modular component, it can be replaced in the field without changes to the IED’s protection configuration or application logic, provided the replacement module is of the same type. Pre-replacement verification of the module slot assignment and output wiring is recommended to ensure correct reinstallation.

Q2: How does the 1MRK000161-AAR01 support IEC 61850 GOOSE-based protection schemes, and what configuration is required?
In IEC 61850 architectures, the binary output module’s contact actions can be triggered by GOOSE messages received from peer IEDs on the station bus, in addition to local IED logic. Configuration is performed through ABB PCM600, where GOOSE input signals are mapped to binary output functions within the IED application. This enables inter-tripping and transfer trip schemes without dedicated hardwired pilot channels. The system integration capability of the Relion platform ensures that GOOSE-triggered output functions are fully integrated into the IED’s event logging and disturbance recording system.

Q3: What does the warranty terms confirmed during quotation cover, and what pre-shipment testing is performed on the 1MRK000161-AAR01?
All 1MRK000161-AAR01 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions. Pre-shipment testing includes verification of binary output contact operation (make and break), backplane communication interface integrity, and visual inspection for physical damage. Units that do not pass functional testing are not shipped. Warranty claims are supported by ZYPLC’s technical team, with replacement units dispatched to minimize system downtime.
