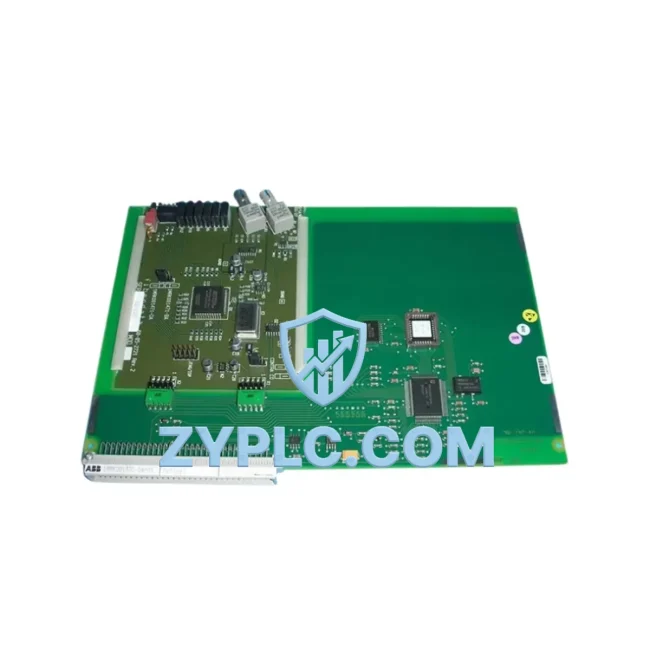

ABB 1MRK000173-CBR03: Industrial Data Link for REB500 Substation Automation Systems
The ABB 1MRK000173-CBR03 is a high-performance Binary I/O Module engineered for the REB500 series protection and control platform — one of ABB’s most trusted substation automation architectures deployed across power utilities, industrial substations, and critical infrastructure worldwide. Designed to handle real-time binary signal acquisition and output control, this module serves as a foundational data link between field devices and the protection relay logic, enabling seamless integration across IEC 61850-compliant networks.
In modern smart substations and industrial power systems, the integrity of binary signal data — trip commands, alarm states, breaker positions, and interlock signals — is mission-critical. The 1MRK000173-CBR03 ensures that every digital input and output is captured, processed, and transmitted with deterministic timing, supporting the high-speed protection functions that the REB500 platform demands. Whether deployed in a 110 kV transmission substation or a large industrial facility, this module provides the I/O backbone that connects field switchgear, current transformers, voltage transformers, and auxiliary contacts to the central protection and control logic.
Network Communication Table
| Parameter |
Specification |
| Communication Protocol |
IEC 61850 (GOOSE, MMS, SAMPLED VALUES) |
| Interface Type |
Binary Digital I/O (Hardwired + Protocol-mapped) |
| Transmission Capability |
High-speed binary signal acquisition and output control |
| Network Compatibility |
REB500 Series Substation Automation Bus, IEC 61850 Station Bus |
| System Application |
Protection Relay I/O, SCADA Integration, Substation Automation, Interlock Logic |
| Series Compatibility |
ABB REB500 Series (REB500/11, REB500/21, REB500/31) |
| Warranty |
12-Month Warranty — All units tested prior to shipment |
Connected Automation Data Flow
In a fully integrated REB500 substation automation environment, the 1MRK000173-CBR03 Binary I/O Module sits at the intersection of field-level hardware and station-level intelligence. Signal acquisition begins at the switchgear level, where auxiliary contacts from circuit breakers, disconnectors, and earthing switches feed binary status signals directly into the module’s digital inputs. These signals are then processed by the REB500 protection relay — which may include companion modules such as the REB500 Analog Input Module (1MRK000172-series) for current and voltage measurement — and the resulting protection decisions are issued as binary output commands back through the 1MRK000173-CBR03 to trip coils, closing coils, and alarm annunciators.
At the station bus level, the module’s IEC 61850 GOOSE messaging capability enables peer-to-peer communication with other intelligent electronic devices (IEDs) across the substation LAN. This allows the REB500 system to exchange binary interlocking signals with ABB REF615 feeder protection relays, ABB RET615 transformer protection units, and ABB REC615 bay control units — all without hardwired point-to-point cabling between panels. The result is a flexible, software-configurable protection and control architecture that dramatically reduces commissioning time and wiring complexity.
For SCADA integration, the binary status data collected by the 1MRK000173-CBR03 is aggregated by the REB500 station controller and transmitted upstream via IEC 61850 MMS to the substation HMI or SCADA gateway. Systems such as ABB MicroSCADA Pro or third-party SCADA platforms receive real-time breaker status, alarm conditions, and protection event records, enabling operators to monitor the entire substation from a centralized control room. Remote diagnostic access is supported through the station LAN, allowing engineers to retrieve disturbance records, event logs, and I/O status without physical site visits — a critical capability for unmanned substations and remote industrial facilities.
In applications where legacy hardwired I/O must coexist with modern IEC 61850 networks, the 1MRK000173-CBR03 provides the bridge between conventional relay panels and digital substation architectures. It can interface with older electromechanical relays, auxiliary relays, and marshalling kiosks while simultaneously feeding digital data into the IEC 61850 station bus — making it an essential component in substation modernization and retrofit projects. When combined with ABB’s COM600 series substation gateway or the RTU560 remote terminal unit, the binary I/O data can be further forwarded to control center SCADA systems via DNP3, IEC 60870-5-101, or IEC 60870-5-104 protocols, extending the data chain from the field device all the way to the enterprise energy management system.
Solving Data Isolation in Industrial Substations
One of the most persistent challenges in substation automation is data isolation — the inability to share real-time binary status and control signals across protection zones, voltage levels, and communication domains. Legacy substations often rely on hardwired interlocking schemes that are inflexible, difficult to modify, and impossible to monitor remotely. The ABB 1MRK000173-CBR03 directly addresses this challenge by providing a standards-based IEC 61850 interface that makes binary I/O data universally accessible across the station network.
Protocol fragmentation is another common pain point in mixed-vendor substation environments. When protection relays from different manufacturers use proprietary communication formats, integrating their I/O data into a unified SCADA view becomes complex and costly. The 1MRK000173-CBR03, as part of the IEC 61850-compliant REB500 platform, ensures that binary signals are published in standardized GOOSE datasets that any IEC 61850-capable device can subscribe to — eliminating the need for protocol converters or custom integration middleware.
For remote monitoring and diagnostics, the module enables continuous visibility into binary I/O states without requiring local presence. Maintenance teams can verify input signal health, output relay status, and wiring integrity through the REB500 HMI or remote SCADA interface, reducing unplanned outages and accelerating fault diagnosis. This transparency is particularly valuable in industrial substations serving manufacturing plants, data centers, and process industries where power continuity is directly linked to production output.
System scalability is built into the REB500 architecture. As substation capacity grows or protection requirements evolve, additional 1MRK000173-CBR03 modules can be added to expand the binary I/O count without redesigning the communication infrastructure. The IEC 61850 station bus accommodates new IEDs and I/O modules dynamically, supporting phased expansion strategies that align with capital investment cycles.
Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify input signal response, output relay operation, and communication interface integrity. A 12-month warranty is provided on all ABB REB500 series modules, backed by in-stock inventory and rapid global dispatch to minimize project lead times.
Industrial Connectivity FAQ
Q: What communication protocol does the ABB 1MRK000173-CBR03 support, and is it compatible with third-party IEC 61850 devices?
A: The 1MRK000173-CBR03 operates within the ABB REB500 platform, which supports IEC 61850 GOOSE messaging and MMS for station bus communication. As an IEC 61850-compliant system, the REB500 can exchange GOOSE datasets with any certified IEC 61850 device from other manufacturers, provided the SCL (Substation Configuration Language) files are correctly configured. This ensures broad interoperability across multi-vendor substation environments.
Q: What is the typical communication latency for binary I/O signals in the REB500 system?
A: The REB500 platform is designed for high-speed protection applications where binary signal latency must be minimized. GOOSE messages transmitted over the IEC 61850 station bus achieve sub-millisecond delivery times under normal network conditions, meeting the Class P2/P3 performance requirements for protection-grade communication. Hardwired binary inputs are processed with relay-grade response times to ensure protection function integrity.
Q: Can the 1MRK000173-CBR03 be integrated into an existing SCADA or energy management system?
A: Yes. Binary I/O data from the 1MRK000173-CBR03 is accessible through the REB500 station controller, which supports upstream communication via IEC 61850 MMS, IEC 60870-5-104, DNP3, and Modbus TCP — depending on the gateway configuration. This allows seamless integration with SCADA platforms such as ABB MicroSCADA Pro, Siemens SICAM, GE iFIX, or any standards-compliant energy management system.
Q: Does ZYPLC provide warranty coverage and pre-shipment testing for the ABB 1MRK000173-CBR03?
A: All ABB REB500 series modules supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit is functionally tested prior to shipment to verify binary input response, output relay operation, and module communication. In-stock units are available for immediate dispatch, and expedited shipping options are available for urgent project requirements.
