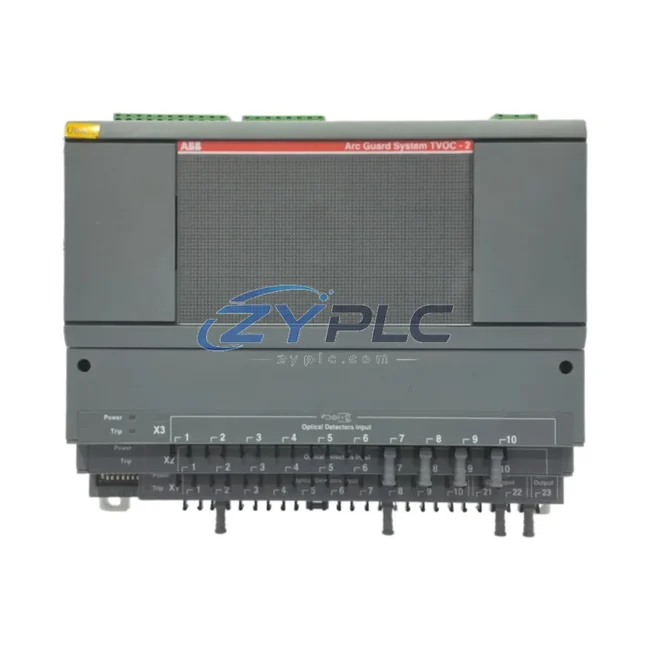

ABB 1SFA664001R1001 Arc Flash Monitor for TVOC-2

ABB 1SFA664001R1001 Arc Flash Monitor for TVOC-2

The ABB 1SFA664001R1001 (TVOC-2-240) is a dedicated arc flash detection unit engineered for seamless integration into layered industrial control system architectures. Unlike standalone protection devices, the TVOC-2-240 is designed from the ground up to function as a coordinated node within a complete switchgear protection ecosystem — interfacing with upstream protection relays, downstream I/O modules, communication gateways, and supervisory control platforms to deliver consistent, system-wide arc flash safety performance.

In modern MV and LV switchgear installations, arc flash protection cannot be treated as an isolated function. The 1SFA664001R1001 addresses this by providing deterministic response times below 1 ms, optical sensor inputs compatible with point and arc sensors, and relay output contacts that integrate directly with ABB REF615, REF630, and REF650 series protection relays. This system integration ensures that arc flash events trigger coordinated tripping sequences across the entire protection layer — minimizing arc energy, reducing equipment damage, and protecting personnel.

The TVOC-2-240 operates on a 100–240 V AC/DC auxiliary supply, making it compatible with standard switchgear panel power architectures without requiring dedicated DC power conversion. Its compact DIN-rail mounting profile allows installation within existing control cabinets alongside ABB S800 I/O modules, TB820 Modulebus communication interfaces, and AC500 PLC CPU modules — enabling a unified control and protection architecture within a single enclosure.

From a system architecture perspective, the 1SFA664001R1001 occupies the protection and safety layer, sitting between the primary switchgear bus and the supervisory SCADA or DCS platform. Its binary output signals can be wired directly to ABB AC500 digital input modules or fed through CI840A PROFIBUS communication interfaces to higher-level control systems, enabling real-time arc flash event logging, alarm annunciation, and post-fault analysis without manual intervention.

For installations requiring redundancy, the TVOC-2-240 supports multiple sensor zone inputs, allowing a single unit to monitor several busbar sections simultaneously. This reduces the number of protection devices required while maintaining zone-selective protection — a critical design consideration in ring-bus and double-busbar substation architectures. When paired with ABB REX640 or REM615 motor protection relays, the system achieves full arc flash and overcurrent coordination across both feeder and motor circuits.

Long-term maintenance efficiency is a core design principle of the TVOC-2 platform. The 1SFA664001R1001 features LED status indicators for sensor supervision, relay output status, and power supply health — enabling field technicians to perform rapid visual diagnostics without specialized test equipment. Firmware is accessible via the front panel interface, and the unit’s modular sensor connection architecture allows individual optical sensors to be replaced or extended without interrupting protection on adjacent zones.

For engineering teams managing multi-site installations or long-term spare parts programs, the 1SFA664001R1001 is available with a warranty terms confirmed during quotation, ensuring operational continuity and reducing lifecycle cost. ZYPLC maintains availability subject to RFQ confirmation of the TVOC-2-240 alongside complementary components including ABB TVOC-2 arc sensors, REF615 feeder protection relays, AC500 CPU modules, TB820 Modulebus interfaces, S800 I/O modules, and CI840A PROFIBUS gateways — enabling complete system procurement from a single source.

Product Specification Table

System Compatibility Notes

The 1SFA664001R1001 achieves its full protective value when deployed as part of a coordinated control system rather than as a standalone device. In a typical MV switchgear panel, the TVOC-2-240 receives optical signals from ABB TVOC-2 arc sensors mounted at busbar, cable compartment, and circuit breaker locations. Upon arc detection, the unit’s relay output triggers the trip coil of the associated ABB SACE Emax 2 or Tmax XT series circuit breaker within sub-millisecond response times — a speed that no conventional overcurrent relay can match.

At the control layer, the TVOC-2-240 binary outputs connect to ABB AC500 PLC digital input modules (such as the DI524 or DI572), enabling the PLC to log arc flash events, initiate automated load shedding sequences, and generate maintenance alerts. The AC500 CPU — for example the PM573 or PM591 — processes these inputs alongside signals from ABB REF615 feeder protection relays and REM615 motor protection relays, creating a unified protection and control response that spans the entire switchgear lineup.

For facilities requiring SCADA integration, the AC500 communicates upstream via CI840A PROFIBUS DP or CI854 PROFINET interfaces, transmitting arc flash event data to ABB System 800xA or third-party DCS platforms. This architecture ensures that arc flash events are not only responded to locally but are also recorded, analyzed, and reported at the supervisory level — supporting both real-time operations and long-term maintenance planning.

Power supply integrity is maintained through ABB CP-S series DIN-rail power supplies, which provide stable 24 V DC auxiliary power to the TVOC-2-240 and associated I/O modules. In redundant architectures, dual CP-S units with diode ORing modules ensure uninterrupted protection even during power supply maintenance or failure.

Industrial Application Notes

The ABB 1SFA664001R1001 is deployed across a wide range of industrial sectors where arc flash risk in medium and low voltage switchgear must be managed within a broader automation architecture.

In power generation and distribution facilities, the TVOC-2-240 protects generator switchboards, transformer feeders, and bus-tie panels — environments where arc flash incidents can cause extended outages and significant equipment damage. Its sub-millisecond response time limits arc energy to levels that preserve switchgear integrity and allow rapid return to service.

In petrochemical and refinery installations, the unit is integrated into motor control centers (MCCs) and process switchgear panels, where it works alongside ABB REF630 and REF650 protection relays to provide zone-selective arc flash protection across complex busbar arrangements. The TVOC-2-240’s ability to monitor multiple sensor zones from a single unit simplifies panel design and reduces wiring complexity in hazardous area installations.

In water and wastewater treatment plants, the 1SFA664001R1001 is installed in pump station switchgear and treatment facility MCCs, providing arc flash protection that integrates with ABB AC500 PLCs managing pump sequencing, level control, and SCADA reporting. The unit’s wide auxiliary supply range (100–240 V AC/DC) accommodates the varied power supply configurations found across distributed water infrastructure sites.

In mining and metals processing applications, the TVOC-2-240 protects high-current switchgear feeding crushers, conveyors, and hoists — equipment where unplanned outages have significant production cost implications. Its DIN-rail mounting and robust operating temperature range make it suitable for installation in surface and underground electrical rooms.

In manufacturing and packaging facilities, the unit is integrated into production line switchgear panels alongside ABB S800 I/O modules and AC500 PLCs, enabling arc flash protection data to be incorporated into overall equipment effectiveness (OEE) monitoring and predictive maintenance programs.

Product Compatibility FAQ

Q1: Is the ABB 1SFA664001R1001 compatible with existing ABB REF615 and REF630 protection relay installations?
Yes. The TVOC-2-240 is designed for direct integration with ABB REF615, REF630, and REF650 series protection relays. Its relay output contacts can be wired to the binary inputs of these relays to initiate coordinated tripping sequences, or used independently to drive circuit breaker trip coils directly. No additional interface modules are required for basic integration, and the unit’s binary I/O architecture ensures compatibility with both new installations and retrofit projects on existing ABB protection relay platforms.

Q2: Can the TVOC-2-240 be integrated into an ABB AC500 PLC-based control system for SCADA reporting?
Yes. The 1SFA664001R1001’s relay output and signal contacts connect directly to ABB AC500 digital input modules such as the DI524 or DI572. The AC500 CPU then processes arc flash event signals alongside other process data and transmits them to SCADA or DCS platforms via CI840A PROFIBUS DP or CI854 PROFINET communication interfaces. This integration enables real-time arc flash event logging, alarm generation, and post-fault reporting within the existing automation architecture without requiring dedicated arc flash monitoring software.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the TVOC-2-240?
The warranty terms confirmed during quotation provided by ZYPLC covers the ABB 1SFA664001R1001 against manufacturing defects and operational failures under normal installation and operating conditions. ZYPLC maintains availability subject to RFQ confirmation of the TVOC-2-240 and complementary system components — including TVOC-2 arc sensors, REF615 protection relays, AC500 CPU modules, and S800 I/O modules — to support both immediate replacement needs and long-term spare parts programs. For engineering teams managing multi-site or long-lifecycle installations, ZYPLC offers procurement support and technical consultation to ensure continued system availability throughout the product lifecycle.
