ABB 1SFA899020R2500 Softstarter Circuit Board

ABB 1SFA899020R2500 Softstarter Circuit Board for PSR Series Automation

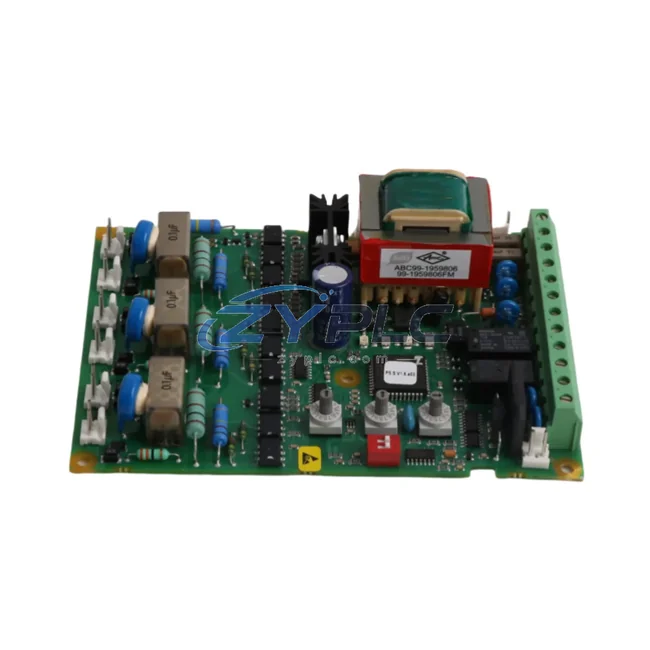

The ABB 1SFA899020R2500 PSPCB-500C/S is a precision-engineered softstarter circuit board designed to maximize motor control efficiency, reduce energy consumption during start-stop cycles, and extend the operational lifespan of drive systems in demanding industrial environments. As a core control component within the ABB PSR and PSTB softstarter families, this board directly governs thyristor firing sequences, current ramp profiles, and thermal protection logic — making it a critical element in any industrial automation system.

In modern manufacturing, uncontrolled motor starts are one of the leading causes of excessive energy draw and mechanical wear. The PSPCB-500C/S addresses this by enabling smooth, controlled acceleration and deceleration, eliminating inrush current spikes that can reach 6–8× full-load amperage. By replacing or restoring a faulty control board with the 1SFA899020R2500, facilities can immediately recover the energy efficiency performance that the original ABB softstarter was designed to deliver.

Product Specification Table

System Compatibility and Application

The PSPCB-500C/S does not operate in isolation — it is the intelligence layer within a broader maintenance planning system. In a typical production line, this board interfaces directly with the ABB PSR16, PSR25, or PSR45 softstarter main power unit, receiving control signals from upstream PLCs such as the ABB AC500 series or Siemens S7-1200, and coordinating motor ramp-up sequences based on process demand.

On the drive side, the board’s thyristor control logic works in concert with the softstarter’s power stack to regulate voltage application to three-phase induction motors. When paired with an ABB ACS355 or ACS580 variable frequency drive in hybrid drive architectures, the PSPCB-500C/S handles the soft-start phase while the VFD manages steady-state speed regulation — a combination that delivers measurable reductions in both peak energy demand and thermal stress on motor windings.

For condition monitoring and reporting, the board’s operational data can be integrated into power measurement systems such as the ABB B23 energy meter or the ABB M2M gateway, enabling real-time tracking of motor start energy, run-time hours, and fault events. This data feeds into SCADA platforms or MES systems via Modbus RTU or PROFIBUS DP communication modules, providing plant engineers with actionable visibility into energy consumption at the drive level.

On the I/O side, the PSPCB-500C/S interfaces with digital input modules — such as ABB’s DC532 or compatible third-party I/O blocks — to receive start/stop commands, bypass signals, and fault acknowledgment inputs. The board’s onboard protection logic monitors motor current, phase imbalance, and thermistor inputs, triggering protective shutdowns before thermal damage occurs. This reduces unplanned downtime and the associated unplanned downtime of emergency restarts and manual resets.

HMI integration is equally straightforward: operators using an ABB CP600 panel or a Siemens TP700 Comfort HMI can monitor softstarter status, adjust ramp times, and review fault history without accessing the control cabinet directly. This remote visibility supports predictive maintenance workflows and reduces the frequency of on-site inspections.

Maintenance and Replacement Notes

Consider a bottling plant running six conveyor motors on a single production line. Without proper soft-start control, each motor start draws a current surge that stresses the facility’s power infrastructure, causes voltage dips that affect neighboring equipment, and accelerates belt and coupling wear. Replacing a failed PSPCB-500C/S board restores the controlled ramp profile that keeps each motor start within safe current limits — typically reducing start-up energy draw by 30–50% compared to direct-on-line starting.

In HVAC applications, where centrifugal pumps and fans run continuously, the operational stability compound over time. A pump motor that starts smoothly via a properly functioning PSR softstarter experiences less water hammer, lower bearing loads, and reduced seal wear — translating directly into longer mean time between failures (MTBF) and lower maintenance costs per operating hour.

For compressor applications in automotive or food processing plants, the PSPCB-500C/S enables precise control of start torque, preventing mechanical shock loads that can damage couplings and gearboxes. Combined with the softstarter’s built-in motor protection functions — overload, phase loss, thermistor — the board acts as both an energy efficiency tool and a machine protection system.

From a supply chain perspective, stocking the 1SFA899020R2500 as a critical spare reduces mean time to repair (MTTR) when a softstarter fault occurs. Every hour of unplanned downtime on a production line carries an energy cost — idle equipment, climate control running without productive output, and restart energy spikes when production resumes. Having a tested, warranty-backed replacement board on hand is a direct investment in production continuity and energy efficiency.

All units supplied by ZYPLC undergo pre-shipment functional testing to verify control logic integrity, thyristor gate drive signals, and protection circuit response. Each board ships with a warranty terms confirmed during quotation, covering defects in materials and workmanship under normal operating conditions.

Product Sourcing FAQ

Q1: How does the PSPCB-500C/S reduce energy consumption compared to direct-on-line motor starting?
The board controls the thyristor firing angle to gradually ramp motor voltage from near-zero to full supply voltage over a configurable time period. This eliminates the inrush current spike — typically 6–8× full-load current — that occurs with direct-on-line starting, reducing peak demand charges and lowering thermal stress on motor windings and connected mechanical components.

Q2: Which ABB softstarter models is the 1SFA899020R2500 compatible with?
The PSPCB-500C/S is designed for use within the ABB PSR and PSTB softstarter series. Based on the SKU designation, it is specifically matched to the 500A control board variant. If you are unsure of compatibility with your specific softstarter frame size or firmware revision, please contact our technical team with your full softstarter nameplate data before ordering.

Q3: What is the recommended replacement and testing procedure?
Before replacement, de-energize the softstarter and verify zero voltage at the control terminals. Remove the existing board by disconnecting the ribbon cable and terminal connectors, noting their positions. Install the PSPCB-500C/S, reconnect all connectors, and perform a no-load test run to verify correct ramp-up behavior and fault-free operation before returning the motor to full production load. ZYPLC provides pre-shipment test reports on request.

Q4: What does the warranty terms confirmed during quotation cover, and how is a warranty claim processed?
The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the board’s rated parameters. To initiate a warranty claim, contact ZYPLC with your order number, a description of the fault symptom, and photos of the installed board. Replacement or repair will be arranged within the agreed lead time.
