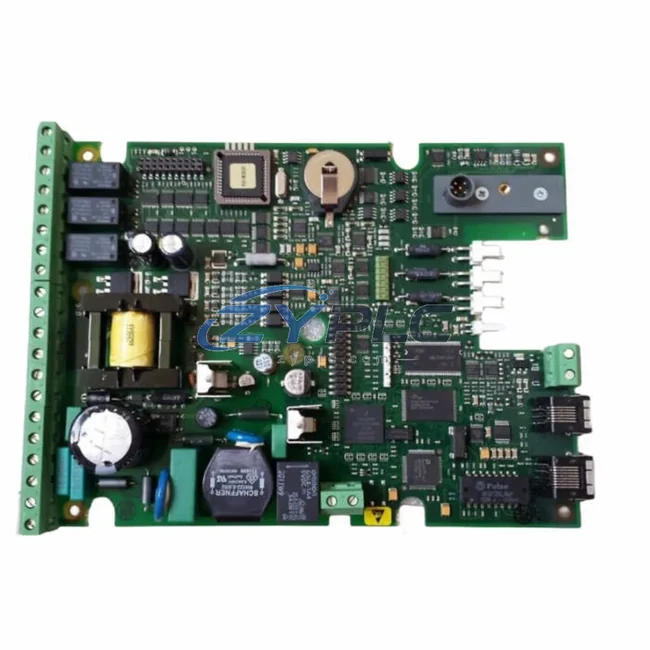

ABB 1SFB536068D1011 Soft Starter for PST/PSTB

ABB 1SFB536068D1011 Soft Starter for PST/PSTB

The ABB 1SFB536068D1011 is a precision-engineered soft starter module designed to operate as a core motor control element within the ABB PST and PSTB soft starter series. In modern industrial automation, motor starting performance is not an isolated concern — it is a system-level discipline. This module is built to integrate seamlessly across the control layer, I/O layer, power layer, and field device layer, ensuring that every motor start event is coordinated, protected, and traceable within the broader automation architecture.

When deployed in a layered control system, the 1SFB536068D1011 interfaces directly with the upstream PLC or DCS controller — such as an ABB AC500 series CPU or a Siemens S7-300/S7-400 controller — through hardwired digital I/O or fieldbus communication. The module receives run/stop commands, transmits motor status feedback, and participates in the system’s fault management logic. This bidirectional signal flow ensures that the motor starting sequence is fully visible to the supervisory control layer, enabling real-time diagnostics and remote intervention without physical access to the motor control center (MCC).

At the power layer, the 1SFB536068D1011 works in conjunction with upstream circuit breakers, motor protection relays such as the ABB UMC100 or ABBEF series, and downstream contactors to form a complete motor starting chain. The soft starter’s ramp-up and ramp-down functions reduce mechanical stress on couplings, gearboxes, and driven equipment, extending the service life of the entire drivetrain. In applications where multiple motors share a common bus, the coordinated starting sequence managed through this module prevents voltage sag and protects adjacent drives and variable frequency drives (VFDs) from transient disturbances.

The 1SFB536068D1011 supports system integration — meaning it is not simply a standalone device but a functional node within a coordinated control architecture. Its parameter set can be configured and monitored through ABB’s system tools, and its status can be mapped to SCADA or HMI displays such as the ABB CP600 panel or third-party HMI terminals via the PLC’s communication gateway. This integration capability ensures that operators have full visibility of motor starting conditions, thermal load history, and fault records from a centralized interface.

For redundancy-critical applications, the module can be installed in parallel with a bypass contactor arrangement, allowing the system to maintain motor operation even during soft starter maintenance or replacement. This architecture is commonly used in water treatment pump stations, chemical dosing systems, and continuous process lines where unplanned downtime carries significant operational cost. The 1SFB536068D1011’s compact form factor and standard DIN rail or panel mounting options simplify integration into existing MCC cabinets without requiring structural modification.

From an engineering commissioning perspective, the module’s parameter configuration is straightforward, with adjustable current ramp time, initial voltage, and kick-start settings that allow engineers to optimize the starting profile for each specific motor and load type. These parameters can be set via the front panel interface or through connected configuration tools, reducing commissioning time and enabling rapid replication across multiple identical motor circuits in large-scale installations such as mining conveyor systems, HVAC air handling units, or packaging line drives.

Long-term maintenance is simplified by the module’s self-diagnostic capability, which monitors thyristor health, thermal status, and phase balance continuously. Maintenance teams can retrieve fault history logs to identify recurring issues before they escalate to unplanned failures. Combined with a reliable spare parts supply chain and a warranty terms confirmed during quotation covering manufacturing defects and component failures, the 1SFB536068D1011 represents a low total-cost-of-ownership solution for motor control in demanding industrial environments.

Product Specification Table

System Compatibility Notes

The 1SFB536068D1011 achieves its full performance potential when deployed as part of a coordinated control system rather than as a standalone device. In a typical MCC-based architecture, the soft starter module sits between the upstream motor protection relay — such as the ABB UMC100 universal motor controller or the ABB EF series electronic overload relay — and the downstream motor terminals. The protection relay monitors thermal overload, phase loss, and ground fault conditions, while the soft starter manages the voltage ramp profile during starting and stopping.

At the control layer, an ABB AC500 PLC or equivalent controller issues start/stop commands to the soft starter via hardwired digital outputs or a PROFIBUS DP / Modbus RTU communication link, depending on the system architecture. The PLC also receives motor running status, fault signals, and thermal warning outputs from the soft starter, integrating these into the plant-wide control logic. For larger installations, a PROFINET or EtherNet/IP gateway module may be used to bridge the soft starter’s native communication interface with the plant’s Ethernet-based control network.

Power distribution to the soft starter is typically managed through an ABB SACE Tmax or Emax series molded case circuit breaker (MCCB), which provides upstream short-circuit protection and isolation capability. In redundant architectures, a bypass contactor — such as an ABB AF series contactor — is wired in parallel with the soft starter to allow full-voltage motor operation during soft starter bypass mode or maintenance periods. The bypass logic is managed by the PLC, ensuring seamless transition without motor interruption.

At the HMI layer, motor status, soft starter parameters, and fault history are displayed on an ABB CP600 operator panel or equivalent HMI terminal, connected to the PLC via Ethernet or serial communication. Operators can monitor current ramp progress, thermal load percentage, and accumulated start count from the HMI without accessing the MCC cabinet. This remote visibility is particularly valuable in hazardous area installations such as petrochemical plants or offshore platforms where physical access to the MCC is restricted.

Terminal modules and marshalling components — such as ABB’s XTIO series terminal blocks or Phoenix Contact PTFIX distribution blocks — are used to organize the control wiring between the soft starter, protection relay, PLC I/O modules, and field devices. Proper terminal organization reduces commissioning time, simplifies fault tracing, and ensures that future modifications can be made without disrupting adjacent circuits.

Industrial Application Notes

The ABB 1SFB536068D1011 is suited for deployment across a wide range of industrial sectors where controlled motor starting is critical to process stability and equipment longevity.

In water treatment and pumping stations, the soft starter prevents water hammer in pipeline systems by controlling the acceleration rate of centrifugal pumps. Multiple pump motors can be started in sequence under PLC coordination, with each soft starter reporting its status to the SCADA system for remote monitoring and alarm management.

In power generation and electrical utilities, the module is used to start auxiliary motors such as cooling fans, oil pumps, and compressors associated with generators and transformers. The soft start function reduces inrush current, protecting the plant’s electrical distribution system from voltage disturbances during motor starting.

In mining and mineral processing, conveyor belt drives, crusher motors, and slurry pump motors benefit from the controlled torque ramp provided by the soft starter. The ability to adjust the starting profile for each motor type ensures that mechanical components are not subjected to shock loads during starting, reducing maintenance frequency and extending equipment life.

In petrochemical and chemical processing, the 1SFB536068D1011 is integrated into motor control centers serving agitators, compressors, and process pumps. The module’s fault logging capability supports compliance with process safety management requirements by providing a traceable record of motor starting events and fault occurrences.

In packaging and manufacturing lines, the soft starter enables smooth starting of conveyor motors, indexing drives, and material handling equipment, preventing product spillage or misalignment caused by abrupt motor acceleration. Integration with the line PLC allows the soft starter to participate in the line’s coordinated start/stop sequence, ensuring that all drives are synchronized during production startup and shutdown.

Product Compatibility FAQ

Q1: Is the ABB 1SFB536068D1011 compatible with third-party PLCs and DCS systems?
A: Yes. The 1SFB536068D1011 is compatible with third-party control systems through its hardwired digital I/O interface, which accepts standard 24VDC control signals. For fieldbus integration, compatibility depends on the communication module fitted to the PST/PSTB soft starter. PROFIBUS DP, Modbus RTU, and DeviceNet options are available within the PST/PSTB series, allowing integration with Siemens, Rockwell, Schneider, and other major PLC platforms. Always verify the communication module part number against your control system’s supported protocols before ordering.

Q2: Can this module be used in a redundant motor control architecture with automatic bypass?
A: Yes. The 1SFB536068D1011 supports bypass contactor arrangements where an ABB AF series or equivalent contactor is wired in parallel with the soft starter output. Once the motor reaches full speed, the PLC can command the bypass contactor to close, transferring the motor to direct-on-line operation while the soft starter remains in standby. This architecture is recommended for applications where continuous motor operation is required and soft starter availability must not be a single point of failure. The bypass logic must be implemented in the PLC program, and the transition timing should be configured to avoid current transients during switchover.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for commissioning and long-term maintenance?
A: The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters. For commissioning support, our technical team can provide parameter setting guidance, wiring diagram review, and remote diagnostic assistance. For long-term maintenance, we recommend maintaining a spare 1SFB536068D1011 module in your MCC spare parts inventory to minimize downtime in the event of a module failure. Replacement modules are available from stock with short lead times to support your maintenance planning.
