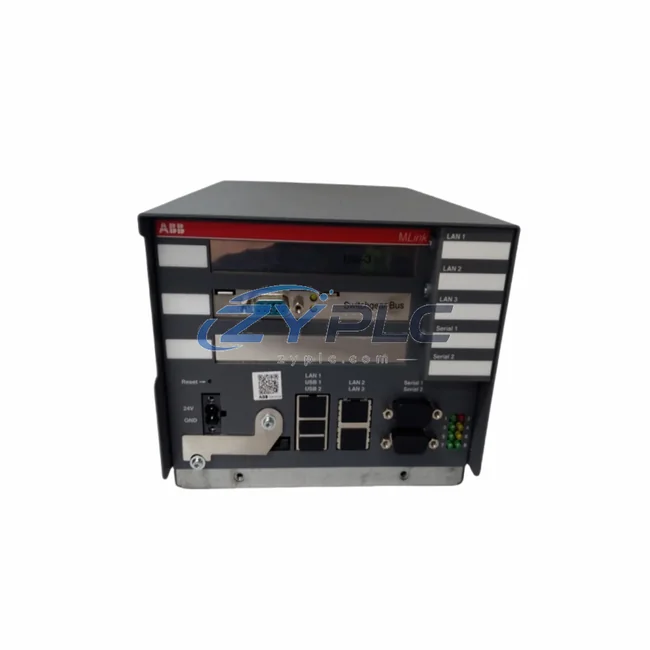

ABB 1TGE120021R0010 Excitation Unit for UNITROL 1000 Series

ABB 1TGE120021R0010 Excitation Unit for UNITROL 1000 Series: Control System and system integration

The ABB 1TGE120021R0010 is a precision-engineered excitation control unit designed as a core component within the ABB UNITROL 1000 automatic voltage regulator (AVR) platform. Rather than functioning as a standalone device, this unit is architected to operate within a layered industrial control hierarchy — coordinating signal flow between the generator excitation layer, the supervisory control layer, and the broader power management infrastructure. Its role in maintaining voltage stability, reactive power balance, and generator synchronization makes it indispensable in any system where uptime, consistency, and long-term maintainability are engineering priorities.

In modern industrial automation, excitation control is not an isolated function. The 1TGE120021R0010 interfaces directly with the UNITROL 1000 regulator chassis, receiving setpoint commands from higher-level SCADA or DCS platforms and translating them into precise field current adjustments. This system integration ensures that the excitation response is always aligned with the real-time demands of the connected power system — whether that system is a synchronous generator in a cogeneration plant, a hydro turbine in a utility substation, or a diesel genset in a remote industrial facility.

From a system architecture perspective, the 1TGE120021R0010 sits at the intersection of the control layer and the power conversion layer. It receives analog and digital signals from upstream measurement transformers and protection relays, processes them through the UNITROL 1000 regulation algorithm, and outputs controlled excitation current to the generator field winding. This signal chain must be engineered with precision — any latency, noise, or misconfiguration at the excitation control level propagates directly into voltage instability at the generator terminals.

Engineers specifying this unit for new installations or replacement projects benefit from ABB’s commitment to backward compatibility within the UNITROL 1000 platform. The 1TGE120021R0010 is designed to integrate with existing UNITROL 1000 hardware configurations without requiring full system redesign, reducing commissioning time and minimizing the risk of compatibility-related downtime. This makes it a preferred choice for maintenance engineers managing aging generator control infrastructure who need a reliable, drop-in replacement with documented performance characteristics.

Supply chain reliability is a critical consideration for industrial control system operators. The 1TGE120021R0010 is stocked and available for shipment arranged after confirmation, supported by a warranty terms confirmed during quotation covering manufacturing defects and functional performance. This warranty commitment reflects the quality assurance standards applied throughout the ABB UNITROL product line and provides procurement teams with the confidence needed to specify this unit in long-term maintenance contracts and capital replacement programs.

Product Specification Table

System Compatibility Notes

The 1TGE120021R0010 achieves its full performance potential when integrated within a coherent UNITROL 1000 system architecture. A typical deployment involves the following coordinated components:

At the regulation core, the UNITROL 1000 AVR mainframe provides the processing backbone, with the 1TGE120021R0010 serving as the dedicated excitation control module. The ABB UNITROL 1000-PC power converter module works in tandem to deliver the field current output commanded by the control unit, ensuring that voltage regulation response times meet the dynamic requirements of the connected generator.

The measurement input layer typically includes ABB voltage transformers (VTs) and current transformers (CTs) that feed real-time generator terminal voltage and current data into the UNITROL 1000 regulation loop. Accurate measurement at this layer is essential — the 1TGE120021R0010 relies on clean, calibrated input signals to maintain tight voltage regulation within the specified droop and accuracy bands.

For systems requiring redundancy, the UNITROL 1000 platform supports dual-channel AVR configurations. A secondary ABB UNITROL 1000 channel or a standby excitation control module can be configured to take over automatically in the event of a primary channel fault, ensuring continuous generator excitation without manual intervention. This redundancy architecture is particularly important in utility-grade power generation and critical industrial facilities where generator outages carry significant operational and financial consequences.

At the supervisory layer, the 1TGE120021R0010 integrates with ABB Ability SCADA systems or third-party DCS platforms via the UNITROL 1000 communication interface. Setpoint adjustments, alarm acknowledgments, and operational mode changes can be executed remotely, reducing the need for on-site intervention during normal operations. The ABB Panel Builder or compatible HMI terminals provide local operator interface capability, displaying real-time excitation status, voltage setpoints, and alarm conditions.

Protection coordination is handled through integration with ABB REG series protection relays or equivalent generator protection devices. These relays monitor for conditions such as loss of excitation, over-excitation, and under-voltage, and can issue trip or limit commands to the UNITROL 1000 system to protect the generator and connected network. The 1TGE120021R0010 is designed to respond correctly to these protection signals, ensuring that excitation is reduced or removed in a controlled manner during fault conditions.

Terminal modules and ABB marshalling panels complete the wiring infrastructure, providing organized connection points for the analog and digital signals that flow between the 1TGE120021R0010, the measurement layer, the protection layer, and the supervisory systems. Proper terminal organization is essential for long-term maintainability — it allows maintenance engineers to isolate, test, and replace individual components without disturbing the broader system wiring.

Industrial Application Notes

The ABB 1TGE120021R0010 finds application across a wide range of industrial sectors where synchronous generator control is a critical operational requirement.

In power generation and utility substations, this unit is deployed in hydro, thermal, and diesel generator sets where precise voltage regulation is required to maintain grid stability and reactive power balance. The UNITROL 1000 platform’s proven performance in utility environments makes the 1TGE120021R0010 a trusted choice for both new installations and life-extension projects on aging generator control systems.

In oil, gas, and petrochemical facilities, generator excitation control is a safety-critical function. The 1TGE120021R0010 supports the reliable operation of onsite power generation systems that provide essential power to process control equipment, safety systems, and emergency loads. Its compatibility with the UNITROL 1000 redundancy architecture ensures that excitation control remains available even during component maintenance or failure events.

In mining and metallurgical operations, large synchronous motors and generators are central to ore processing, conveyor systems, and smelting operations. The 1TGE120021R0010 contributes to the stable operation of these machines by maintaining precise excitation control under varying load conditions, reducing the risk of voltage instability that could disrupt production processes.

In water treatment and pumping stations, the unit supports the reliable operation of large pump motors driven by synchronous generators, ensuring consistent water pressure and flow rates across distribution networks. In manufacturing and packaging production lines, it contributes to the power quality required by sensitive process equipment, reducing voltage-related production interruptions.

Product Compatibility FAQ

Q1: Is the ABB 1TGE120021R0010 compatible with all UNITROL 1000 system configurations?
The 1TGE120021R0010 is designed for use within the ABB UNITROL 1000 AVR platform. Compatibility with specific system configurations depends on the firmware version, hardware revision, and the overall system architecture of the installed UNITROL 1000 chassis. Engineers should verify the hardware revision of the existing UNITROL 1000 mainframe and cross-reference with ABB’s compatibility documentation before installation. Our technical team can assist with compatibility verification prior to procurement.

Q2: What commissioning steps are required when integrating the 1TGE120021R0010 into an existing control architecture?
Commissioning typically involves verifying input signal calibration (VT and CT ratios), configuring voltage setpoints and droop settings within the UNITROL 1000 software environment, testing the communication interface with the supervisory SCADA or DCS system, and performing a staged load test to confirm regulation performance. ABB’s UNITROL 1000 commissioning documentation provides detailed step-by-step procedures. For complex installations or redundancy configurations, on-site commissioning support from a qualified ABB-trained engineer is recommended.

Q3: What does the warranty terms confirmed during quotation cover, and how is a warranty claim initiated?
The warranty terms confirmed during quotation covers manufacturing defects and functional performance failures under normal operating conditions as specified in the ABB UNITROL 1000 platform documentation. It does not cover damage resulting from incorrect installation, operation outside specified environmental limits, or unauthorized modification. To initiate a warranty claim, contact our technical support team with the unit’s serial number, purchase documentation, and a description of the observed fault. Replacement or repair will be coordinated to minimize system downtime.
