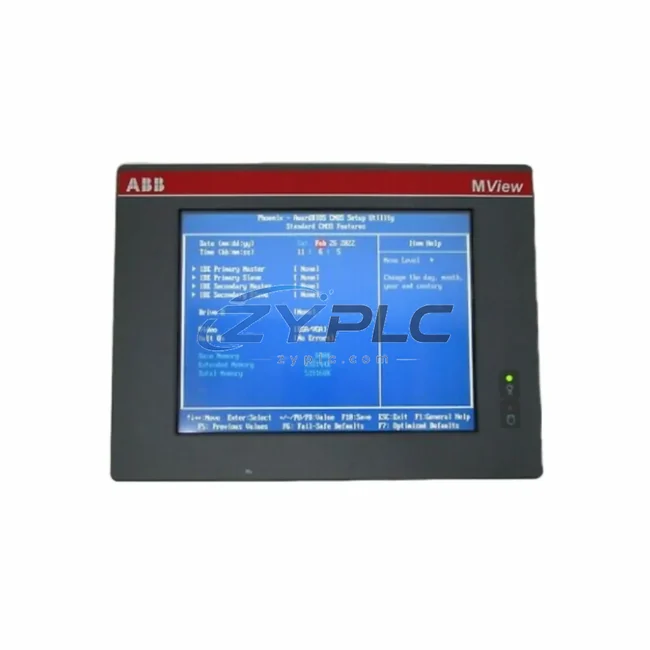

ABB 1TGE120025R0101 HMI Operator Panel for M-View Systems

ABB 1TGE120025R0101 Industrial Network Interface: Smart Factory Data Link for M-View Systems

The ABB 1TGE120025R0101 is a high-performance HMI operator panel from ABB’s M-View Series, engineered to serve as a critical industrial network interface node within modern smart factory architectures. Designed for demanding automation environments, this panel bridges the gap between field-level devices and upper-level control systems, enabling seamless, real-time data exchange across the entire production network. Whether deployed in discrete manufacturing, process control, or hybrid automation lines, the 1TGE120025R0101 delivers the communication reliability, protocol flexibility, and system integration depth that Industry 4.0 demands.

At its core, the ABB 1TGE120025R0101 functions as a convergence point for industrial data flows. Signal acquisition begins at the field device layer — sensors, actuators, and remote I/O modules transmit process values upward through standardized fieldbus and Ethernet-based protocols. The M-View panel receives, processes, and visualizes this data in real time, while simultaneously forwarding structured datasets to SCADA platforms, MES layers, and cloud-based analytics engines. This bidirectional data pipeline eliminates the communication dead zones that traditionally isolate field equipment from enterprise decision-making systems.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB 1TGE120025R0101 sits at the intersection of multiple automation layers. At the field level, ABB AC500 PLC controllers and ABB CI854 PROFIBUS communication interface modules aggregate I/O signals from distributed sensor networks and transmit structured process data to the M-View panel via PROFIBUS DP or PROFINET. Simultaneously, ABB ACS880 variable frequency drives report motor speed, torque, and fault status through EtherNet/IP, allowing operators to monitor drive health directly on the 1TGE120025R0101 display without requiring a separate engineering workstation.

Remote I/O expansion is handled through ABB S900 remote I/O modules, which extend the data acquisition reach to geographically dispersed field instruments — pressure transmitters, flow meters, temperature sensors — and relay their readings back to the M-View panel in real time. This architecture supports both star and ring Ethernet topologies, ensuring network redundancy and minimizing single-point-of-failure risks on critical production lines.

For SCADA integration, the 1TGE120025R0101 communicates upstream with ABB System 800xA distributed control systems via OPC UA, providing a standardized, secure data channel that supports both historical trending and real-time alarm management. Operators at the SCADA workstation receive live process snapshots, while the M-View panel simultaneously handles local operator interactions — setpoint adjustments, manual overrides, and alarm acknowledgment — without introducing latency into the control loop.

Edge computing scenarios are also well supported. When paired with an ABB Edge Controller or a third-party industrial edge gateway, the 1TGE120025R0101 can pre-process field data locally before forwarding aggregated datasets to cloud analytics platforms. This reduces upstream bandwidth consumption while maintaining sub-second response times for time-critical control actions. ABB CP600 control panels deployed elsewhere on the same network segment can share tag databases with the M-View unit, enabling consistent operator experiences across multiple HMI stations on the same production floor.

Power infrastructure for the 1TGE120025R0101 is typically sourced from ABB CP-E series DIN-rail power supplies, which provide stable 24 VDC output with built-in overvoltage and short-circuit protection — ensuring that HMI communication remains uninterrupted even during transient grid disturbances. The complete data chain — from field sensor through PLC, remote I/O, HMI, SCADA, and edge gateway — forms a fully transparent, auditable industrial network where every process variable is traceable, every alarm is logged, and every device is remotely diagnosable.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation. Legacy equipment often speaks proprietary fieldbus dialects — PROFIBUS, DeviceNet, Modbus RTU — while modern systems demand Ethernet-based protocols such as PROFINET, EtherNet/IP, and OPC UA. Without a capable HMI gateway at the center of the network, these protocol islands remain isolated, forcing operators to rely on manual data collection, paper-based reporting, and reactive maintenance strategies.

The ABB 1TGE120025R0101 directly addresses this challenge. Its multi-protocol communication stack allows it to simultaneously interface with legacy fieldbus devices and modern Ethernet-connected controllers, acting as a protocol translation hub that unifies disparate data streams into a single, coherent operational picture. Production managers gain real-time visibility into line throughput, equipment utilization, and energy consumption — data that was previously locked inside individual controllers and inaccessible to upper-level systems.

Remote monitoring and diagnostics are equally transformed. Maintenance engineers can access live device status, fault histories, and performance trends from any networked workstation or mobile device, eliminating the need for on-site inspections during off-hours. Alarm escalation logic built into the M-View platform ensures that critical fault conditions are immediately routed to the appropriate personnel, reducing mean time to repair and minimizing unplanned downtime.

System scalability is another key advantage. As production lines expand — adding new machine cells, robotic stations, or quality inspection systems — the 1TGE120025R0101 network architecture accommodates additional nodes without requiring a redesign of the existing communication infrastructure. New devices are simply enrolled into the existing PROFINET or EtherNet/IP network segment, and their data immediately becomes available to the SCADA layer and the M-View operator interface.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying communication link establishment, protocol handshake integrity, and display operation before dispatch. Every ABB 1TGE120025R0101 is covered by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring rapid fulfillment for both urgent replacement orders and planned project deployments.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 1TGE120025R0101 support, and is it compatible with existing PROFIBUS networks?
The ABB 1TGE120025R0101 M-View HMI panel supports a comprehensive protocol stack including PROFIBUS DP, PROFINET, Modbus TCP/RTU, EtherNet/IP, and OPC UA. It is fully compatible with existing PROFIBUS DP networks and can simultaneously maintain connections to both legacy fieldbus devices and modern Ethernet-based controllers, making it an ideal upgrade path for facilities transitioning from traditional fieldbus architectures to Industrial Ethernet without replacing existing field equipment.

Q2: How does the 1TGE120025R0101 perform in terms of communication latency for real-time control applications?
The M-View Series is designed for deterministic, low-latency communication in industrial control environments. PROFINET IRT (Isochronous Real-Time) mode supports cycle times as low as 1 ms, suitable for motion control and synchronized multi-axis applications. Standard PROFINET RT and EtherNet/IP modes deliver cycle times in the 1–10 ms range, meeting the requirements of the vast majority of process control and discrete manufacturing applications. OPC UA communication for SCADA integration operates asynchronously and does not impact real-time control loop performance.

Q3: Can the ABB 1TGE120025R0101 integrate with third-party SCADA systems, or is it limited to ABB System 800xA?
The 1TGE120025R0101 is not limited to ABB’s own SCADA ecosystem. Its OPC UA server capability allows it to connect to any OPC UA-compliant SCADA or MES platform, including Wonderware, Ignition, Siemens WinCC, and GE iFIX. Modbus TCP support further extends compatibility to legacy SCADA systems that do not yet support OPC UA. This open-protocol architecture ensures that the M-View panel can be integrated into mixed-vendor automation environments without requiring proprietary middleware or custom driver development.

Q4: What does the warranty terms confirmed during quotation cover, and has the unit been tested before shipment?
Every ABB 1TGE120025R0101 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects, communication hardware failures, and display malfunctions under normal operating conditions. Prior to dispatch, each unit undergoes a pre-shipment functional test that verifies Ethernet link establishment, protocol communication handshake, touchscreen or keypad response, and power-on self-test completion. Units that do not pass all test criteria are quarantined and not shipped. Availability is confirmed via RFQ for same-day or next-business-day dispatch upon order confirmation.
