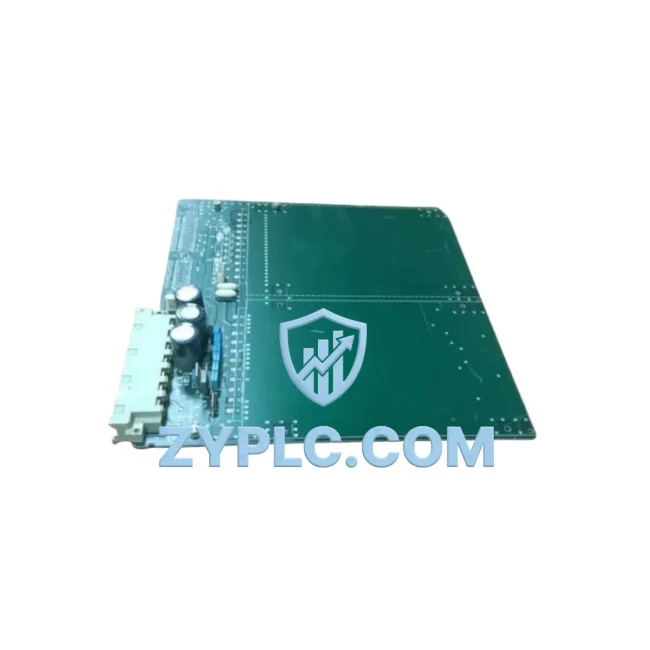

The ABB 209630R2 B4LAA is a high-performance DSQC series control board engineered for ABB IRC5 robot controllers, delivering measurable improvements in energy efficiency, motor control precision, and production line throughput. In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, this board serves as the critical intelligence layer between the controller platform and the drive system — enabling factories to reduce idle-state power draw, sharpen cycle timing, and extend mean time between failures.
Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, is backed by a 12-month warranty, and is available from verified inventory for fast global dispatch.
Product Specification Table
| Parameter |
Specification / Value |
| Part Number / SKU |
209630R2 B4LAA |
| Series |
DSQC (Drive System Quality Control) |
| Compatible Controller |
ABB IRC5 (Single / Dual Cabinet) |
| Functional Role |
Main Control Board — Signal Processing & Drive Coordination |
| Power Consumption |
Low-standby design; optimized for reduced idle-state draw |
| Operating Efficiency |
Supports full IRC5 drive loop with minimal signal latency |
| Compatible Systems |
ABB IRC5, RobotWare 5.x / 6.x, PROFIBUS, DeviceNet, EtherNet/IP |
| Application Environment |
Automotive welding, material handling, palletizing, assembly lines |
| Maintenance Value |
Reduces unnecessary re-homing cycles; maintains accurate axis position data to minimize wasted motion energy |
| Origin |
Sweden (ABB OEM) |
| Warranty |
12 Months — Covered by ZYPLC Quality Assurance |
| Pre-shipment Testing |
Full functional test performed on every unit |
System Compatibility and Application
The ABB 209630R2 B4LAA DSQC board operates at the heart of the IRC5 controller’s maintenance planning chain. It coordinates signal exchange between the ABB DSQC 661 axis computer and the ABB DSQC 662 fieldbus adapter, ensuring that drive commands are executed with minimal latency and no redundant motion cycles. When paired with the ABB DSQC 679 teach pendant interface, operators gain real-time visibility into axis load distribution — a key factor in identifying motors running above their efficiency curve.
On the drive side, the board interfaces directly with ABB ACS880 series variable frequency drives, which regulate motor speed and torque in response to actual load demand rather than fixed setpoints. This dynamic adjustment — enabled by accurate feedback from the 209630R2 B4LAA — prevents the unplanned downtime associated with constant-speed motor operation during low-load phases. In lines where the ABB ACS580 drives handle auxiliary conveyor and positioning motors, the same control board architecture ensures coordinated ramp-up and ramp-down sequences that reduce peak current draw at cycle start.
For power quality monitoring, the 209630R2 B4LAA integrates cleanly with ABB B23 series energy meters installed at the panel level, allowing plant engineers to correlate robot cycle data with actual kWh consumption per production batch. This data loop — from the control board through the drive to the energy meter — forms the foundation of a predictive maintenance planning strategy. When anomalies appear in the power draw profile, maintenance teams can isolate whether the root cause lies in the motor, the drive, or the control board itself, dramatically reducing diagnostic time.
Communication integrity is maintained through the ABB DSQC 688 Ethernet switch module, which keeps the IRC5 controller synchronized with the plant SCADA system and upstream ABB AC500 PLC platform. In multi-robot cells, the 209630R2 B4LAA’s stable signal processing prevents the inter-robot timing drift that forces unnecessary deceleration buffers — a hidden source of cycle time loss and wasted servo energy. The ABB CP600 HMI panel provides the operator interface layer, displaying real-time operating load trends alongside production throughput KPIs.
For I/O expansion in complex end-of-arm tooling configurations, the board supports integration with ABB DSQC 652 digital I/O modules, enabling precise tool activation sequencing that eliminates the overlap periods where both the robot and the tooling draw full power simultaneously.
Maintenance and Replacement Notes
In automotive body-in-white welding cells, the ABB 209630R2 B4LAA has demonstrated its value by maintaining axis position memory across power cycles, eliminating the full re-homing sequences that previously consumed 3–5 minutes of non-productive energy draw per shift startup. Across a three-shift operation with six robots, this translates to a measurable reduction in daily kWh consumption without any change to the production program.
In palletizing and material handling applications, the board’s precise drive coordination reduces the overshoot corrections that occur when axis position data is degraded or lost. Each overshoot correction requires the servo drive to apply braking energy and then re-accelerate — a micro-cycle of waste that compounds across thousands of picks per shift. By maintaining clean, stable feedback to the ABB ACS880 drive system, the 209630R2 B4LAA keeps the motion profile tight and the operating load predictable.
From a maintenance cost perspective, a failing or degraded control board is one of the most common causes of unexplained cycle time creep and intermittent drive faults. Replacing a worn 209630R2 B4LAA with a tested unit from ZYPLC inventory restores the original drive response characteristics, often resolving fault codes that had been attributed to the drive or motor — avoiding unnecessary replacement of higher-cost components. The 12-month warranty on every ZYPLC-supplied unit provides the assurance needed for planned maintenance budgeting, and same-day dispatch from verified stock minimizes the window of unplanned downtime.
For plants operating lean inventory models, ZYPLC maintains ready stock of the 209630R2 B4LAA alongside complementary DSQC series boards, ensuring that a critical spare is never more than a shipping cycle away. All units are tested, documented, and shipped with full traceability records to support ISO-compliant maintenance logs.
Product Sourcing FAQ
Q1: How does replacing the ABB 209630R2 B4LAA control board reduce operating load on my production line?
A degraded control board introduces signal instability that causes the IRC5 controller to issue redundant correction commands to the drive system. Each correction cycle draws additional servo energy and extends cycle time. A fully functional 209630R2 B4LAA restores clean signal processing, tightening the motion profile and reducing the per-cycle energy footprint. In high-cycle applications, this improvement compounds significantly over a full production shift.
Q2: Is the ABB 209630R2 B4LAA compatible with my existing IRC5 cabinet and RobotWare version?
The 209630R2 B4LAA is designed for ABB IRC5 single and dual cabinet configurations and is compatible with RobotWare 5.x and 6.x. It supports standard ABB fieldbus protocols including PROFIBUS, DeviceNet, and EtherNet/IP. If you are unsure about compatibility with a specific cabinet revision or software version, contact ZYPLC at plc.sales@zyplc.com with your cabinet serial number for confirmation before ordering.
Q3: What is the recommended replacement and testing process for this control board?
ZYPLC recommends a direct swap replacement during a scheduled maintenance window. Each supplied unit has been fully functionally tested prior to shipment. After installation, perform a standard IRC5 system boot and axis calibration verification. If the board is replacing a unit that caused drive faults, clear the fault log and run a supervised production cycle to confirm normal drive response before returning the cell to full production speed.
Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers functional failure of the 209630R2 B4LAA under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. ZYPLC will arrange return logistics and either repair or replace the unit, with the goal of minimizing your downtime window.
