ABB 321131-A01 Industrial Network Interface for RMIO Series Systems

ABB 321131-A01 Industrial Network Interface for RMIO Series Systems: Enabling Smart Factory Data Links

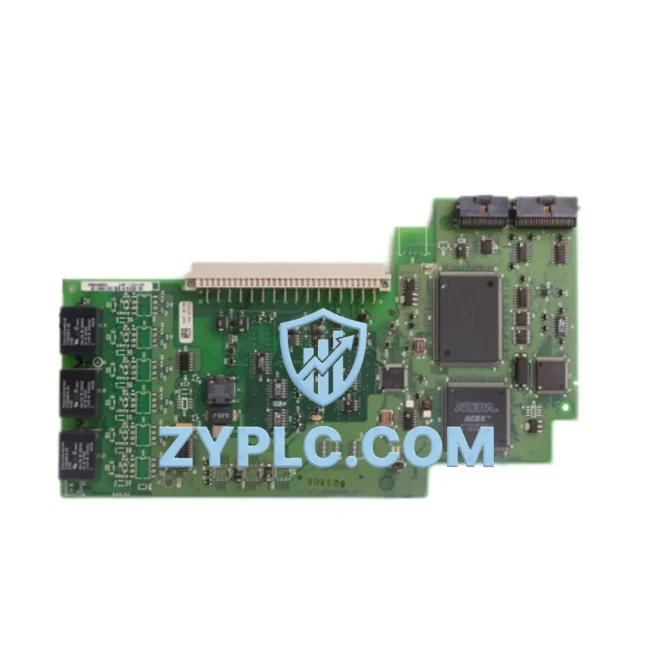

The ABB 321131-A01 is a high-performance RMIO series fieldbus communication module engineered to serve as the critical network interface between ABB ACS800 and ACS600 variable frequency drives and the broader industrial automation ecosystem. Designed for demanding smart factory environments, this module bridges the gap between drive-level signal processing and plant-wide data infrastructure — enabling seamless protocol conversion, real-time monitoring, and remote diagnostics across complex multi-vendor networks.

In modern industrial sites, the ability to integrate drive systems into SCADA, DCS, and HMI platforms is no longer optional — it is the foundation of operational transparency. The ABB 321131-A01 fulfills this role by providing a standardized fieldbus interface that connects the ACS800 drive’s internal data bus to external communication networks, allowing engineers to read drive parameters, monitor motor status, issue control commands, and receive fault alarms — all in real time, without interrupting production.

Network Communication Table

Connected Automation Data Flow

The ABB 321131-A01 sits at the heart of a layered industrial data architecture. At the field level, sensors and encoders feed real-time process signals — speed, torque, current, temperature — directly into the ACS800 drive. The RMIO module then translates these drive-internal signals into standardized fieldbus messages that travel upstream through the plant network.

In a typical smart factory deployment, the 321131-A01 connects the ACS800 drive to a PROFIBUS-DP network segment managed by a Siemens S7-300 or S7-400 PLC acting as the DP master. The PLC cyclically polls the drive for process values and issues speed or torque setpoints — all within millisecond scan cycles. Alongside the PLC, an ABB AC500 controller may handle higher-level sequencing logic, communicating with the RMIO module via the same fieldbus backbone.

For remote I/O expansion, modules such as the ABB CI854 PROFIBUS DP adapter or third-party remote I/O stations extend the network to distributed field devices — pressure transmitters, flow meters, and valve positioners — whose data is aggregated and passed through the same communication chain that the 321131-A01 anchors at the drive level.

At the supervisory layer, an ABB System 800xA DCS or a WinCC-based SCADA platform subscribes to the drive data published by the RMIO module. Operators at the HMI workstation — running panels such as the ABB CP600 series or Siemens TP1200 Comfort — can view live motor speed, energy consumption, and fault codes without leaving the control room. When a drive fault occurs, the 321131-A01 immediately propagates the alarm code through the fieldbus to the SCADA alarm management system, triggering notifications and logging the event for post-mortem analysis.

For sites running Modbus RTU architectures, the RMIO module interfaces with Modbus masters such as the ABB FMBA-01 Modbus adapter, enabling legacy PLCs and RTUs to communicate with modern ACS800 drives without protocol conversion hardware. In more advanced topologies, an industrial edge gateway — such as the Moxa MGate series or HMS Anybus X-gateway — bridges the PROFIBUS segment to Industrial Ethernet (PROFINET or EtherNet/IP), allowing cloud-based MES and ERP systems to consume drive data in real time.

Variable frequency drives in adjacent production lines — including ABB ACS550, ACS580, and ACS880 series — often share the same PROFIBUS or Modbus network ring, with each drive’s RMIO-compatible communication module contributing to a unified data fabric. This architecture enables plant engineers to monitor energy consumption across all motor-driven assets from a single SCADA dashboard, supporting ISO 50001 energy management initiatives and predictive maintenance programs.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where drive systems, PLCs, remote I/O, and SCADA platforms operate in silos, unable to share process data in real time. The ABB 321131-A01 directly addresses this problem by providing a standardized, protocol-compliant communication interface that integrates the ACS800 drive into the plant’s existing fieldbus infrastructure without requiring custom wiring or proprietary middleware.

Protocol fragmentation is another common pain point. Sites that have evolved over decades often run a mix of PROFIBUS, Modbus, and DeviceNet segments, with no unified data path to the supervisory layer. The RMIO module’s adapter-slot architecture allows engineers to select the appropriate fieldbus protocol for their network, ensuring compatibility with the installed PLC and SCADA infrastructure without replacing existing cabling or controllers.

Remote monitoring and diagnostics become straightforward once the 321131-A01 is in place. Drive parameters — including output frequency, DC bus voltage, motor current, and fault history — are continuously available on the fieldbus, allowing remote engineers to diagnose issues, adjust setpoints, and clear faults without dispatching technicians to the field. This capability is especially valuable in geographically distributed facilities such as water treatment plants, mining operations, and offshore platforms.

Production line transparency improves dramatically when drive data flows freely to the SCADA and MES layers. OEE (Overall Equipment Effectiveness) calculations, energy benchmarking, and predictive maintenance algorithms all depend on accurate, high-frequency drive data — data that the ABB 321131-A01 makes continuously available across the network. System expansion is equally straightforward: additional ACS800 drives can be added to the PROFIBUS ring with their own RMIO modules, scaling the network without architectural changes.

Every ABB 321131-A01 unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying communication integrity, parameter access, and fault reporting. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 321131-A01 support?
The 321131-A01 RMIO module supports PROFIBUS-DP, Modbus RTU, DeviceNet, and CANopen depending on the fieldbus adapter installed in the RMIO adapter slot. This makes it compatible with the majority of PLC and SCADA platforms deployed in industrial automation environments, including Siemens, Rockwell, Schneider, and ABB control systems.

Q2: How does the RMIO module ensure network stability and low communication latency?
The ABB 321131-A01 uses the ACS800 drive’s internal DDCS (Distributed Drives Communication System) bus to exchange data with the drive’s control board at high speed, then presents this data to the fieldbus master in standard cyclic format. PROFIBUS-DP cycle times of 1–10 ms are typical, ensuring that drive status and setpoint updates reach the PLC within the scan cycle without introducing measurable latency into the control loop.

Q3: Is the ABB 321131-A01 compatible with SCADA and HMI systems from other vendors?
Yes. Because the 321131-A01 communicates via standard industrial fieldbus protocols, it is fully compatible with SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, Siemens WinCC, and ABB System 800xA, as well as HMI panels from Siemens, Schneider, and Weintek. Any SCADA or HMI system with a PROFIBUS-DP or Modbus driver can read drive data from the RMIO module without custom configuration.

Q4: What does the 12-month warranty cover, and how are units tested before shipment?
All ABB 321131-A01 units supplied by ZYPLC are functionally tested before dispatch to verify communication initialization, parameter read/write access, and fault signal propagation. The 12-month warranty covers manufacturing defects and communication failures under normal operating conditions. Replacement or repair is arranged promptly upon confirmed fault diagnosis. For RFQ and technical support, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
