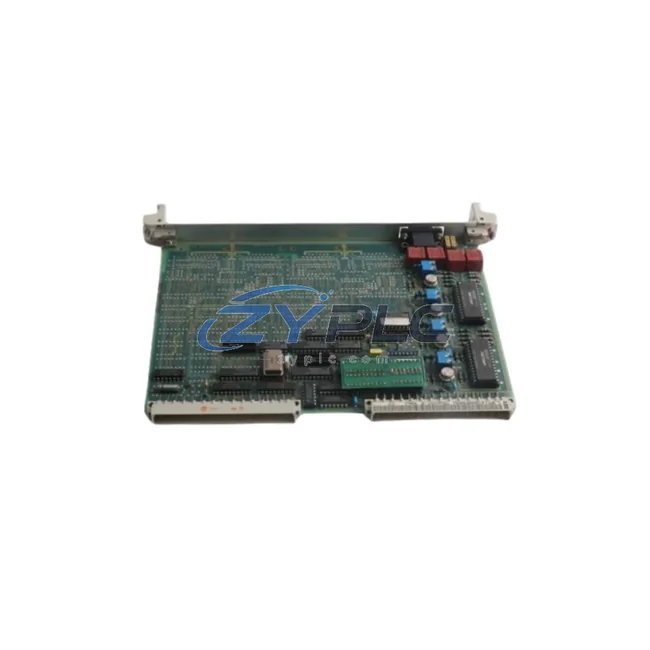

The ABB 35AB94 (GJR5142800R0001) is a dedicated analog output module engineered for deployment within the ABB Advant AC Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, this module is designed to operate as an integral node within a layered automation hierarchy — coordinating signal delivery from the control layer down through the I/O layer to field-level actuators, control valves, variable frequency drives, and positioners. Its role in the system is to translate digital setpoints generated by the central processing unit into precise 4–20 mA or 0–10 V analog signals, ensuring deterministic, low-latency output across the process control loop.

In large-scale DCS installations, the 35AB94 GJR5142800R0001 is typically mounted on an Advant-compatible I/O baseplate or S100 I/O bus carrier, sharing a common backplane with other I/O modules such as digital input modules, digital output modules, and analog input modules from the same Advant AC family. This shared backplane architecture reduces wiring complexity, supports modular expansion, and enables hot-swap maintenance without interrupting the broader control system — a critical advantage in continuous process environments where unplanned downtime carries significant operational cost.

Product Specification Table

System Compatibility Notes

The 35AB94 GJR5142800R0001 achieves its full value when integrated within a complete Advant AC control system architecture. At the control layer, an ABB Advant AC CPU module — such as the PM511 or PM510 processor module — executes the control strategy and generates analog setpoints that are passed down to the I/O layer via the S100 I/O bus. The 35AB94 receives these setpoints and converts them into field-level analog signals with the resolution and accuracy required for precise process regulation.

On the same I/O backplane, the 35AB94 typically operates alongside complementary modules including the ABB AI810 analog input module for process variable feedback, the ABB DO810 digital output module for discrete actuator control, and the ABB DI810 digital input module for field status monitoring. Together, these modules form a complete I/O cluster that handles the full signal spectrum of a process control loop — from sensor input to actuator output.

At the power layer, the Advant AC system relies on dedicated power supply modules such as the ABB SD821 or SD822 power supply units, which provide regulated 24 VDC to the I/O bus and all connected modules. Stable power delivery is essential for analog output accuracy; voltage fluctuations at the power layer directly affect the 4–20 mA signal integrity produced by the 35AB94. Engineers specifying this module should ensure that the power supply capacity is sized to accommodate the full I/O load of the backplane.

At the network and communication layer, the Advant AC system uses PROFIBUS DP or MasterBus 300 communication gateways — such as the ABB CI522A or CI532V communication interface modules — to connect the I/O layer to supervisory SCADA systems, historian servers, and operator workstations. The 35AB94 analog output data is made available to these upper-layer systems through the CPU’s communication stack, enabling real-time monitoring, alarm management, and data logging without additional field wiring.

For human-machine interface integration, the Advant AC architecture supports connection to ABB Operate IT or third-party HMI panels via the MasterBus 300 or PROFIBUS network. Operators can monitor analog output values, adjust setpoints, and review trend data directly from the HMI, with the 35AB94 serving as the physical output endpoint for every analog control loop displayed on screen.

Industrial Application Notes

The ABB 35AB94 GJR5142800R0001 is deployed across a wide range of industrial sectors where the Advant AC DCS platform has established a long operational history. In power generation and utilities, this module controls turbine governor valves, boiler feedwater control valves, and combustion air dampers — applications where analog output precision directly affects thermal efficiency and grid stability. The module’s compatibility with the Advant AC redundancy architecture allows critical control loops to maintain output continuity even during CPU or communication path failures.

In oil and gas and petrochemical processing, the 35AB94 is used to drive control valves on distillation columns, reactor feed systems, and compressor anti-surge loops. These applications demand high signal fidelity and long-term calibration stability — characteristics that the Advant AC S100 I/O platform was specifically designed to deliver in hazardous area installations when paired with appropriate IS barriers or galvanic isolators.

In water and wastewater treatment, the module controls variable speed pump drives, chemical dosing pumps, and aeration blower VFDs. The ability to integrate the 35AB94 into an existing Advant AC system without replacing the CPU or communication infrastructure makes it a cost-effective solution for plant expansions and I/O upgrades. In mining and metallurgy, the module is applied in ore processing, flotation cell control, and smelter temperature regulation — environments where the Advant AC platform’s robust design and long spare parts availability are particularly valued by maintenance engineers managing aging DCS installations.

For packaging and discrete manufacturing lines that incorporate process control elements, the 35AB94 provides the analog output capability needed to regulate tension control, temperature zones, and pressure regulation within a hybrid PLC/DCS architecture built around the Advant AC platform.

Product Compatibility FAQ

Q1: Is the ABB 35AB94 GJR5142800R0001 compatible with all Advant AC CPU versions, and does it require any firmware configuration before installation?
The 35AB94 is designed for the ABB Advant AC S100 I/O bus architecture and is compatible with the range of Advant AC CPU modules that support the S100 I/O backplane, including PM510, PM511, and related processor variants. In most installations, the module is recognized automatically by the CPU during system startup via the S100 bus enumeration process. However, engineers should verify that the Advant AC engineering tool (such as ABB Master or Control Builder) has the correct I/O module library version to support the 35AB94 hardware revision. Channel configuration — including output range selection (4–20 mA or 0–10 V), fault state behavior, and engineering unit scaling — is performed within the control application software rather than through hardware DIP switches, simplifying commissioning and reducing the risk of configuration errors during replacement.

Q2: Can the 35AB94 be used in a redundant I/O architecture, and what are the system-level requirements for implementing output redundancy?
The Advant AC platform supports redundant I/O configurations for critical control loops, and the 35AB94 can be incorporated into such architectures when paired with the appropriate redundancy hardware and software configuration. Redundant analog output implementations typically require dual I/O baseplates, dual module slots, and a redundancy coordinator or switchover logic implemented at the CPU level. Engineers should consult the Advant AC system engineering manual for the specific redundancy topology supported by their CPU version, as the switchover behavior — bumpless transfer, output hold, or defined fault state — must be configured in the control application to match the process safety requirements. For SIL-rated applications, additional functional safety assessment is required beyond standard redundancy configuration.

Q3: What does the warranty terms confirmed during quotation cover for the 35AB94 GJR5142800R0001, and what support is available for long-term maintenance of legacy Advant AC systems?
Every ABB 35AB94 GJR5142800R0001 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. The warranty supports direct replacement or repair, minimizing the risk of extended downtime for critical process control systems. For long-term maintenance of legacy Advant AC installations, ZYPLC supports RFQ sourcing for Advant AC I/O modules, CPU modules, power supplies, and communication interfaces to support ongoing spare parts requirements. Customers managing aging DCS infrastructure are encouraged to contact our technical team to discuss inventory planning, cross-reference verification, and system-level compatibility assessment before placing orders for replacement modules.
