ABB 35NE90 GJR4500400R1 Industrial Network Interface for INSUM Systems

ABB 35NE90 GJR4500400R1 Industrial Network Interface for INSUM Systems: Powering the Smart Factory Data Link

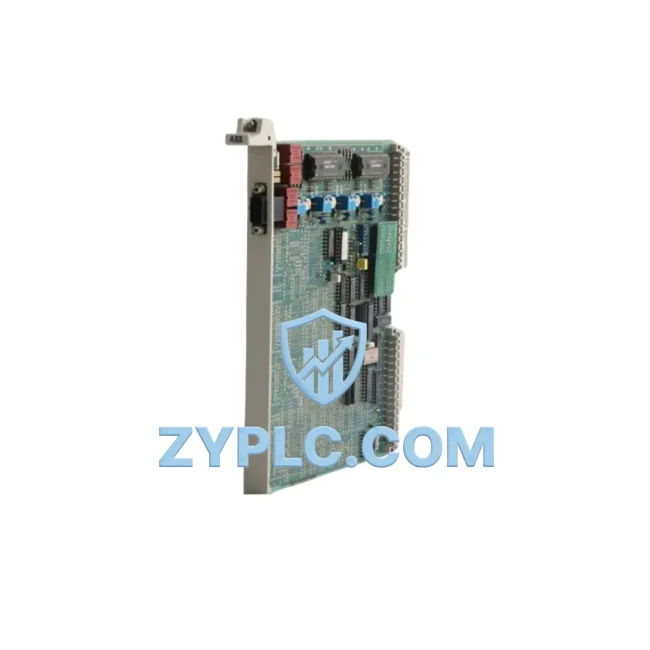

The ABB 35NE90 GJR4500400R1 220AC140E6-5/20/20N is a dedicated industrial network power supply unit engineered for ABB’s INSUM (Intelligent Motor Control and Supervision) system architecture. Designed to sustain stable bus communication across distributed motor control networks, this unit serves as the backbone power source that keeps field devices, communication modules, and supervisory systems continuously connected. In modern smart factory environments where data availability and network uptime are non-negotiable, the 35NE90 GJR4500400R1 delivers the regulated, noise-filtered DC power that INSUM bus segments demand for uninterrupted real-time data exchange.

The INSUM system integrates seamlessly with ABB’s broader industrial automation ecosystem, enabling centralized monitoring and control of motor starters, circuit breakers, and protection relays across an entire facility. The 35NE90 power supply unit ensures that every node on the INSUM network — from the ABB UNO-DM series communication interfaces to the ABB SACE Emax and Tmax series intelligent circuit breakers — receives clean, stable power to maintain continuous protocol communication. This is critical in environments where even a momentary power fluctuation can disrupt Modbus RTU polling cycles or cause data loss in SCADA historian databases.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB 35NE90 GJR4500400R1 sits at the heart of the INSUM bus segment, providing the regulated power that enables seamless data flow from field-level devices all the way up to enterprise SCADA and MES platforms. The data journey begins at the motor starter level, where ABB INSUM motor management units — such as the ABB INSUM IMU (Intelligent Motor Unit) — continuously collect operational parameters including current draw, thermal status, start/stop counts, and fault codes. These values are transmitted over the RS-485 INSUM bus, which the 35NE90 power supply sustains at stable voltage levels to prevent communication errors or CRC failures during Modbus RTU polling.

Moving up the data chain, the INSUM bus connects to an ABB INSUM Gateway or ABB CI840A PROFIBUS communication interface, which translates the proprietary INSUM protocol into standard industrial protocols such as PROFIBUS DP or Modbus TCP/IP. This protocol conversion step is essential for integrating motor-level data into plant-wide control systems. The gateway feeds real-time motor status data into ABB AC500 PLC controllers, which execute protection logic, interlock sequences, and load-shedding algorithms based on live field data. The AC500’s high-speed processing ensures that trip commands reach the ABB SACE Tmax XT series intelligent circuit breakers within milliseconds of a fault condition being detected.

At the HMI and SCADA layer, operators interact with the system through ABB CP600 series HMI panels, which display real-time motor current, voltage, power factor, and alarm status pulled directly from the INSUM network. The HMI communicates with the AC500 PLC over Ethernet/IP or PROFIBUS, creating a transparent data pipeline from the motor terminal to the operator’s screen. For remote monitoring, the data is further aggregated by an ABB Ability™ Edge Gateway, which pushes time-series motor data to cloud-based analytics platforms or on-premise SCADA historians such as ABB System 800xA. This enables maintenance engineers to perform trend analysis, predictive maintenance scheduling, and energy consumption benchmarking without being physically present on the plant floor.

The 35NE90 also supports integration with ABB ACS880 series variable frequency drives (VFDs), which report speed reference, output frequency, DC bus voltage, and drive fault codes back through the INSUM network. When a drive trips on overcurrent or overtemperature, the fault data propagates instantly through the INSUM bus to the SCADA alarm management system, triggering automated notifications to maintenance personnel via SMS or email. This closed-loop alarm and diagnostic architecture — powered at every node by the stable output of the 35NE90 GJR4500400R1 — is what transforms a conventional motor control center into a fully connected, data-transparent smart factory asset.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the coexistence of legacy equipment running proprietary protocols alongside modern Ethernet-based systems. The ABB INSUM architecture, anchored by the 35NE90 GJR4500400R1 power supply, directly addresses this challenge by providing a standardized RS-485 / Modbus RTU communication backbone that bridges older motor starters and protection relays into the modern data ecosystem. Facilities that previously had no visibility into individual motor health — relying instead on manual inspection rounds and reactive maintenance — can now achieve full production line transparency through INSUM network integration.

Data silos are eliminated when the INSUM gateway aggregates motor-level data from dozens of field devices and presents it as a unified data stream to the plant’s DCS or SCADA system. Maintenance teams gain access to historical trend data, enabling them to identify degrading insulation resistance, bearing wear patterns, or cooling fan failures weeks before they cause unplanned downtime. Remote diagnostic capability means that ABB service engineers can connect to the INSUM network via secure VPN and perform parameter adjustments, firmware updates, or fault analysis without dispatching a technician to site — reducing mean time to repair (MTTR) and minimizing production losses.

System scalability is another key advantage. As production capacity expands, additional INSUM nodes — new motor starters, additional intelligent circuit breakers, or supplementary remote I/O modules — can be added to the bus segment without redesigning the communication architecture. The 35NE90 GJR4500400R1 is rated to supply the bus power required for expanded network segments, ensuring that system growth does not compromise communication stability or data integrity. Every unit shipped by ZYPLC undergoes full functional testing prior to dispatch, and is backed by a 12-month warranty, giving procurement and maintenance teams confidence in both product quality and supply continuity.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 35NE90 GJR4500400R1 support, and is it compatible with third-party SCADA systems?
The 35NE90 GJR4500400R1 is designed for the ABB INSUM bus, which uses RS-485 physical layer with Modbus RTU as the communication protocol. This makes it inherently compatible with any SCADA, DCS, or HMI platform that supports Modbus RTU or can interface via an INSUM-to-Modbus TCP/IP gateway. Systems such as Wonderware, Ignition SCADA, Siemens WinCC, and ABB System 800xA can all integrate INSUM network data through appropriate gateway modules.

Q2: How does the INSUM power supply ensure network stability in electrically noisy industrial environments?
The 35NE90 GJR4500400R1 incorporates regulated DC output with filtering designed to suppress electrical noise common in motor control center environments — including switching transients from VFD operation, contactor switching surges, and ground loop interference. The stable, clean bus power it provides is essential for maintaining RS-485 signal integrity across long cable runs and multi-drop network topologies, preventing communication timeouts and data corruption that can trigger false alarms in SCADA systems.

Q3: Can the ABB 35NE90 support network expansion without replacing the power supply unit?
Yes. The 35NE90 GJR4500400R1 is rated to power INSUM bus segments with multiple connected nodes. When expanding the network by adding new motor management units, intelligent circuit breakers, or communication interfaces, the power supply’s output capacity accommodates the additional bus load within its design specifications. For very large network expansions, ABB’s INSUM architecture supports multiple bus segments, each with its own power supply, allowing virtually unlimited scalability.

Q4: What quality assurance and warranty terms apply to this unit?
Every ABB 35NE90 GJR4500400R1 220AC140E6-5/20/20N supplied by ZYPLC is fully tested for electrical performance and communication functionality prior to shipment. Units are dispatched with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Fast global delivery via DHL or FedEx Express ensures minimal lead times for both urgent replacement orders and planned maintenance stock replenishment.
