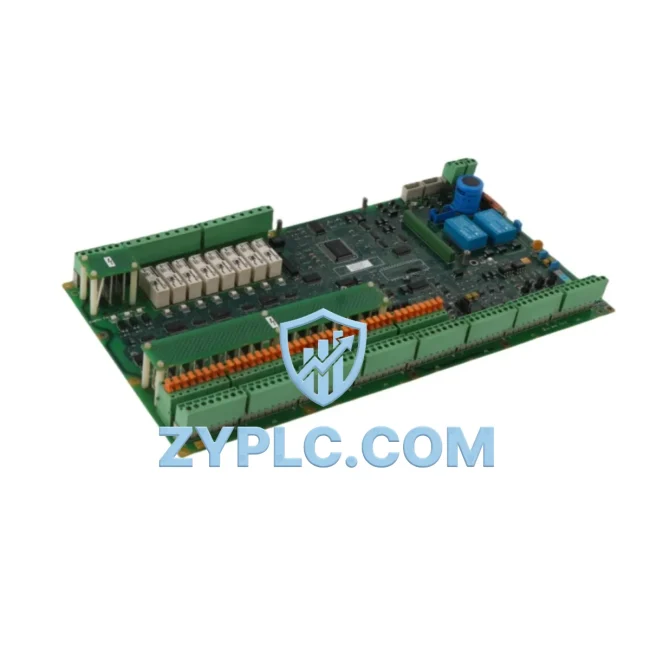

ABB 3ASC25H209 DATX110 Industrial Network Interface for AC800M Systems

ABB 3ASC25H209 DATX110 Industrial Network Interface for AC800M Systems

The ABB 3ASC25H209 DATX110 is a high-performance Analog I/O Board engineered for seamless integration within ABB’s AC800M Distributed Control System (DCS) platform. Designed to bridge the gap between field-level instrumentation and upper-layer control networks, this module serves as a critical node in the industrial data chain — connecting sensors, transmitters, and actuators to PLC controllers, SCADA systems, and HMI interfaces with precision and reliability. Whether deployed in continuous process manufacturing, power generation, oil and gas, or chemical plant automation, the DATX110 delivers the analog signal fidelity and network stability that modern smart factories demand.

Network Communication Table

Connected Automation Data Flow

In a fully integrated AC800M control architecture, the DATX110 operates at the heart of the analog signal acquisition layer. Field instruments — including 4–20 mA pressure transmitters, thermocouple inputs, and RTD temperature sensors — feed raw process data into the DATX110’s analog input channels. This data is conditioned, digitized, and passed upstream via the AC800M backplane bus to the ABB PM866K01 processor module, which executes real-time control logic and coordinates data distribution across the network.

For PROFIBUS-DP communication, the DATX110 works in conjunction with the ABB CI867K01 PROFIBUS DP communication interface, enabling the AC800M controller to exchange process variables with remote I/O stations, variable frequency drives, and intelligent field devices across the plant floor. In parallel, the ABB CI854AK01 AF100 communication interface extends the data link to Advant Fieldbus 100 segments, ensuring backward compatibility with legacy Advant OCS installations while supporting migration to modern Ethernet-based architectures.

Analog output signals generated by the DATX110 — such as control setpoints for control valves and positioners — are routed through ABB AO820 analog output modules, providing precise 4–20 mA or 0–10 V signals to final control elements. On the input side, the ABB AI830A analog input module complements the DATX110 by expanding the number of available analog channels, supporting high-density I/O configurations in large-scale process plants.

At the supervisory level, process data collected by the DATX110 is transmitted to ABB System 800xA SCADA and DCS platforms via the AC800M controller’s Ethernet port, enabling real-time visualization, alarm management, and historical trending on operator workstations. The ABB TU830V1 termination unit provides the physical wiring interface between field cables and the I/O modules, simplifying installation and enabling hot-swap maintenance without disrupting live processes.

For remote diagnostics and predictive maintenance, the DATX110’s data stream is accessible through the ABB DP840 PROFIBUS diagnostic module, which monitors bus health, detects communication faults, and generates alerts to the SCADA system before failures impact production. Power integrity across the I/O rack is maintained by the ABB SA801F power supply module, ensuring stable 24 VDC supply to all connected I/O boards including the DATX110.

In edge computing scenarios, an industrial edge gateway aggregates analog process data from multiple DATX110 boards and forwards it to cloud-based MES or ERP platforms via OPC-UA or MQTT protocols, completing the data chain from field sensor to enterprise decision-making systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, legacy systems, and isolated control islands. The ABB 3ASC25H209 DATX110 directly addresses these pain points within the AC800M ecosystem.

Protocol Unification: Many industrial sites operate a mix of PROFIBUS-DP, Modbus RTU, and proprietary fieldbus protocols. The DATX110, integrated with ABB’s CI867K01 and CI854AK01 communication interfaces, acts as a protocol gateway — normalizing analog signals from diverse field devices into a unified data format that the AC800M controller and System 800xA SCADA can process without custom middleware.

Eliminating Data Silos: By connecting analog field instruments directly to the AC800M backplane and upstream SCADA networks, the DATX110 ensures that process variables — flow rates, temperatures, pressures, and levels — are continuously available to operators, engineers, and automated control loops. No data remains trapped in isolated field devices.

Remote Monitoring and Diagnostics: With PROFIBUS diagnostic tools and System 800xA integration, maintenance teams can remotely interrogate the DATX110’s channel status, identify signal drift, and perform calibration checks without physical site visits — reducing downtime and travel costs in geographically distributed plants.

Production Line Transparency: Real-time analog data from the DATX110 feeds directly into System 800xA dashboards, enabling production managers to monitor KPIs, detect process deviations, and trigger automated alarms — transforming raw sensor data into actionable intelligence.

Scalable System Expansion: The modular architecture of the AC800M platform allows additional DATX110 boards and I/O modules to be added to existing racks without system shutdown, supporting phased capacity expansion as production demands grow.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3ASC25H209 DATX110 support?
The DATX110 supports PROFIBUS-DP, Advant Fieldbus 100 (AF100), and Modbus RTU protocols when used with compatible ABB communication interface modules such as the CI867K01 and CI854AK01. This makes it compatible with a wide range of industrial field devices, drives, and remote I/O stations.

Q2: How does the DATX110 ensure network stability in high-noise industrial environments?
The DATX110 is designed to ABB’s industrial-grade specifications, featuring robust signal conditioning, EMI shielding, and galvanic isolation on analog channels. These features minimize the impact of electrical noise from variable frequency drives, welding equipment, and high-voltage switchgear commonly found in industrial facilities.

Q3: Can the DATX110 be integrated with third-party SCADA or HMI systems?
Yes. When connected to an AC800M controller with Ethernet communication capability, the DATX110’s process data is accessible via OPC-DA/UA servers supported by System 800xA, enabling integration with third-party SCADA platforms such as Wonderware, Ignition, and Siemens WinCC through standard industrial protocols.

Q4: What warranty and testing standards apply to the ABB 3ASC25H209 DATX110?
All DATX110 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify analog channel accuracy, communication interface integrity, and power supply performance before dispatch. Global shipping via DHL and FedEx with full tracking is available.
