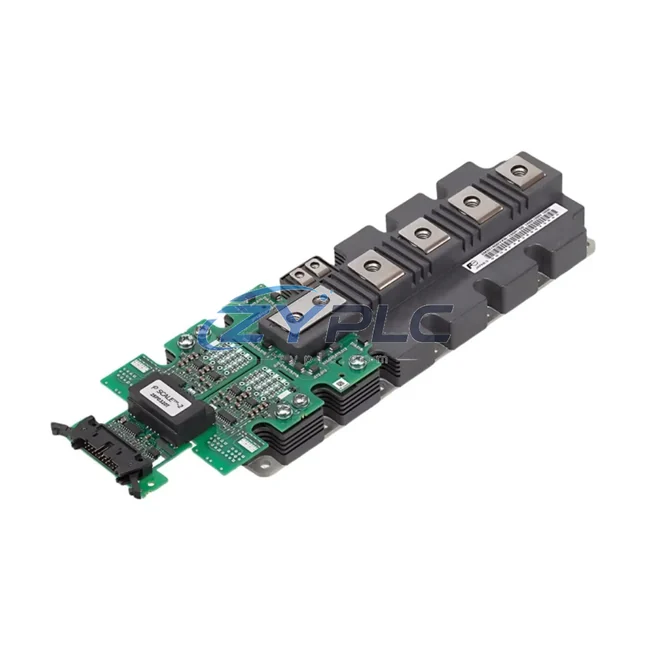

ABB 3AXD50000711901 IGBT Module for ACS880 Systems

ABB 3AXD50000711901 IGBT Module: Industrial Data Link and Smart Factory Connectivity for ACS880 Systems

The ABB 3AXD50000711901 (cross-reference: 2MBI1000VXB-170E-50) is a high-performance IGBT power module engineered for the ABB ACS880 series of industrial AC drives. Rated for demanding switching applications in variable-speed drive systems, this module serves as the core power conversion element that enables precise motor control, energy efficiency, and real-time communication across the full automation chain — from field-level sensors and actuators to SCADA supervisory systems and cloud-based analytics platforms.

In modern smart factory environments, the reliability of the power switching stage directly determines the quality of data flowing through the automation network. When the 3AXD50000711901 operates within an ACS880 drive, it interfaces with the drive’s onboard DDCS (Distributed Drives Communication System) and PROFIBUS/PROFINET communication adapters, enabling seamless data exchange between the drive and upstream PLC controllers such as the ABB AC500 series or Siemens S7-1500. This bidirectional data flow — covering torque references, speed feedback, fault codes, and thermal status — forms the backbone of real-time process visibility on the plant floor.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB 3AXD50000711901 IGBT module sits at the heart of the ACS880 inverter bridge, where it converts DC bus power into precisely controlled AC output for three-phase motors. But its role in the connected factory extends far beyond raw power switching. The moment the module enables the drive to operate, a continuous stream of process data begins flowing across the automation network.

At the field level, signals from ABB NAIO-01 analog I/O extension modules and ABB FDIO-01 digital I/O modules feed real-time sensor data — including temperature, pressure, flow rate, and vibration — into the ACS880 drive’s control board. The drive processes these inputs and adjusts motor speed and torque accordingly, with the IGBT module executing the switching commands at microsecond precision. This closed-loop control is what makes the 3AXD50000711901 indispensable in high-demand applications such as compressors, pumps, fans, and conveyor systems.

Moving up the network hierarchy, the ACS880 drive communicates with ABB AC500 PLC controllers via the ABB FPBA-01 PROFIBUS-DP adapter or the ABB FENA-21 EtherNet/IP / PROFINET adapter. These communication modules translate the drive’s internal DDCS protocol into standard industrial fieldbus and Ethernet protocols, allowing the PLC to issue speed references, read actual values, and monitor fault registers in real time. The PLC, in turn, connects to ABB CP600 HMI panels or third-party SCADA systems such as Wonderware InTouch or Ignition by Inductive Automation, where operators can visualize motor performance, energy consumption, and alarm histories on a single dashboard.

For distributed architectures, the ACS880 drive equipped with the 3AXD50000711901 module can be integrated into ABB Ability™ Smart Sensor networks, enabling wireless condition monitoring of motor bearings, winding temperature, and vibration levels. Data collected by these sensors is transmitted via Bluetooth to a local gateway and then forwarded to the ABB Ability™ cloud platform or an on-premise edge server running ABB Edge Control software. This architecture supports predictive maintenance workflows, where anomalies detected in the IGBT switching waveform or motor thermal profile trigger automated work orders in the plant’s CMMS system.

In multi-drive installations — such as those found in paper mills, steel rolling lines, or water treatment plants — multiple ACS880 drives share a common DC bus and communicate via the ABB RDCO-03 DDCS communication module, forming a synchronized drive network. The 3AXD50000711901 module’s consistent switching performance across all drives in the network ensures that torque sharing and speed synchronization remain stable even under dynamic load changes, preventing data inconsistencies that could trigger false alarms in the SCADA system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older drives may use Modbus RTU over RS-485, while newer systems rely on PROFINET or EtherNet/IP. When a failing IGBT module forces an unplanned drive replacement, the new drive must be configured to match the existing network topology — or the entire production line risks becoming a data island, invisible to the SCADA system and disconnected from the plant’s MES (Manufacturing Execution System).

The ABB 3AXD50000711901 addresses this challenge by restoring the ACS880 drive to full operational status with its original communication capabilities intact. Because the module is a direct OEM replacement, it requires no firmware changes or parameter reconfiguration to resume communication with the existing PLC, HMI, and SCADA infrastructure. The drive’s FENA-21 PROFINET adapter or FPBA-01 PROFIBUS adapter continues to publish real-time data — including output frequency, motor current, DC bus voltage, and active fault codes — to the control network without interruption.

For sites transitioning from legacy fieldbus architectures to Industrial Ethernet, the ACS880 drive’s multi-protocol support (enabled by the restored IGBT switching stage) allows engineers to run PROFIBUS and PROFINET simultaneously during the migration period. This eliminates the need for costly protocol converters or gateway devices, reducing both capital expenditure and network latency. The result is a transparent production line where every motor, every drive, and every sensor contributes to a unified data stream that feeds the plant’s digital twin and supports real-time OEE (Overall Equipment Effectiveness) calculations.

Remote diagnostics capabilities are equally important. With the 3AXD50000711901 module restored, the ACS880 drive can resume publishing fault logs and performance trends to the ABB Ability™ platform or a local OPC-UA server, allowing maintenance engineers to diagnose issues remotely without dispatching technicians to the field. This is particularly valuable in hazardous environments — such as offshore platforms, chemical plants, or mining operations — where physical access to drive cabinets is restricted or time-consuming.

Industrial Connectivity FAQ

Q1: Does the ABB 3AXD50000711901 support PROFINET and EtherNet/IP communication after installation?
A: Yes. The 3AXD50000711901 is a direct replacement IGBT module for the ACS880 drive’s inverter bridge. Once installed, the drive resumes full communication via its existing adapter modules — such as the FENA-21 for PROFINET/EtherNet/IP or the FPBA-01 for PROFIBUS-DP — without requiring changes to the network configuration or PLC program.

Q2: What is the communication latency between the ACS880 drive and the PLC after replacing this module?
A: Communication latency is determined by the fieldbus adapter and network configuration, not the IGBT module itself. With a properly installed 3AXD50000711901 and a PROFINET connection, typical cycle times between the ACS880 and a PLC are 1–4 ms, well within the requirements of most real-time motion control and process automation applications.

Q3: Is the 3AXD50000711901 compatible with ABB’s SCADA and remote monitoring systems?
A: Yes. Once the ACS880 drive is restored to operation with the 3AXD50000711901 module, it is fully compatible with ABB Ability™ Drive Analyzer, OPC-UA servers, and third-party SCADA platforms including Wonderware, Ignition, and Siemens WinCC. All drive parameters, fault histories, and real-time process values are accessible via the drive’s communication adapters.

Q4: What quality assurance and warranty coverage is provided with this module?
A: Every ABB 3AXD50000711901 supplied by ZYPLC undergoes pre-shipment functional testing, including gate drive signal verification and insulation resistance checks. The module is covered by a warranty terms confirmed during quotation against manufacturing defects. Global shipping via DHL and FedEx is available, with most orders dispatched within 1–3 business days. RFQ responses are provided within 24 hours.
