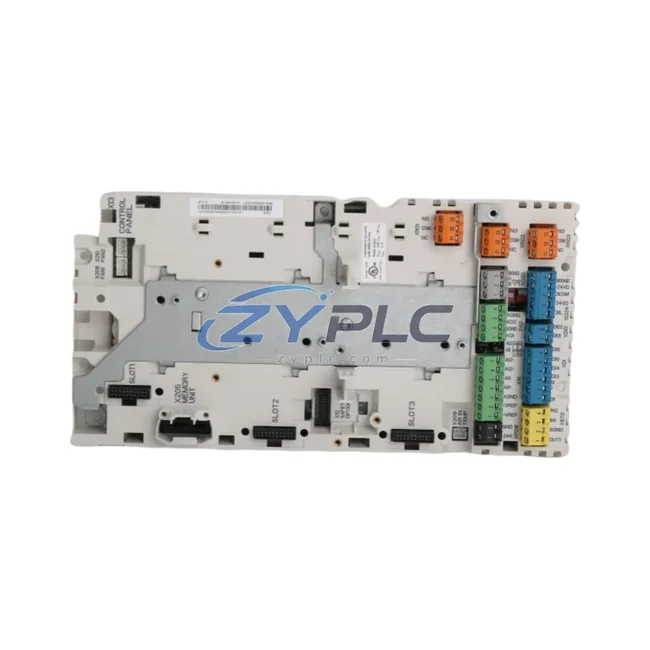

ABB 3AXD50000717330 VFD Control Unit for ACH580 Systems

ABB 3AXD50000717330 Industrial Network Interface for ACH580 Systems: Bridging the Industrial Data Link in Smart Factory Environments

The ABB 3AXD50000717330 is a high-performance control unit designed for the ACH580 series variable frequency drive platform, engineered to serve as a critical industrial network interface node within modern smart factory architectures. As manufacturing environments evolve toward fully connected, data-driven operations, the 3AXD50000717330 delivers the protocol intelligence, communication stability, and real-time data throughput required to unify field devices, control systems, and supervisory platforms into a single, transparent automation network.

At its core, this control unit functions as a dual-protocol gateway supporting both PROFINET and EtherNet/IP — two of the most widely deployed industrial Ethernet standards in global manufacturing. This dual-protocol capability enables seamless integration across heterogeneous automation environments, allowing the ACH580 drive to communicate natively with Siemens S7-series PLCs via PROFINET while simultaneously interfacing with Allen-Bradley ControlLogix or CompactLogix controllers over EtherNet/IP, eliminating the need for external protocol converters and reducing network latency at the field level.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB 3AXD50000717330 sits at the intersection of the field device layer and the control network, orchestrating data flow across multiple automation tiers. Signal acquisition begins at the sensor and actuator level — where devices such as ABB TZIDC digital positioners, pressure transmitters, and flow sensors feed process variables into the ACH580 drive’s I/O subsystem. The 3AXD50000717330 control unit then packages this raw field data into structured PROFINET or EtherNet/IP frames for upstream transmission.

At the PLC layer, the control unit establishes a deterministic communication link with the plant’s primary controller. In Siemens-based environments, the ACH580 drive appears as a PROFINET IO device within the TIA Portal engineering framework, enabling the S7-1500 or S7-300 series PLC to issue speed references, torque commands, and fault reset signals with cycle times as low as 1 ms. In Rockwell environments, the drive integrates as an EtherNet/IP adapter, fully compatible with Studio 5000 Logix Designer, allowing ControlLogix L8x or CompactLogix L3x controllers to manage drive parameters via explicit messaging and implicit I/O assemblies.

For remote I/O expansion, the 3AXD50000717330 supports integration with ABB AC500 remote I/O modules, extending the control network to distributed field cabinets without additional gateway hardware. This architecture is particularly valuable in large-scale process plants where drive clusters are distributed across multiple production zones, each requiring independent network addressing and real-time status reporting.

At the HMI and SCADA layer, the control unit’s network transparency enables direct visualization of drive parameters — including output frequency, motor current, DC bus voltage, and fault codes — on ABB CP600 series HMI panels or third-party SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC. The PROFINET conformance class B compliance ensures that the drive’s process data is available to the SCADA historian at scan rates compatible with high-frequency trend logging, supporting both real-time dashboards and long-term performance analytics.

Edge computing integration is also supported through the ABB Ability™ platform, where the 3AXD50000717330 can serve as a data source for ABB Edge Controllers or third-party IIoT gateways, enabling cloud-based predictive maintenance, energy consumption monitoring, and remote diagnostics without disrupting the real-time control loop. In multi-drive applications, the control unit works in concert with ABB ACS880 industrial drives and ACS580 general-purpose drives, sharing a common PROFINET segment managed by a central network switch — typically an ABB-compatible managed industrial Ethernet switch with PROFINET-aware VLAN configuration.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy systems often rely on Modbus RTU, PROFIBUS DP, or proprietary serial interfaces, creating data silos that prevent plant-wide visibility and impede the transition to Industry 4.0 architectures. The ABB 3AXD50000717330 addresses this challenge directly by providing a modern industrial Ethernet gateway that bridges the ACH580 drive platform into contemporary PROFINET and EtherNet/IP networks, effectively eliminating the protocol boundary between legacy drive infrastructure and new control system investments.

In plants where PROFIBUS DP was previously used to connect ABB drives to Siemens PLCs, the 3AXD50000717330 enables a direct migration path to PROFINET without replacing the drive hardware — preserving capital investment while delivering the bandwidth, diagnostics depth, and topology flexibility of industrial Ethernet. The control unit supports PROFINET device replacement without engineering tool access (PROFIsafe-compatible topology), reducing planned downtime during network upgrades.

Remote monitoring and diagnostics are further enhanced through the control unit’s support for PROFINET alarm and diagnostic channels, which deliver structured fault information — including fault codes, fault timestamps, and drive operating state — directly to the PLC and SCADA system without requiring additional polling logic. This capability is critical for unattended production environments where rapid fault identification and remote reset can prevent extended production stoppages.

For system scalability, the 3AXD50000717330 supports standard PROFINET device description (GSDML) files, enabling plug-and-play integration into any PROFINET-compliant engineering environment. New drives can be added to the network segment without reconfiguring existing nodes, supporting phased production line expansions and modular machine architectures. Each unit shipped by ZYPLC undergoes pre-shipment functional testing, verifying network communication, parameter access, and I/O response before dispatch. All units are covered by a warranty terms confirmed during quotation and supported by RFQ-confirmed sourcing for immediate global fulfillment.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ABB 3AXD50000717330 over PROFINET?
The 3AXD50000717330 supports PROFINET IO with configurable update cycles. In standard applications, cyclic I/O data exchange operates at 4–8 ms update rates, with high-performance configurations supporting 1 ms cycle times when paired with PROFINET conformance class B-compliant controllers such as the Siemens S7-1500 series. Acyclic parameter access via PROFINET record data objects (RDO) adds minimal overhead and does not impact cyclic I/O performance.

Q2: Is the 3AXD50000717330 compatible with both PROFINET and EtherNet/IP simultaneously?
The 3AXD50000717330 (ACH580-31-CCU-24-H+N2000-AHVK4) supports PROFINET and EtherNet/IP as selectable protocol modes. Protocol selection is configured via the drive’s parameter set, and the active protocol is determined at startup. Simultaneous dual-protocol operation on a single network port is not supported; however, the control unit can be reconfigured for either protocol to suit the target control system environment without hardware changes.

Q3: How does the control unit maintain network stability in high-EMI industrial environments?
The ACH580 platform, including the 3AXD50000717330 control unit, is designed to IEC 61800-3 EMC standards for industrial drive environments. The industrial Ethernet interface incorporates hardware-level noise filtering and supports shielded cable connections to minimize electromagnetic interference from adjacent VFDs, motor cables, and switching power supplies. Network stability is further supported by the drive’s built-in watchdog timer, which triggers a configurable fault response if the PROFINET or EtherNet/IP communication link is interrupted beyond the defined timeout threshold.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 3AXD50000717330?
Every ABB 3AXD50000717330 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing including network communication handshake, parameter read/write validation, and I/O response confirmation. Units are shipped from RFQ-confirmed sourcing with full traceability documentation. For technical support, expedited replacement, or volume procurement inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
