ABB 3BHB002916R0101 UFC721AE Voltage Measuring & Scaling Card for UFC700 Systems

ABB 3BHB002916R0101 UFC721AE Industrial Network Interface for UFC700 Systems: Precision Data Links for Smart Factory Connectivity

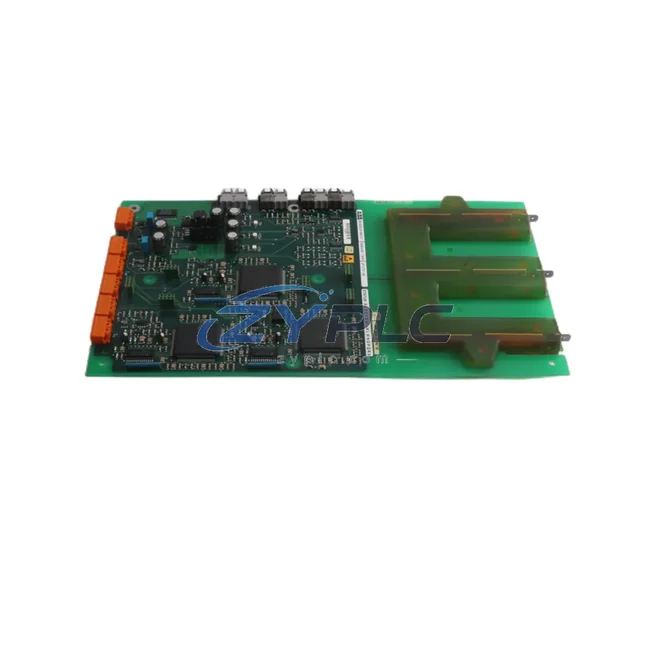

The ABB 3BHB002916R0101 UFC721AE is a high-precision Voltage Measuring and Scaling Card engineered for the ABB UFC700 series Distributed Control System (DCS). Designed to operate at the intersection of field instrumentation and supervisory control, this module serves as a critical data acquisition and signal conditioning node within industrial automation architectures. Whether deployed in power generation, petrochemical processing, pulp and paper, or heavy manufacturing environments, the UFC721AE delivers reliable analog signal capture, accurate voltage scaling, and seamless integration into the broader industrial communication network — forming the backbone of real-time process visibility and control.

In modern smart factory deployments, the ability to accurately measure, scale, and transmit voltage signals across distributed control layers is non-negotiable. The UFC721AE fulfills this role by bridging field-level sensors and transmitters with the DCS controller layer, ensuring that every millivolt of process data is faithfully represented in the control system’s engineering units. This precision is foundational to SCADA dashboards, HMI operator displays, and historian databases that plant engineers rely on for process optimization and regulatory compliance.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB 3BHB002916R0101 UFC721AE sits at the heart of a layered industrial data flow that begins at the field device level and extends all the way to enterprise-level MES and ERP systems. Understanding this data chain is essential for system integrators and automation engineers specifying components for a new installation or a brownfield upgrade.

At the field level, voltage signals originating from ABB HART-enabled transmitters, resistance temperature detectors (RTDs), and process voltage sensors are wired directly into the UFC721AE’s input terminals. The card performs hardware-level signal conditioning — filtering noise, applying gain, and converting raw voltage readings into scaled engineering values. These values are then passed via the UFC700 backplane bus to the ABB PM865 or PM891 AC800M processor module, which executes the control logic and manages the DCS loop.

From the controller layer, process data flows upward through the ABB CI854A PROFIBUS DP communication interface module, enabling the DCS to exchange real-time data with remote I/O stations, variable frequency drives (VFDs), and intelligent motor control centers (MCCs). In parallel, the ABB CI873AK Ethernet communication module provides a high-speed TCP/IP pathway for SCADA integration, allowing platforms such as ABB System 800xA or third-party SCADA systems like Wonderware InTouch and Ignition to subscribe to live process tags.

HMI operator stations — whether running ABB Panel 800 series displays or PC-based HMI software — receive scaled voltage data in real time, enabling operators to monitor process variables, acknowledge alarms, and initiate setpoint changes without leaving the control room. For remote sites or multi-plant architectures, ABB Edge Connect industrial edge gateways aggregate data from multiple UFC700 racks and publish it to cloud-based analytics platforms via MQTT or OPC UA, supporting predictive maintenance and maintenance planning use cases.

In drive-intensive applications — such as compressor control or pump management — the UFC721AE’s voltage measurements feed directly into the speed reference and torque limit calculations executed by ABB ACS880 or ACS580 variable speed drives, closing the loop between field measurement and actuator response. This tight integration between the measurement card, the DCS controller, and the drive system is what enables precise process control and energy efficiency in demanding industrial environments.

For safety-instrumented systems (SIS), the UFC721AE’s outputs can be cross-referenced against ABB Triguard SC300E safety controllers or third-party SIS platforms, providing a redundant data path for critical process variables that must be monitored independently of the standard DCS loop. This architecture ensures that voltage excursions beyond safe operating limits trigger automated protective actions — shutdowns, diversions, or alarms — without relying solely on the primary control path.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field instruments, legacy controllers, and modern supervisory systems cannot communicate effectively, leaving operators blind to critical process variables and engineers unable to perform meaningful analysis. The ABB 3BHB002916R0101 UFC721AE directly addresses this challenge within the UFC700 DCS architecture.

Protocol Fragmentation: Many industrial sites operate a mix of legacy 4–20 mA analog loops, HART devices, PROFIBUS DP segments, and newer Ethernet-based fieldbus networks. The UFC721AE, as part of the UFC700 I/O subsystem, provides a standardized interface that abstracts the physical signal layer and presents a unified data model to the AC800M controller. Combined with ABB’s communication interface modules, this enables seamless protocol bridging — translating field-level analog signals into digital process values that can be consumed by any SCADA, HMI, or MES system via OPC UA or Modbus TCP.

Remote Monitoring and Diagnostics: In geographically distributed plants — offshore platforms, pipeline stations, or multi-site manufacturing networks — the inability to remotely diagnose I/O card health is a major operational risk. The UFC721AE’s integration with the AC800M’s self-diagnostic framework means that card status, channel faults, and signal quality indicators are continuously reported to the DCS and surfaced on SCADA dashboards. Maintenance teams can identify a failing input channel, schedule a replacement, and order a spare — all without dispatching a technician to the field.

Production Line Transparency: Modern lean manufacturing and OEE (Overall Equipment Effectiveness) initiatives require granular, real-time visibility into every process variable. By accurately scaling voltage signals from motors, transformers, and power distribution equipment, the UFC721AE feeds the data historian with high-fidelity records that support shift reports, energy audits, and regulatory submissions. This transparency is the foundation of continuous improvement programs and digital twin implementations.

System Scalability: As production capacity grows or process requirements evolve, the UFC700 rack architecture allows additional I/O cards — including further UFC721AE voltage measuring cards, analog output modules, and digital I/O cards — to be added without redesigning the control system. This modularity protects the initial capital investment and reduces the engineering cost of future expansions.

Pre-Shipment Testing and Quality Assurance: Every ABB 3BHB002916R0101 UFC721AE supplied by ZYPLC undergoes a comprehensive functional test prior to dispatch. Input channels are verified against calibrated voltage references, backplane communication is confirmed, and the card’s firmware version is documented. This pre-shipment verification process minimizes the risk of installation delays caused by DOA (dead-on-arrival) components — a critical consideration for plant shutdowns and turnaround projects where every hour of downtime carries significant cost.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3BHB002916R0101 UFC721AE support for SCADA and HMI integration?
The UFC721AE itself is an analog I/O card that communicates via the UFC700 backplane bus to the AC800M DCS controller. At the system level, SCADA and HMI integration is achieved through ABB’s communication interface modules — such as the CI854A for PROFIBUS DP or the CI873AK for Ethernet/OPC UA — which expose the card’s process values to external supervisory systems. This architecture supports OPC DA/UA, Modbus TCP, and IEC 61850 depending on the communication module selected, ensuring compatibility with virtually all modern SCADA platforms.

Q2: How does the UFC721AE ensure network stability and data integrity in high-noise industrial environments?
The UFC721AE incorporates hardware-level signal filtering and galvanic isolation on its input channels, protecting measurement accuracy against electromagnetic interference (EMI) from variable speed drives, high-voltage switchgear, and welding equipment commonly found in industrial facilities. The backplane communication architecture also provides deterministic data transfer timing, ensuring that process values are updated at consistent scan rates without the latency variability associated with shared Ethernet networks.

Q3: Can the ABB UFC721AE be integrated into an existing DCS without a full system upgrade?
Yes. The UFC721AE is designed for hot-swap replacement within the UFC700 rack, and its configuration is stored in the AC800M controller — not on the card itself. This means a replacement card can be installed and brought online without re-engineering the control application, making it ideal for brownfield maintenance scenarios. System integrators should verify firmware compatibility between the replacement card and the existing AC800M software version before installation.

Q4: What warranty and after-sales support does ZYPLC provide for the ABB 3BHB002916R0101 UFC721AE?
ZYPLC provides a warranty terms confirmed during quotation on all ABB UFC721AE units, covering manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment and accompanied by a test report upon request. Our technical team is available to assist with installation guidance, firmware version verification, and compatibility checks. For urgent requirements, expedited shipping and priority stock allocation are available — contact us at +86 19859288691 or plc.sales@zyplc.com.
