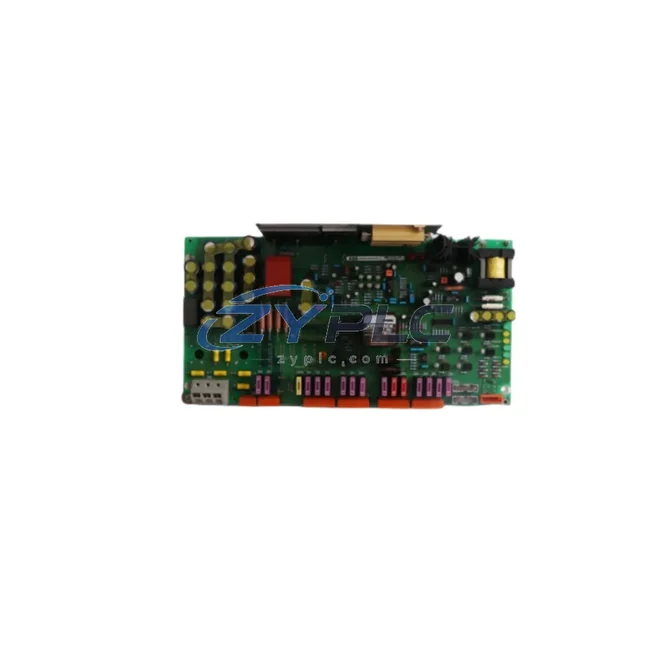

ABB 3BHB003431R0101 KUC720AE01 Thyristor Firing for UNITROL

ABB 3BHB003431R0101 KUC720AE01 Thyristor Firing Interface for UNITROL Excitation

The ABB 3BHB003431R0101 KUC720AE01 is a precision-engineered thyristor firing interface board designed for seamless integration within ABB’s UNITROL 5000 and UNITROL 6000 automatic voltage regulator (AVR) excitation control platforms. In modern power generation and industrial drive systems, the excitation control architecture demands exact synchronization between the firing pulse generation layer and the power conversion layer. This board occupies a critical position in that signal chain — translating digital control commands from the AVR processor into precisely timed gate pulses that drive the thyristor bridge, ensuring stable generator terminal voltage under dynamic load conditions.

Unlike generic firing boards, the KUC720AE01 is engineered specifically for the UNITROL platform’s modular backplane architecture. It interfaces directly with the UNITROL 5000 or UNITROL 6000 controller chassis, maintaining signal integrity across the full operating temperature range and under the electromagnetic interference conditions typical of high-power switchgear environments. Its role in the excitation system is analogous to the timing core of the entire voltage regulation loop — without accurate, jitter-free firing pulses, the thyristor bridge cannot deliver the controlled DC field current that the synchronous generator requires for stable operation.

From a system architecture perspective, the 3BHB003431R0101 KUC720AE01 sits between the AVR control processor board — such as the ABB SDCS-CON-4 or the UNITROL 6000’s main CPU module — and the thyristor power stack. It receives synchronization signals derived from the AC supply voltage, computes the firing angle based on the AVR’s output demand signal, and generates isolated gate drive pulses for each thyristor in the bridge. This system integration capability means the board does not operate in isolation; it is a functional node within a tightly coupled excitation system that also includes the ABB SDCS-PIN-48 pulse interface board, the ABB SDCS-FEX-2 field exciter module, and the ABB UNITROL 5000 power supply module (3BHB013088R0001).

Product Specification Table

System Compatibility Notes

The 3BHB003431R0101 KUC720AE01 achieves its full performance potential only when deployed within a correctly configured UNITROL excitation system architecture. In a typical synchronous generator excitation panel, the control hierarchy begins with the UNITROL 6000 main controller board, which executes the AVR algorithm and outputs a firing demand signal. This signal is received by the KUC720AE01, which computes the precise firing angle and distributes isolated gate pulses to the thyristor bridge — typically a three-phase fully controlled bridge built around ABB’s own thyristor modules.

On the I/O and signal conditioning layer, the ABB SDCS-IOB-3 I/O expansion board provides analog and digital signal interfaces for generator terminal voltage feedback, field current measurement, and protection relay inputs. The ABB SDCS-COM-8 communication module enables PROFIBUS or Modbus RTU connectivity, allowing the excitation system to report AVR status, field current values, and alarm conditions to the plant DCS or SCADA system — a critical requirement in power plant and industrial drive applications where remote monitoring and supervisory control are mandatory.

Power supply integrity is maintained by the ABB UNITROL 5000 power supply module (3BHB013088R0001), which provides regulated DC rails to all control boards within the chassis. In redundant excitation architectures — common in critical power generation applications — a second power supply module and a redundant AVR channel are deployed, with automatic changeover managed by the ABB UNITROL 6000 redundancy switchover module. The KUC720AE01 is designed to support this redundant architecture, ensuring that a single board failure does not interrupt generator excitation.

At the human-machine interface layer, the ABB CP600 HMI panel or a SCADA workstation running ABB’s Mint WorkBench software provides operators with real-time visibility into AVR setpoints, field current trends, and excitation system alarms. Terminal blocks and marshalling components — such as the ABB ENTRELEC M4/6 terminal block series — complete the wiring infrastructure within the excitation control cabinet, ensuring reliable signal routing between the KUC720AE01, the thyristor stack, and the plant protection system.

Industrial Application Notes

The ABB 3BHB003431R0101 KUC720AE01 is deployed across a wide range of industries where synchronous generator excitation control is critical to operational continuity and power quality.

In thermal and hydroelectric power generation, the KUC720AE01 forms the firing control core of the generator excitation system, maintaining terminal voltage stability during load transients, grid synchronization events, and fault ride-through conditions. Power plant operators rely on the board’s precise firing angle control to meet grid code requirements for reactive power support and voltage regulation.

In petrochemical and offshore platform applications, where generator sets must operate in island mode with rapidly varying loads, the KUC720AE01’s fast response firing control prevents voltage collapse during motor starting events and ensures uninterrupted power supply to critical process loads. The board’s robust design for high-EMI environments makes it well-suited to the electrical noise conditions typical of offshore topsides and onshore refinery electrical rooms.

In mining and metallurgical facilities, large synchronous motors driving compressors, hoists, and rolling mills are often operated with static excitation systems that use the same UNITROL platform architecture. The KUC720AE01 provides the firing interface for these drive excitation systems, supporting power factor correction and reactive power management at the point of common coupling.

In water treatment and pumping stations, the board supports the excitation control of synchronous pump motors, enabling precise reactive power compensation and reducing utility demand charges. Its long-term reliability and the availability of warranty terms confirmed during quotation coverage make it a preferred choice for infrastructure operators who require predictable maintenance cycles and assured spare parts supply.

Product Compatibility FAQ

Q1: Is the ABB 3BHB003431R0101 KUC720AE01 compatible with both UNITROL 5000 and UNITROL 6000 platforms, and what should be verified before installation?
A1: The KUC720AE01 is designed for use within the UNITROL 5000 and UNITROL 6000 excitation system chassis. Before installation, engineers should verify the chassis backplane revision, the firmware version of the main AVR controller board, and the thyristor bridge configuration (three-phase fully controlled vs. semi-controlled). The board’s slot position within the chassis must match the system configuration defined in the UNITROL engineering documentation. All warranty terms confirmed during quotation terms apply from the date of shipment, provided installation follows ABB’s commissioning guidelines.

Q2: How does the KUC720AE01 support redundant excitation architectures, and what additional components are required?
A2: In redundant excitation designs, a second KUC720AE01 board is installed in the standby AVR channel. The UNITROL 6000 redundancy switchover module monitors both channels and initiates automatic changeover upon detection of a firing board fault or loss of gate pulse output. The standby channel must be kept synchronized with the active channel via the backplane bus. Additional components required include the redundant power supply module, the switchover relay assembly, and the appropriate SDCS-IOB-3 I/O boards for each channel. system integration between both channels is essential for bumpless transfer during switchover events.

Q3: What are the recommended maintenance and long-term supply considerations for the 3BHB003431R0101 KUC720AE01?
A3: Given the long operational life of power generation and industrial drive systems — often 20 to 30 years — maintaining a strategic spare inventory of the KUC720AE01 is strongly recommended. The board should be stored in an ESD-protected environment at controlled temperature and humidity. Periodic functional testing of spare boards using a UNITROL test chassis or bench test fixture is advisable. Our warranty terms confirmed during quotation covers manufacturing defects and ensures that each board shipped has been inspected and verified against ABB’s original specifications. For long-term supply continuity, we maintain dedicated inventory of UNITROL 5000/6000 series components to support planned maintenance outages and emergency replacement requirements.
