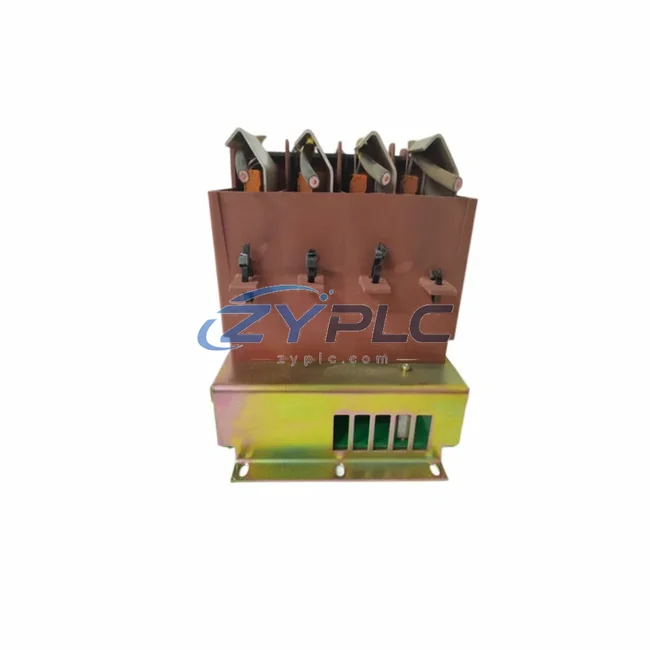

ABB 3BHB004661R0001 KUC711AE Control Module

ABB 3BHB004661R0001 KUC711AE Control Module for AC800PEC Drive Optimization

The ABB 3BHB004661R0001 KUC711AE is a high-performance control module engineered for the AC800PEC drive control platform — one of ABB’s most advanced architectures for precision motor management and energy-efficient automation. Designed for demanding industrial environments, this module serves as the computational and control core of variable-speed drive systems, enabling factories to achieve measurable reductions in energy consumption, unplanned downtime, and maintenance overhead.

In modern production facilities where energy costs and equipment utilization directly impact profitability, the KUC711AE delivers the processing power and signal integrity required to run closed-loop motor control algorithms with minimal latency. Whether integrated into a new drive cabinet or used as a replacement in an existing ABB ACS6000 or ACS5000 medium-voltage drive system, this module restores full drive functionality while preserving the maintenance planning logic already embedded in the system.

Product Specification Table

System Compatibility and Application

The ABB 3BHB004661R0001 KUC711AE does not operate in isolation — it is the intelligence layer within a broader industrial automation system. In a typical AC800PEC-based drive system, this control module coordinates with the ABB SDCS-CON-4 control board and AINT-02C fiber optic interface module to maintain real-time feedback loops between the drive inverter and the motor shaft encoder. This tight integration is what enables Direct Torque Control (DTC), ABB’s proprietary algorithm that eliminates unnecessary motor slip and reduces reactive power draw.

On the I/O side, the KUC711AE interfaces with ABB AI810 analog input modules and DI810 digital input modules from the S800 I/O family, collecting process variables such as motor current, speed reference, and load feedback. These signals feed directly into the control module’s real-time processor, which adjusts PWM switching patterns in the inverter to match actual load demand — preventing the unplanned downtime associated with fixed-speed motor operation.

For condition monitoring and power quality analysis, the KUC711AE-equipped drive system can be paired with the ABB B23 energy meter or M2M DMTME series power analyzers, enabling plant engineers to log kWh consumption per production cycle and identify inefficiency hotspots across the line. When combined with the ABB CP600 HMI panel, operators gain a real-time dashboard of drive status, energy throughput, and fault diagnostics — all without requiring a separate SCADA layer.

Communication is handled via DDCS fiber optic links to the ABB RDCO-03C communication adapter, which bridges the AC800PEC platform to higher-level control systems running PROFIBUS DP or Modbus TCP. This allows the KUC711AE to receive speed and torque setpoints from a central ABB AC500 PLC or third-party DCS, enabling coordinated multi-drive maintenance planning across an entire production line.

Maintenance and Replacement Notes

In cement grinding applications, replacing a failed or degraded KUC711AE control module in an ACS6000 drive can restore the mill motor’s ability to run at variable speed, reducing specific energy consumption (kWh/ton) by 15–25% compared to fixed-speed operation. The module’s real-time torque estimation eliminates the need for mechanical torque sensors, reducing both installation complexity and sensor-related failure points.

In water treatment facilities, the KUC711AE enables pump drives to follow flow demand curves precisely, avoiding the energy penalty of throttling valves or bypass circuits. A single medium-voltage pump motor running under AC800PEC vector control with a properly functioning KUC711AE can save tens of thousands of kWh annually compared to across-the-line starting.

In steel rolling mills and paper machines, where production line rhythm (takt time) is critical, the KUC711AE’s sub-millisecond torque response ensures that speed transitions between process stages are smooth and synchronized. This eliminates mechanical stress on couplings and gearboxes, extending equipment service life and reducing unplanned maintenance shutdowns. Predictive maintenance is further supported by the module’s built-in diagnostics, which log fault codes, thermal events, and communication errors — data that maintenance teams can use to schedule interventions before failures occur.

Every ABB 3BHB004661R0001 KUC711AE unit shipped by ZYPLC undergoes a full functional test on a live AC800PEC test bench, verifying communication integrity, control loop response, and power supply stability. Units are shipped with anti-static packaging and are backed by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for shipment arranged after confirmation.

Product Sourcing FAQ

Q1: How much energy can I save by replacing a faulty KUC711AE in my ACS6000 drive?
A: A degraded or failed KUC711AE often causes the drive to fall back to a reduced-performance or open-loop control mode, significantly increasing motor slip and reactive power consumption. Restoring full DTC operation with a replacement KUC711AE typically recovers 10–25% in energy efficiency depending on the load profile and motor class.

Q2: Is the 3BHB004661R0001 compatible with my existing AC800PEC system without firmware changes?
A: In most cases, yes. The KUC711AE is designed as a direct replacement within the AC800PEC platform. However, we recommend verifying the firmware revision of your existing system. Our technical team can assist with compatibility confirmation before shipment.

Q3: What is the testing process before shipment?
A: Each unit is tested on a live AC800PEC test bench. We verify DDCS fiber optic communication, analog and digital I/O signal integrity, control loop initialization, and power supply rail stability. A test report is available upon request.

Q4: What does the warranty terms confirmed during quotation cover?
A: The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days.
