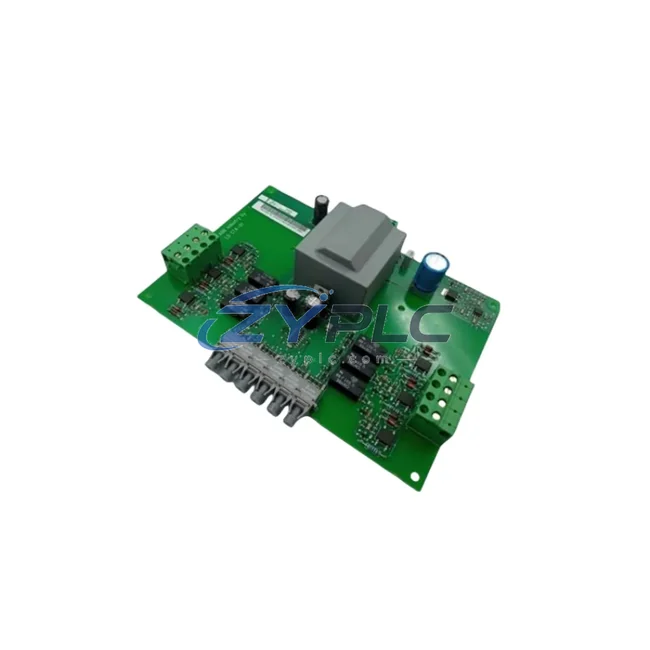

ABB 3BHB007030R0103 BE103 Excitation Module for UFC760 Systems

ABB 3BHB007030R0103 BE103 Excitation Module for UFC760 Systems: Control System Architecture and Upstream-Downstream Coordination

In modern power generation and industrial drive systems, excitation control is not a standalone function — it is a critical node within a layered automation architecture. The ABB 3BHB007030R0103 BE103 excitation control module is engineered to operate as an integral component of the UFC760 excitation system platform, coordinating signals across the control layer, I/O layer, network layer, power supply layer, HMI layer, and actuator layer to deliver consistent, reliable generator field regulation in demanding industrial environments.

This module serves as the core excitation regulation unit within the UFC760 system, processing voltage reference signals from the control layer and translating them into precise firing pulses for the thyristor bridge. Its role in the architecture is to maintain generator terminal voltage within defined limits during steady-state operation, load transients, and fault recovery sequences — ensuring that the broader power system remains stable and that downstream protection relays, transformers, and switchgear operate within their rated parameters.

Architecture Specification Table

Coordinated Control System Design

The ABB 3BHB007030R0103 BE103 does not operate in isolation. Within the UFC760 excitation system, it works in close coordination with a family of ABB modules and subsystems that together form a complete, redundant excitation control architecture.

At the control layer, the UFC760 BE101 master control board provides the system-level AVR setpoint and communicates with the BE103 via the internal backplane bus. The UFC760 BE102 interface module handles analog input conditioning — processing generator terminal voltage and current transformer signals before passing them to the BE103 for regulation computation. This signal chain ensures that the excitation response is based on accurately conditioned real-time measurements rather than raw, unfiltered field data.

On the power supply side, the UFC760 PS101 power supply module provides the regulated DC rails required by the BE103 and other logic boards within the excitation cubicle. Redundant power supply configurations are common in critical power plant applications, where a secondary UFC760 PS102 unit provides automatic switchover in the event of primary supply failure — a design that directly supports the high-availability requirements of grid-connected generators.

For I/O and signal distribution, the UFC760 IO101 digital I/O module handles discrete status signals — including field breaker feedback, protection relay trip inputs, and manual/auto mode selection — that the BE103 uses to determine its operating state and control mode. Analog output signals from the BE103, representing firing angle commands, are routed through the UFC760 AO101 analog output board to the thyristor firing unit, completing the closed-loop excitation control path.

At the HMI and supervisory layer, the UFC760 system interfaces with ABB’s Symphony Plus DCS or third-party SCADA platforms via the UFC760 COM101 communication gateway module, which supports MODBUS RTU and PROFIBUS DP protocols. This connectivity allows plant operators to monitor excitation current, reactive power output, and AVR status in real time from the control room, and to adjust setpoints remotely without interrupting generator operation.

For redundancy-critical installations, the UFC760 RDN101 redundancy switchover module enables bumpless transfer between the active and standby BE103 channels, ensuring that a single module failure does not result in a generator trip. This architecture is particularly valued in base-load power stations, petrochemical plant captive power units, and large industrial drives where unplanned outages carry significant operational and financial consequences.

Application in Layered Automation Systems

The ABB 3BHB007030R0103 BE103 finds application across a wide range of industries where synchronous generator excitation control is a critical process function.

In thermal and hydroelectric power generation, the BE103 regulates generator terminal voltage during load pickup, load shedding, and grid synchronization events. Its fast AVR response — typically within tens of milliseconds — prevents voltage excursions that could trigger protection relay operations or damage generator insulation.

In petrochemical and refinery captive power plants, where generator reliability directly affects process continuity, the BE103’s redundant architecture and warranty terms confirmed during quotation-backed reliability make it a preferred choice for maintenance engineers who need to minimize spare parts inventory risk while maintaining high system availability.

In mining and metallurgical facilities, large synchronous motors driving compressors, mills, and hoists are often controlled via static excitation systems architecturally similar to the UFC760 platform. The BE103’s ability to handle reactive power compensation in addition to voltage regulation makes it suitable for power factor correction applications in these high-load environments.

In water treatment and pumping stations, where variable-speed pump drives and generator sets must coordinate with utility grid requirements, the BE103 supports power system stabilizer (PSS) functions that damp low-frequency oscillations and improve grid stability — a capability increasingly required by grid operators as renewable penetration increases.

In packaging and process manufacturing lines, where captive generation supplements utility supply during peak demand periods, the BE103 enables smooth load transfer between grid and generator without voltage disturbances that could affect sensitive process instrumentation or variable frequency drives on the production line.

Architecture Engineering FAQ

Q1: Is the ABB 3BHB007030R0103 BE103 compatible with both new UFC760 system builds and existing installed systems requiring module replacement?
A: Yes. The BE103 is designed as a direct replacement module within the UFC760 excitation system architecture. For new system builds, it integrates with the full UFC760 module family including BE101, BE102, IO101, and COM101. For existing installations, it can replace a failed or degraded BE103 without requiring firmware reconfiguration of the host system, provided the UFC760 system firmware version is compatible. We recommend confirming the system revision level before ordering.

Q2: What commissioning and testing procedures are recommended when installing the BE103 in a redundant UFC760 architecture?
A: Prior to installation, each BE103 unit supplied by ZYPLC undergoes functional testing to verify gate pulse output integrity, analog input response, and backplane communication. On-site commissioning should include open-circuit excitation tests, AVR step response tests, and redundancy switchover verification using the UFC760 RDN101 module. All units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: How does ZYPLC support long-term maintenance and spare parts availability for the ABB UFC760 BE103?
A: ZYPLC maintains inventory of the 3BHB007030R0103 BE103 and related UFC760 system modules to support both planned maintenance programs and emergency replacement requirements. Our global logistics network supports DHL and FedEx express shipping to minimize generator downtime. For facilities managing multi-unit generator fleets, we offer volume pricing and consignment stock arrangements. All modules are covered by a warranty terms confirmed during quotation from the date of shipment.
