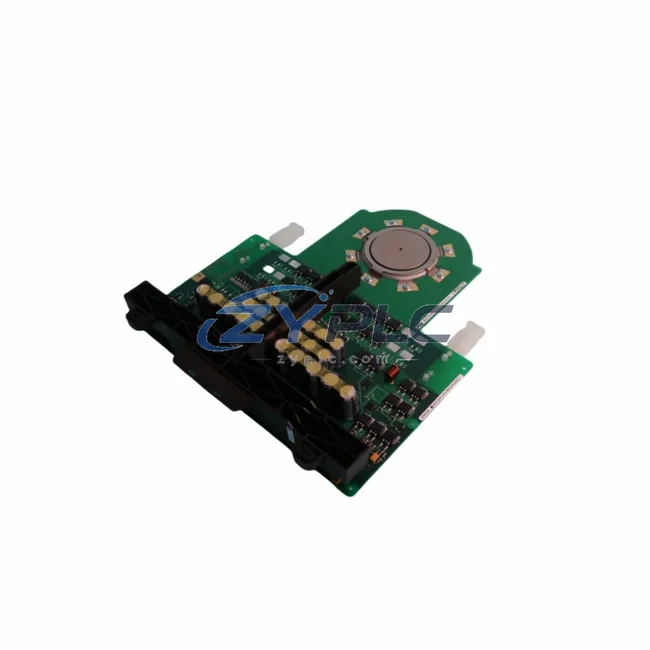

ABB 3BHB013088R0001 IGCT Module ACS6000

ABB 3BHB013088R0001 IGCT Module ACS6000: Replacement and Sourcing Information

The ABB 3BHB013088R0001 (also referenced as 5SHY3545L0010) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module engineered specifically for the ABB ACS6000 medium-voltage drive series. In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, this IGCT module plays a central role in delivering precise, low-loss power switching that reduces unnecessary energy dissipation across the entire drive system. Whether deployed in steel mills, cement plants, marine propulsion systems, or large-scale pump and fan applications, the 3BHB013088R0001 enables the ACS6000 to operate at peak switching efficiency while maintaining robust thermal stability under continuous heavy-load conditions.

Unlike conventional thyristor technologies, the IGCT architecture used in this module combines the low conduction losses of a GTO (Gate Turn-Off Thyristor) with the fast, reliable gate control of an IGBT. This hybrid characteristic allows the ACS6000 drive to achieve superior harmonic suppression and reduced switching losses — directly translating into measurable reductions in plant-level operating load. When integrated into a well-designed automation architecture, the 3BHB013088R0001 contributes to cycle-time optimization, smoother motor acceleration profiles, and reduced mechanical stress on connected equipment.

Product Specification Table

System Compatibility and Application

The 3BHB013088R0001 IGCT module does not operate in isolation — its operational-efficiency impact is fully realized when it functions as part of a coordinated automation architecture. In a typical ACS6000-based drive system, the IGCT module works in conjunction with the ABB AGDR-81C gate driver unit, which provides the precise gate pulse timing necessary to minimize switching transients and reduce electromagnetic interference across the power bus. Accurate gate timing directly reduces reactive power losses and improves the overall power factor of the installation.

On the control side, the ACS6000 drive communicates with higher-level automation systems via the ABB RDCO-03 DDCS communication module, enabling real-time energy data exchange with plant-level SCADA or DCS platforms. This integration allows operators to monitor instantaneous power draw, identify inefficient operating windows, and implement demand-response strategies that reduce peak operating load. Paired with the ABB RINT-5514C rectifier interface board, the system can also support active front-end configurations that feed regenerative braking energy back into the supply network — a critical feature in high-inertia applications such as large centrifugal compressors or hoisting systems.

For distributed I/O and field-level condition monitoring, the ABB AI810 analog input module and the ABB AO810V2 analog output module provide the signal conditioning infrastructure needed to interface with current transformers, power transducers, and temperature sensors installed throughout the motor and drive cabinet. These measurements feed into the ABB AC800M controller, which executes maintenance planning algorithms and adjusts drive output parameters in real time to maintain the most efficient operating point across varying load conditions.

In multi-drive installations, the ABB NPBA-12 PROFIBUS adapter module enables seamless integration of the ACS6000 into plant-wide fieldbus networks, allowing centralized maintenance planning systems to coordinate the operation of multiple drives simultaneously. This coordinated approach eliminates the unplanned downtime associated with uncoordinated motor starts, reduces harmonic distortion on the supply network, and supports predictive load-shedding strategies during peak tariff periods.

Maintenance and Replacement Notes

In a steel rolling mill application, the ACS6000 drive equipped with the 3BHB013088R0001 IGCT module controls the main rolling motor — typically a synchronous or wound-rotor induction motor in the multi-megawatt range. The IGCT’s low switching losses allow the drive to maintain precise speed control across the full torque range without the excessive heat generation that characterizes older thyristor bridge designs. This translates directly into reduced cooling system operating load, lower thermal cycling stress on insulation systems, and extended motor winding life.

In pump and fan applications — which collectively account for a significant share of industrial electricity consumption — the variable-speed capability enabled by the ACS6000 and its 3BHB013088R0001 IGCT module delivers operational stability that typically range from 20% to 50% compared to fixed-speed operation with throttling valves or dampers. By matching motor speed precisely to process demand, the drive eliminates the throttling losses that waste energy in conventional fixed-speed installations. The smooth acceleration and deceleration profiles also reduce mechanical wear on couplings, bearings, and seals, extending maintenance intervals and reducing unplanned downtime.

For predictive maintenance purposes, the ACS6000 drive continuously monitors IGCT junction temperature, gate drive current, and DC link voltage ripple. Deviations from baseline values trigger early warning alerts that allow maintenance teams to schedule component replacement during planned shutdowns rather than responding to unexpected failures. This shift from reactive to predictive maintenance reduces the average cost per maintenance event and improves overall equipment effectiveness (OEE) across the production line. All units supplied by ZYPLC undergo comprehensive outgoing quality inspection and functional testing prior to shipment, and are covered by a warranty terms confirmed during quotation from the date of delivery.

Product Sourcing FAQ

Q1: How does the 3BHB013088R0001 IGCT module contribute to operational stability in the ACS6000 drive?
The IGCT technology used in this module achieves lower conduction and switching losses compared to conventional GTO or IGBT-based designs at medium voltage levels. This directly reduces the heat generated during power conversion, which in turn lowers the energy consumed by the drive’s cooling system and improves the overall system efficiency. In variable-load applications such as pumps, fans, and compressors, the efficiency gains are compounded by the drive’s ability to precisely match motor output to process demand.

Q2: Is the 3BHB013088R0001 compatible with other ABB drive platforms beyond the ACS6000?
This module is specifically designed and qualified for use in the ABB ACS6000 medium-voltage drive series. While the underlying 5SHY3545L0010 IGCT device may share characteristics with components used in other ABB platforms such as the PCS6000 power converter, installation in non-ACS6000 systems should only be performed after consulting ABB’s technical documentation and confirming compatibility with the specific drive firmware and gate driver configuration.

Q3: What is the recommended replacement procedure, and how can downtime be minimized?
IGCT module replacement in the ACS6000 should follow ABB’s documented service procedure, which includes de-energizing the DC link, verifying zero voltage with a calibrated meter, and following the specified torque values for bus bar connections. ZYPLC recommends maintaining at least one spare 3BHB013088R0001 module on-site for critical drive installations to enable same-shift replacement in the event of a module fault. Our team can advise on spare parts inventory strategy based on your specific application and production criticality.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every 3BHB013088R0001 module supplied by ZYPLC undergoes outgoing quality inspection including visual examination, gate drive continuity verification, and insulation resistance testing. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Warranty claims are supported by ZYPLC’s technical team, and replacement units are dispatched promptly to minimize production impact.
