ABB 3BHB030310R0001 5SHY4045L0006 IGCT Module for ACS Series

ABB 3BHB030310R0001 5SHY4045L0006 IGCT Module: Industrial Data Link for ACS Series Drive Systems

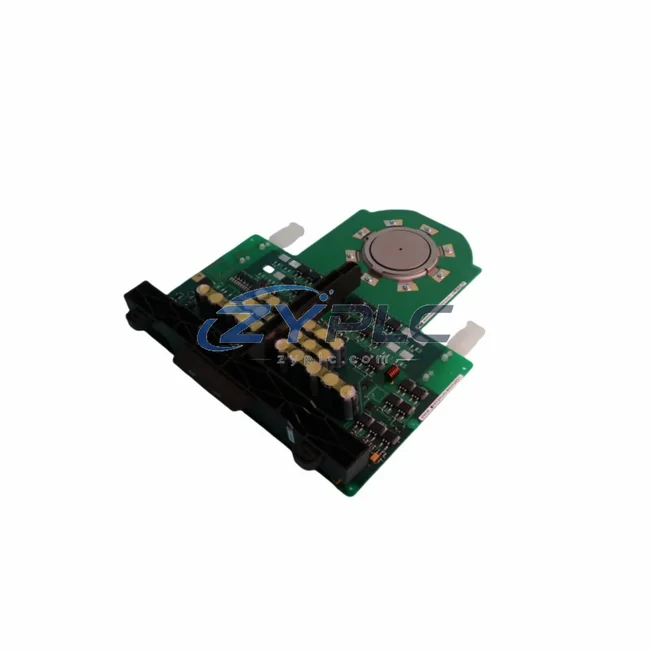

The ABB 3BHB030310R0001 / 5SHY4045L0006 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module engineered for ABB’s ACS Series medium-voltage drive platforms. As a core power switching component, this IGCT module sits at the heart of the drive’s inverter stage, enabling precise, high-efficiency control of motor current and voltage across demanding industrial environments. In smart factory architectures where uptime, data transparency, and system interoperability are non-negotiable, the 3BHB030310R0001 / 5SHY4045L0006 delivers the switching reliability that underpins every layer of the automation data chain — from field-level motor control to SCADA dashboards and remote diagnostic platforms.

In modern industrial sites, the drive system is not an isolated island. It is a node in a broader network of PLCs, remote I/O modules, HMI panels, communication gateways, and edge computing devices. The ABB ACS Series drives equipped with this IGCT module are designed to integrate seamlessly into these architectures, supporting real-time data exchange with supervisory systems via PROFIBUS-DP, PROFINET, Modbus RTU/TCP, EtherNet/IP, and DeviceNet communication adapters. This means that every switching event, thermal reading, fault code, and load curve generated by the 3BHB030310R0001 / 5SHY4045L0006 can be captured, transmitted, and acted upon across the full automation stack.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the role of the ABB 3BHB030310R0001 / 5SHY4045L0006 requires tracing the full data flow of a connected drive system. At the field level, process sensors — including temperature transmitters, pressure transducers, and flow meters — feed analog and digital signals into remote I/O modules such as the ABB CI854A or compatible third-party Profibus I/O racks. These signals are processed by the site PLC — commonly an ABB AC500 series controller or a Siemens S7-300/400 — which issues speed and torque references to the ACS Series drive via the fieldbus adapter.

Inside the ACS drive, the IGCT module 3BHB030310R0001 / 5SHY4045L0006 executes the switching commands from the drive’s control board, converting DC bus energy into precisely modulated AC output to the motor. Simultaneously, the drive’s onboard diagnostics — including IGCT junction temperature, gate current waveforms, and DC link voltage — are packaged as process data objects and transmitted upstream via PROFINET or EtherNet/IP to the plant’s SCADA system, such as ABB System 800xA, Siemens WinCC, or Wonderware InTouch. HMI panels on the production floor, such as the ABB CP600 series or Siemens TP700 Comfort, display real-time drive status, alarm states, and energy consumption data derived directly from the IGCT module’s operating parameters.

For multi-drive installations — common in pump stations, compressor trains, and rolling mill lines — the ACS Series drives communicate with each other and with the master PLC through a coordinated fieldbus segment. Communication gateways such as the ABB NMBP-01 or HMS Anybus X-gateway bridge legacy Modbus RTU devices to the PROFINET backbone, ensuring that older field instruments remain visible to the SCADA layer without requiring hardware replacement. Edge gateways, including the ABB Edge Controller or Moxa UC-8100 series, aggregate drive data locally and push structured datasets to cloud-based MES or ERP platforms via MQTT or OPC-UA, enabling production KPI tracking and predictive maintenance scheduling based on IGCT switching cycle counts and thermal history.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation. A typical plant may operate ABB ACS drives on PROFIBUS-DP alongside legacy Modbus RTU instruments, newer PROFINET-based PLCs, and EtherNet/IP-connected safety systems — all generating valuable process data that remains siloed without the right integration architecture. The ABB 3BHB030310R0001 / 5SHY4045L0006, as the switching core of the ACS drive, is the origin point of critical drive health data that must flow freely across these protocol boundaries.

By pairing the ACS Series drive with appropriate fieldbus adapter modules — such as the ABB FPBA-01 for PROFIBUS or the FENA-21 for EtherNet/IP and PROFINET — plant engineers can expose IGCT module diagnostics, load profiles, and fault histories to any supervisory system on the network. This eliminates the data isolation that traditionally forced maintenance teams to physically inspect drive cabinets for fault codes, replacing manual inspection with automated alarm forwarding to SCADA and email/SMS notification systems.

For remote sites — offshore platforms, water treatment facilities, mining operations — the ability to monitor IGCT module health remotely is transformative. Remote diagnostic tools integrated into the ACS drive’s communication stack allow engineering teams to review switching waveforms, thermal trends, and gate drive integrity from a central control room or mobile device, reducing unplanned downtime and extending the service interval of the 3BHB030310R0001 / 5SHY4045L0006 through condition-based maintenance rather than fixed-schedule replacement. Production line transparency improves as every drive node becomes a visible, queryable data source within the plant’s unified automation network.

System expansion is equally straightforward. As production capacity grows, additional ACS Series drives equipped with the same IGCT module family can be added to the fieldbus segment without architectural redesign. The consistent communication interface of the ACS platform ensures that new drive nodes are recognized by the PLC and SCADA system immediately upon commissioning, with drive parameters and IGCT diagnostics available to the supervisory layer within minutes of startup.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB ACS Series drive support when using the 3BHB030310R0001 / 5SHY4045L0006 IGCT module?
A: The ACS Series drive supports PROFIBUS-DP, PROFINET, EtherNet/IP, Modbus RTU/TCP, and DeviceNet through interchangeable fieldbus adapter modules. The IGCT module itself interfaces with the drive’s internal control board; protocol selection is determined by the adapter fitted to the drive’s option slot, allowing the same 3BHB030310R0001 / 5SHY4045L0006 hardware to operate across diverse network architectures.

Q2: How does the IGCT module affect communication latency and real-time control performance?
A: The 3BHB030310R0001 / 5SHY4045L0006 operates at the power switching layer, executing gate commands issued by the drive’s DSP control board with microsecond-level response times. Communication latency at the fieldbus layer — typically 1–10 ms for PROFINET IRT or PROFIBUS-DP — does not impact IGCT switching performance, as the drive’s local control loop operates independently of the network cycle. This architecture ensures deterministic motor control even under network load conditions.

Q3: Is the 3BHB030310R0001 / 5SHY4045L0006 compatible with SCADA and DCS integration for remote monitoring?
A: Yes. When the ACS Series drive is configured with an appropriate communication adapter, all IGCT module diagnostic data — including junction temperature estimates, gate current status, and fault codes — is available as process data on the fieldbus. SCADA systems such as ABB System 800xA, Siemens WinCC, and Wonderware can subscribe to this data via OPC-DA/UA servers, enabling real-time monitoring dashboards and automated alarm management without additional hardware.

Q4: What warranty and pre-shipment testing is provided for the 3BHB030310R0001 / 5SHY4045L0006?
A: Every ABB 3BHB030310R0001 / 5SHY4045L0006 IGCT module supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional verification including gate drive integrity checks and visual inspection to ABB quality standards. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, commissioning, and integration queries.
