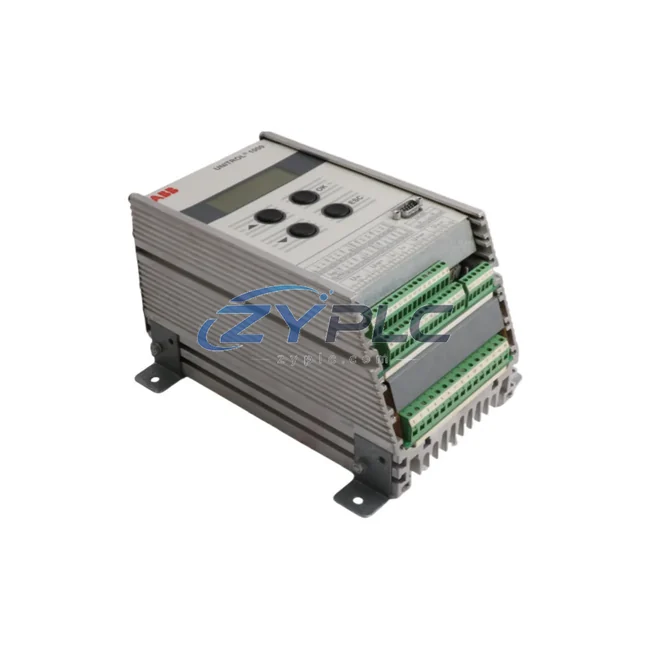

ABB 3BHE005774R0002 AVR UNITROL 1000 Voltage Regulator

ABB 3BHE005774R0002 UNITROL 1000 AVR: Industrial Data Link for Smart Factory Excitation Networks

The ABB 3BHE005774R0002 is a high-performance Automatic Voltage Regulator (AVR) from ABB’s renowned UNITROL 1000 series, engineered for precision excitation control in synchronous generators and industrial power generation systems. As a critical node in the industrial data chain, the UNITROL 1000 AVR bridges the gap between field-level excitation hardware and upper-level SCADA, DCS, and HMI supervisory platforms — enabling real-time voltage regulation, reactive power management, and remote diagnostics across complex smart factory power networks.

In modern industrial facilities, power quality and generator stability are foundational to uninterrupted production. The 3BHE005774R0002 delivers closed-loop excitation control with millisecond-level response, ensuring that voltage deviations are corrected before they propagate into downstream automation equipment. Its integrated communication architecture supports seamless data exchange with ABB’s broader automation ecosystem, including ABB AC500 PLC controllers, ABB Symphony Plus DCS platforms, and ABB Ability™ SCADA systems — forming a unified industrial network where excitation data, alarm signals, and diagnostic telemetry flow continuously from the generator field to the control room.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB 3BHE005774R0002 UNITROL 1000 operates at the heart of a layered industrial communication architecture. At the field level, excitation current and terminal voltage signals are continuously sampled from the generator’s rotor and stator circuits. These analog measurements are digitized within the AVR’s internal DSP core and transmitted upstream via PROFIBUS DP or Modbus RTU to the plant’s primary control layer.

In a typical smart factory power generation topology, the UNITROL 1000 AVR connects directly to an ABB AC500 PM591 PLC, which aggregates excitation status alongside other plant parameters — motor drive feedback from ABB ACS880 variable frequency drives, breaker status from ABB REF615 protection relays, and load data from ABB M2M energy meters. The PLC forwards consolidated data packets over an Industrial Ethernet backbone to the SCADA layer, where operators monitor generator performance in real time through ABB Ability™ System 800xA or third-party SCADA platforms via Modbus TCP.

For facilities requiring protocol bridging between legacy serial networks and modern Ethernet-based control systems, the UNITROL 1000 AVR can be paired with an ABB CI854 PROFIBUS communication interface module or a dedicated Anybus X-gateway industrial protocol converter, enabling transparent data flow between PROFIBUS DP segments and PROFINET or EtherNet/IP networks. Remote I/O expansion is supported through ABB S800 I/O modules, which relay discrete and analog signals from field sensors — including PT100 temperature probes, current transformers, and voltage transducers — back to the UNITROL 1000’s control loop.

At the HMI layer, operators interact with excitation parameters through ABB CP600 operator panels or Siemens SIMATIC HMI terminals connected via Modbus TCP, enabling setpoint adjustments, mode switching (Auto/Manual/FCR), and real-time trend visualization without interrupting generator operation. Alarm events generated by the 3BHE005774R0002 — including over-excitation, under-excitation, and field current limit activations — are automatically forwarded to the plant’s alarm management system and can trigger automated responses in connected ABB Freelance DCS controllers or third-party safety PLCs.

Edge computing nodes, such as the ABB Edge Controller EC2 series, can be deployed alongside the UNITROL 1000 to perform local data preprocessing, historical logging, and OPC-UA publishing — enabling cloud-based remote diagnostics and predictive maintenance analytics without relying on continuous WAN connectivity. This edge-to-cloud data pipeline ensures that generator health data is always available to plant engineers, whether on-site or remotely accessing the system through a secure VPN tunnel.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial power generation environments is protocol fragmentation. Legacy excitation systems often communicate exclusively over proprietary serial protocols, creating data silos that prevent integration with modern Ethernet-based SCADA and MES platforms. The ABB 3BHE005774R0002 UNITROL 1000 addresses this directly by supporting multiple fieldbus standards — PROFIBUS DP, Modbus RTU, and CANopen — within a single hardware platform, eliminating the need for external protocol converters in most standard integration scenarios.

Remote monitoring is another critical capability delivered by the UNITROL 1000 architecture. In geographically distributed power plants or multi-unit generation facilities, maintaining visibility into each generator’s excitation state without physical site visits is essential for operational efficiency. The AVR’s Ethernet communication port enables direct integration with plant-wide SCADA systems, allowing remote engineers to monitor voltage regulation performance, reactive power output, and fault history from a centralized control room — reducing unplanned downtime and accelerating fault diagnosis.

Production line transparency is enhanced through the UNITROL 1000’s comprehensive event logging and diagnostic data export capabilities. Every excitation event, setpoint change, and protection activation is timestamped and stored in the AVR’s internal memory, providing a complete audit trail for post-event analysis and regulatory compliance reporting. This data can be exported via Modbus TCP to historian servers such as OSIsoft PI or Wonderware InTouch, enabling long-term trend analysis and capacity planning.

System scalability is built into the UNITROL 1000 platform through its modular communication interface design. As plant automation requirements evolve — adding new generator units, integrating renewable energy sources, or upgrading to IEC 61850-compliant protection schemes — the AVR’s fieldbus module slot allows communication protocol upgrades without replacing the core excitation hardware, protecting the capital investment and minimizing system downtime during expansion projects.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3BHE005774R0002 UNITROL 1000 support, and is it compatible with third-party SCADA systems?
The UNITROL 1000 AVR natively supports PROFIBUS DP, Modbus RTU, and CANopen communication protocols. Modbus TCP connectivity is available via the Ethernet interface, enabling direct integration with virtually all major SCADA platforms — including Wonderware, Ignition, iFIX, and ABB Ability™ System 800xA — without requiring proprietary middleware. For IEC 61850 compliance, an external gateway module is recommended.

Q2: How does the UNITROL 1000 ensure network stability and minimize communication latency in real-time excitation control applications?
The 3BHE005774R0002 employs a deterministic PROFIBUS DP communication cycle with configurable polling intervals as low as 1 ms, ensuring that excitation setpoint updates and status feedback are transmitted with minimal latency. The AVR’s internal watchdog timer monitors communication link integrity and automatically switches to a safe local control mode if network connectivity is lost — preventing uncontrolled excitation transients during communication failures.

Q3: Can the ABB 3BHE005774R0002 be integrated into an existing plant network without replacing legacy control infrastructure?
Yes. The UNITROL 1000’s multi-protocol support and modular fieldbus interface design allow it to be integrated into existing PROFIBUS DP or Modbus RTU networks alongside legacy PLCs, DCS controllers, and protection relays without requiring a complete control system overhaul. Protocol gateway modules can bridge the UNITROL 1000 to newer EtherNet/IP or PROFINET networks where required, enabling phased modernization of plant automation infrastructure.

Q4: What pre-shipment testing and warranty coverage is provided for the ABB 3BHE005774R0002?
Every ABB 3BHE005774R0002 unit supplied by ZYPLC undergoes comprehensive pre-shipment functional verification, including communication interface testing, excitation control loop validation, and protection function checks. All units are covered by a warranty terms confirmed during quotation from the date of shipment, with technical support available for integration assistance, parameter configuration, and fault diagnosis throughout the warranty period.
