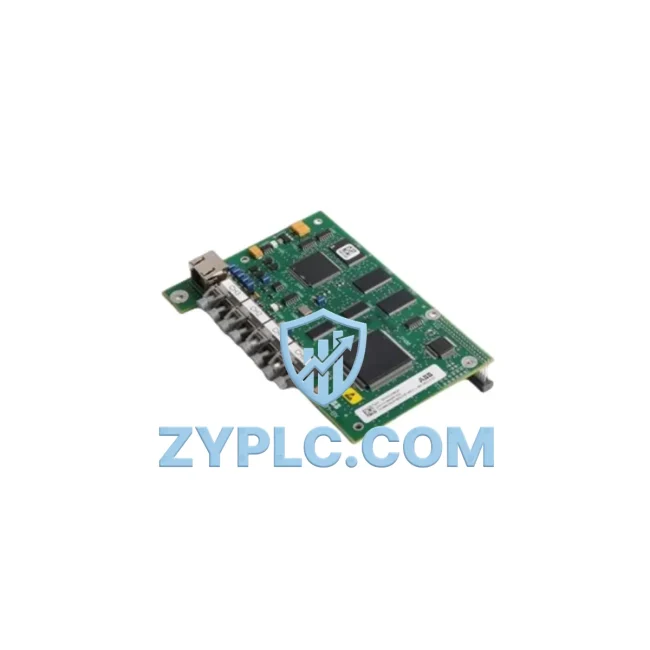

ABB 3BHE012276R0101 UAD143A101 Industrial Network Interface for AC800M Systems

ABB 3BHE012276R0101 UAD143A101: Industrial Data Link for AC800M Smart Factory Systems

The ABB 3BHE012276R0101 UAD143A101 is a high-performance analog input module engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to serve as a critical node in industrial data acquisition chains, this module bridges the gap between field-level sensors and upper-level control, SCADA, and HMI systems. In modern smart factory environments where real-time data integrity and network stability are non-negotiable, the UAD143A101 delivers the signal fidelity and protocol compatibility required to sustain continuous, transparent production operations.

As industrial sites evolve toward fully connected architectures, the demand for reliable analog signal processing at the I/O layer has never been greater. The 3BHE012276R0101 UAD143A101 accepts multi-channel analog inputs from field instruments — including 4–20 mA current loops, thermocouple transmitters, RTD sensors, and pressure transducers — and converts them into digitized process values that are transmitted across the AC800M backplane to the PM866 or PM891 controller modules. This seamless signal path forms the backbone of real-time monitoring, alarm management, and closed-loop control in process-intensive industries such as oil and gas, power generation, chemical processing, and water treatment.

Network Communication Table

Connected Automation Data Flow

In a fully integrated AC800M control architecture, the UAD143A101 analog input module operates as the first link in the industrial data chain. Field-mounted sensors — such as Endress+Hauser Promag electromagnetic flowmeters, Rosemount 3051 pressure transmitters, and Pt100 RTD temperature sensors — feed analog signals directly into the UAD143A101’s input channels. These signals are conditioned, digitized, and passed via the S800 I/O Modulebus to the AC800M controller, typically a PM866K01 or PM891K01 processor module, which executes the control logic in real time.

The controller communicates upstream through the CI854A PROFIBUS DP Master coupler, enabling integration with third-party field devices and remote I/O stations on the PROFIBUS network. For Modbus-based legacy equipment — including older SCADA RTUs, variable frequency drives such as the ABB ACS880 series, and motor control centers — the CI857 Modbus Master coupler provides seamless protocol bridging without requiring additional gateways. Where Foundation Fieldbus instruments are deployed, the CI860 FF HSE Linking Device connects the AC800M to FF H1 segments, enabling digital communication with smart field devices.

At the supervisory level, the AC800M controller interfaces with ABB System 800xA — the integrated SCADA and HMI platform — via the plant network (Ethernet TCP/IP). Operators at the 800xA workstation receive live process values sourced from the UAD143A101 channels, enabling real-time trend visualization, alarm management, and historical data logging. For remote sites or distributed plant sections, the ABB AC800M Connect remote access solution allows engineers to perform diagnostics and parameter adjustments without physical presence on the plant floor.

Edge computing nodes, such as the ABB Ability Edge gateway, can further aggregate data from multiple AC800M controllers and forward it to cloud-based analytics platforms, enabling predictive maintenance and OEE (Overall Equipment Effectiveness) monitoring across the enterprise. The UAD143A101 thus sits at the origin of a data flow that spans from raw analog signals all the way to enterprise-level dashboards — making it a foundational component in any IIoT-ready smart factory deployment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the inability to share process information across different control systems, protocols, and vendor platforms. The ABB 3BHE012276R0101 UAD143A101, as part of the AC800M ecosystem, directly addresses this challenge through its compatibility with multiple communication couplers and open protocol standards.

Sites running mixed-vendor environments — where ABB DCS controllers coexist with Siemens S7 PLCs, Schneider Electric Modicon systems, or Yokogawa CENTUM controllers — can use the AC800M’s protocol coupler architecture to normalize data from the UAD143A101 into standard formats readable by any SCADA or MES platform. This eliminates the need for proprietary middleware and reduces integration costs significantly.

For production line transparency, the UAD143A101 enables continuous analog signal monitoring across all connected process loops. Deviations from setpoints trigger alarms in the 800xA HMI within milliseconds, allowing operators to respond before process upsets escalate. Remote diagnostic capabilities — accessible via the AC800M’s built-in Ethernet port — allow maintenance engineers to review I/O channel health, signal quality, and module diagnostics from any networked workstation.

System expansion is equally straightforward: additional UAD143A101 modules can be added to existing S800 I/O stations without controller downtime, supporting phased capacity increases as production demands grow. Each module is factory-tested prior to shipment, and all units supplied by ZYPLC carry a 12-month warranty, ensuring operational confidence from day one of installation.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3BHE012276R0101 UAD143A101 support in an AC800M system?
The UAD143A101 itself operates on the S800 I/O Modulebus (ABB’s proprietary backplane bus). When paired with communication couplers such as the CI854A (PROFIBUS DP), CI857 (Modbus RTU), or CI860 (Foundation Fieldbus), the AC800M system can exchange data with a wide range of field devices, PLCs, and SCADA systems using industry-standard protocols. This makes it compatible with virtually any modern industrial network architecture.

Q2: How does this module ensure network stability and minimize communication latency in real-time control applications?
The UAD143A101 is designed for deterministic, cycle-time-consistent data delivery over the AC800M backplane. The S800 I/O bus operates at a fixed scan rate synchronized with the controller’s execution cycle, ensuring that analog process values are updated with minimal and predictable latency. This is critical for closed-loop control applications where signal delays can cause process instability or safety incidents.

Q3: Can the UAD143A101 be integrated with third-party SCADA or HMI systems outside of ABB 800xA?
Yes. The AC800M controller exposes process data via OPC DA/UA servers over Ethernet, allowing any OPC-compatible SCADA or HMI platform — including Wonderware InTouch, Ignition by Inductive Automation, and Siemens WinCC — to subscribe to live data from UAD143A101 channels. This open connectivity ensures that the module can be deployed in multi-vendor control room environments without vendor lock-in.

Q4: What quality assurance and warranty coverage is provided with this module?
All ABB 3BHE012276R0101 UAD143A101 modules supplied by ZYPLC undergo pre-shipment functional testing to verify channel integrity, signal accuracy, and communication bus compatibility. Each unit is covered by a 12-month warranty against manufacturing defects and operational failures. In-stock units are available for immediate dispatch via DHL or FedEx Express, with tracking provided upon shipment confirmation.
