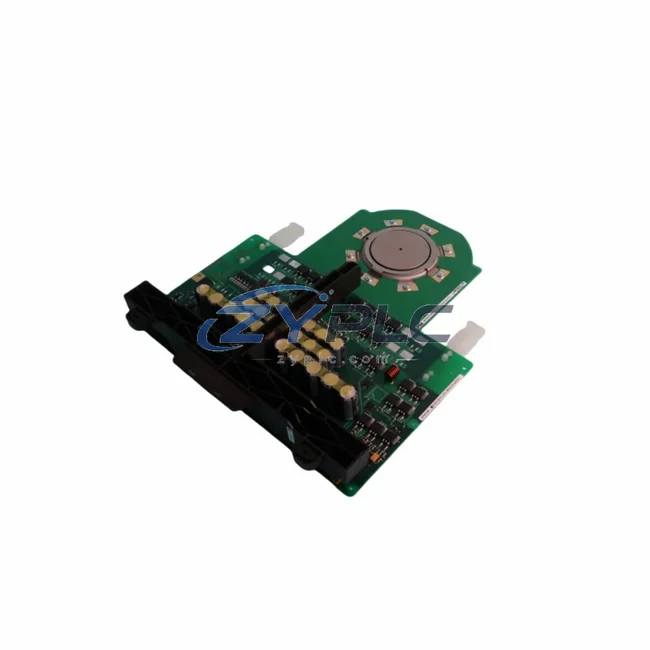

ABB 3BHE023784R0001 5SHY3545L0014 IGCT Power Module ACS6000

ABB 3BHE023784R0001 5SHY3545L0014 IGCT Power Module: Industrial Data Link for ACS6000 Drive Systems

The ABB 3BHE023784R0001 (paired component: 5SHY3545L0014) is a high-performance IGCT (Integrated Gate-Commutated Thyristor) Power Module engineered for the ABB ACS6000 medium-voltage variable speed drive platform. In modern smart factory environments, the ACS6000 series serves as the backbone of high-power motor control, managing multi-megawatt loads in industries ranging from oil and gas compression to marine propulsion, mining hoists, and large-scale pump and fan applications. The 3BHE023784R0001 module sits at the heart of this drive’s power conversion stage, enabling precise, low-loss switching that underpins the entire automation data chain — from field-level signal acquisition all the way to enterprise SCADA dashboards.

In a connected industrial site, the ACS6000 drive communicates upstream via ABB’s DDCS (Distributed Drive Control System) fiber-optic protocol and supports integration with PROFIBUS-DP, Modbus RTU, and PROFINET through optional communication adapter modules such as the RPBA-01 PROFIBUS Adapter or the RETA-01 Ethernet Adapter. These gateways bridge the drive’s internal control bus to plant-level DCS and SCADA platforms, enabling real-time torque, speed, and fault data to flow continuously to operator HMI stations and historian servers. The 3BHE023784R0001 IGCT module’s switching integrity is therefore not merely a power electronics concern — it is a prerequisite for uninterrupted data fidelity across the entire automation network.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding where the 3BHE023784R0001 sits within the broader automation data flow is essential for system integrators and maintenance engineers. At the field level, process sensors — including pressure transmitters, flow meters, and vibration monitors — feed analog and digital signals into remote I/O modules such as the ABB S900 Remote I/O or Siemens ET 200SP distributed I/O. These signals are aggregated by a PLC controller, typically an ABB AC500 or a Siemens S7-400H in redundant configurations, which then issues speed and torque references to the ACS6000 drive over the DDCS fiber-optic link.

Inside the ACS6000 cabinet, the AMC (Adaptive Motor Control) board receives these references and generates precise gate pulses for the 3BHE023784R0001 IGCT module. The IGCT’s switching events are monitored in real time by the drive’s AINT (Auxiliary Interface) board, which logs fault codes, thermal status, and gate unit health. This diagnostic data is packaged and transmitted upstream via the RPBA-01 PROFIBUS adapter to the plant DCS — for example, an ABB System 800xA or a Siemens PCS 7 — where operators monitor drive performance on HMI panels and SCADA trend screens.

For facilities running Ethernet-based architectures, the RETA-01 Ethernet Adapter enables the ACS6000 to participate in PROFINET or Modbus TCP networks, allowing seamless integration with edge computing gateways and IIoT platforms. Alarm events generated by the 3BHE023784R0001 — such as overcurrent trips or gate unit failures — are forwarded in milliseconds to the SCADA historian, triggering automated maintenance workflows and remote diagnostic sessions without requiring on-site intervention. This closed-loop data chain, from IGCT switching event to SCADA alarm acknowledgment, exemplifies the connectivity value that a correctly specified and verified power module delivers in a smart factory environment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in medium-voltage drive installations is protocol fragmentation. Legacy sites may run PROFIBUS-DP on the drive network while newer additions use PROFINET or EtherNet/IP, creating data silos where drive fault information never reaches the central SCADA system. The ACS6000’s modular communication architecture — enabled by a healthy, correctly functioning 3BHE023784R0001 power stage — supports multi-protocol adapter configurations that bridge these gaps without requiring a full drive replacement.

Remote monitoring is another critical pain point. When an IGCT module degrades, early warning signs — rising junction temperatures, increased gate current demand, or intermittent overcurrent events — are captured by the ACS6000’s internal diagnostics and transmitted to the SCADA historian. Without a verified, OEM-quality replacement module like the 3BHE023784R0001, these diagnostic signals become unreliable, undermining the predictive maintenance strategies that modern smart factories depend on. Sourcing a tested, warranted module ensures that the drive’s self-reporting capability remains intact, keeping production lines transparent and auditable.

System expansion is equally straightforward when the power module is correctly specified. Adding a new motor drive to an existing ACS6000 multi-drive system requires only that the new IGCT module matches the existing gate unit and AMC board firmware revision — a compatibility check that ZYPLC’s technical team performs as part of every pre-shipment verification. This approach eliminates integration risk and accelerates commissioning timelines, allowing plant engineers to scale drive capacity without disrupting existing network topologies or SCADA configurations.

Industrial Connectivity FAQ

Q1: What communication protocols does the ACS6000 drive support when using the 3BHE023784R0001 IGCT module?
The ACS6000 natively uses ABB’s DDCS fiber-optic protocol for internal drive-to-control communication. For plant-level integration, optional adapter modules (RPBA-01 for PROFIBUS-DP, RETA-01 for PROFINET/Modbus TCP) extend connectivity to DCS, SCADA, and PLC systems. The health of the 3BHE023784R0001 power module directly affects the reliability of all data transmitted through these channels.

Q2: How does a faulty IGCT module affect network stability and SCADA data integrity?
A degraded IGCT module causes irregular switching events that generate spurious fault codes and erratic process data. These false signals propagate through the DDCS link to the DCS/SCADA system, triggering unnecessary alarms and complicating root-cause analysis. Replacing the module with a verified 3BHE023784R0001 restores clean switching and reliable data transmission.

Q3: Is the 3BHE023784R0001 compatible with all ACS6000 drive configurations and firmware versions?
The 3BHE023784R0001 is designed for the ACS6000 medium-voltage drive platform. Compatibility with specific cabinet configurations and AMC firmware versions should be confirmed against the drive’s serial number and software revision. ZYPLC’s technical team provides pre-shipment compatibility verification as part of the standard supply process.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 3BHE023784R0001 supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes gate unit continuity checks, insulation resistance measurement, and functional verification against ABB’s published acceptance criteria. Test records are available upon request and accompany each shipment.
