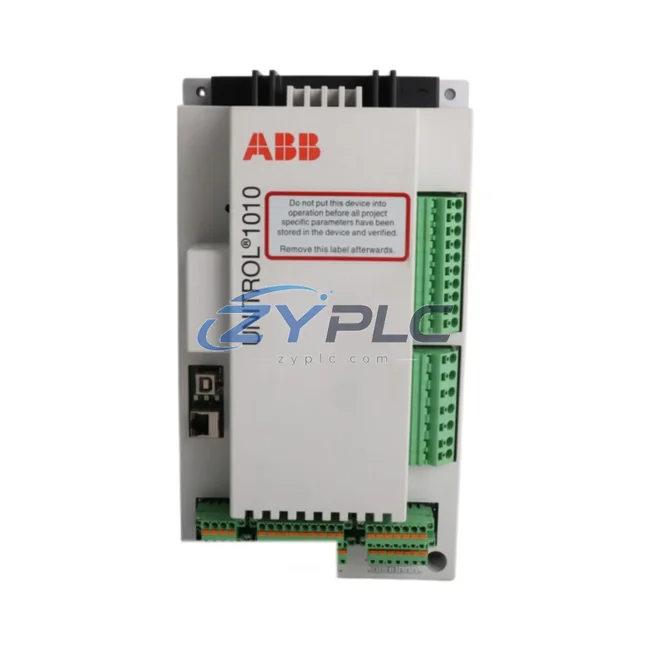

ABB 3BHE035301R0410 UNS0121A-Z V1 Voltage Regulator for UNITROL

ABB 3BHE035301R0410 UNS0121A-Z V1 Voltage Regulator for UNITROL

The ABB 3BHE035301R0410 UNS0121A-Z V1 is a precision automatic voltage regulator (AVR) module engineered for deployment within ABB’s UNITROL excitation control platform. Rather than functioning as a standalone component, this module occupies a critical position in the generator excitation control layer — directly governing field current regulation, reactive power management, and terminal voltage stability across synchronous generators in power generation and industrial drive applications. Its role within the broader control architecture makes it indispensable for engineers designing or maintaining high-availability power systems where voltage quality and system synchronization are non-negotiable.

In a layered automation architecture, the UNS0121A-Z V1 operates at the intersection of the control layer and the power conversion layer. It receives setpoint commands from the supervisory control system — typically an ABB AC800M controller or a UNITROL 6800 / UNITROL 5000 master excitation controller — and translates those commands into precise field excitation signals. The module communicates upstream via the UNITROL internal bus and supports integration with plant-level SCADA or DCS platforms through standardized communication interfaces. This system integration capability ensures that the voltage regulator does not operate in isolation but participates fully in the coordinated response of the entire power plant control system.

From a system architecture perspective, the 3BHE035301R0410 is designed to work in close coordination with companion modules within the UNITROL rack. The UNS0881A power interface board manages the thyristor firing signals that translate the AVR’s output into actual field current. The UNS0882A feedback measurement board provides the real-time terminal voltage and current signals that the UNS0121A-Z V1 uses for closed-loop regulation. The UNS0880A I/O interface module handles discrete signal exchange with the plant protection system, enabling fast de-excitation and field suppression upon generator trip. Together, these modules form a tightly integrated excitation subsystem that delivers sub-cycle voltage response and high regulation accuracy.

At the network and communication layer, the UNITROL excitation system interfaces with plant automation through ABB’s proprietary communication protocols as well as industry-standard fieldbus options. The UNS0121A-Z V1 supports parameter configuration and real-time monitoring via the UNITROL CMT (Commissioning and Maintenance Tool), which connects through the front-panel service port. For integration into ABB System 800xA or third-party DCS environments, the UNITROL 6800 gateway module provides Modbus TCP, PROFIBUS DP, or IEC 61850 connectivity, ensuring that the voltage regulator’s operating state, alarms, and setpoints are fully visible at the supervisory level.

Redundancy is a core design consideration for the UNITROL platform, and the UNS0121A-Z V1 is fully compatible with ABB’s dual-channel excitation architecture. In redundant configurations, two complete AVR channel assemblies — each comprising a UNS0121A-Z V1 regulator board, associated measurement and I/O modules, and independent power supplies — operate in hot-standby mode. The active channel continuously tracks the standby channel’s output to ensure bumpless transfer upon fault detection. This architecture meets the availability requirements of power plants operating under grid codes that mandate excitation system redundancy, including those in the utility, petrochemical, and offshore sectors.

The power supply layer for the UNITROL excitation system is provided by dedicated auxiliary power modules that derive their input from the generator terminal voltage or an independent AC auxiliary bus. The UNS0121A-Z V1 requires a stable low-voltage DC supply for its logic and analog circuits, which is typically provided by the UNITROL internal power distribution board. Proper power sequencing and supply monitoring are essential during commissioning to prevent damage to the sensitive analog regulation circuitry. Engineers should verify supply voltage tolerances and ripple specifications against the module’s datasheet before energization.

For field engineers and maintenance teams, the 3BHE035301R0410 UNS0121A-Z V1 offers significant advantages in terms of long-term serviceability. The module is designed for hot-swap replacement within the UNITROL rack, minimizing generator downtime during scheduled maintenance or unplanned fault response. Parameter sets stored in the UNITROL master controller can be downloaded to a replacement module within minutes, restoring full excitation functionality without the need for extensive re-commissioning. This maintainability characteristic is particularly valuable in remote power generation facilities where engineering support resources are limited.

Applications for this module span a wide range of industries and installation environments. In thermal and hydroelectric power generation, the UNS0121A-Z V1 provides the voltage regulation precision required for stable grid synchronization and reactive power dispatch. In industrial cogeneration plants within the petrochemical and refining sectors, it ensures that generator terminal voltage remains within tight tolerances despite rapidly varying load conditions. In mining and mineral processing facilities, where large synchronous motors and generators operate in close proximity, the module’s fast response characteristics help maintain power quality and prevent voltage collapse during motor starting events. Water treatment and desalination plants with on-site generation also benefit from the module’s ability to maintain stable voltage during pump load switching.

Product Specification Table

System Compatibility Notes

The UNS0121A-Z V1 achieves its full performance potential only when integrated within a correctly configured UNITROL excitation rack. A complete excitation channel typically includes the UNS0882A terminal voltage and current measurement board, which feeds real-time analog signals to the AVR’s regulation algorithms. The UNS0881A thyristor firing board translates the AVR’s phase-angle output into gate pulses for the excitation bridge rectifier. The UNS0880A I/O board manages protection interlocks, field suppression commands, and status signals exchanged with the generator protection relay — commonly an ABB REG670 or RET670 generator protection IED.

At the supervisory level, the UNITROL 6800 master controller coordinates multiple excitation channels, manages the active/standby channel selection logic, and provides the plant DCS interface. For plants using ABB System 800xA, the excitation system appears as a fully integrated function object, with all AVR parameters, alarms, and trends accessible through the unified operator interface. In facilities using third-party DCS platforms, the UNITROL Modbus TCP or PROFIBUS DP gateway module provides the necessary protocol translation. The UNS0121A-Z V1’s parameter set — including voltage setpoint, droop setting, PID gains, and limiter thresholds — is configured and stored in the UNITROL master controller and can be backed up and restored using the CMT software tool.

For plants requiring power system stabilizer (PSS) functionality, the UNITROL platform supports PSS2B and PSS4B stabilizer models implemented in software within the AVR channel. The UNS0121A-Z V1 provides the computational platform for PSS execution, with speed and power inputs derived from the measurement board and the plant’s speed measurement system. This integrated PSS capability eliminates the need for a separate PSS hardware module and simplifies the overall excitation panel layout.

Industrial Application Notes

In large thermal power plants, the 3BHE035301R0410 UNS0121A-Z V1 is typically installed in the excitation control panel located in the generator control room or the unit control building. The excitation panel houses the complete UNITROL rack assembly, the excitation transformer, the thyristor bridge, and the field suppression circuit. The AVR module communicates with the unit control system via hardwired analog and digital signals as well as the fieldbus interface, providing the operators with full visibility and control of the excitation system from the main control room.

In petrochemical and refining facilities, synchronous generators and large synchronous motors share the same medium-voltage bus. The UNS0121A-Z V1’s reactive power regulation capability allows the generator to actively support bus voltage during motor starting events, reducing voltage dip magnitude and duration. This capability is particularly important in facilities where voltage-sensitive process equipment — such as variable frequency drives, analyzers, and control systems — must remain operational during motor starting sequences.

In hydroelectric power stations, the AVR module’s fast response and high regulation accuracy are essential for stable operation during load rejection events, where the generator terminal voltage can rise rapidly as the turbine governor responds to the sudden loss of electrical load. The UNS0121A-Z V1’s ceiling voltage and de-excitation response characteristics are configured during commissioning to meet the specific requirements of the generator and transformer insulation coordination study.

Mining and mineral processing operations with on-site generation benefit from the module’s robust design and wide operating temperature range, which accommodates the harsh electrical environment typical of mining substations. The warranty terms confirmed during quotation provides procurement teams with confidence in the module’s reliability and ensures that replacement support is available throughout the initial operational period.

Product Compatibility FAQ

Q1: Is the 3BHE035301R0410 UNS0121A-Z V1 compatible with both UNITROL 5000 and UNITROL 6800 excitation systems?
The UNS0121A-Z V1 is designed for the UNITROL modular excitation platform. Compatibility with a specific UNITROL generation (5000 or 6800) depends on the rack backplane version and firmware revision of the master controller. Engineers should verify the hardware compatibility matrix in the ABB UNITROL system documentation and confirm the module revision level against the installed rack assembly before ordering. ZYPLC’s technical team can assist with compatibility verification based on your existing system configuration.

Q2: What is the recommended procedure for replacing the UNS0121A-Z V1 in a redundant excitation system without taking the generator offline?
In a dual-channel UNITROL configuration, the standby channel can be activated before the faulty active channel is isolated. Once the standby channel has assumed voltage regulation control, the faulty UNS0121A-Z V1 module can be removed from the rack and replaced with a new unit. The replacement module should be configured with the correct parameter set — downloaded from the UNITROL master controller using the CMT tool — before being placed in service. The entire replacement procedure can typically be completed within 30 to 60 minutes by a qualified excitation engineer, minimizing generator downtime.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for commissioning and long-term maintenance?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental limits. ZYPLC provides pre-shipment functional testing for all excitation modules and can supply test reports upon request. For commissioning support, our technical team is available to assist with parameter configuration, CMT tool setup, and system integration verification. Long-term maintenance support includes spare parts availability, module exchange programs, and technical consultation for excitation system upgrades.
