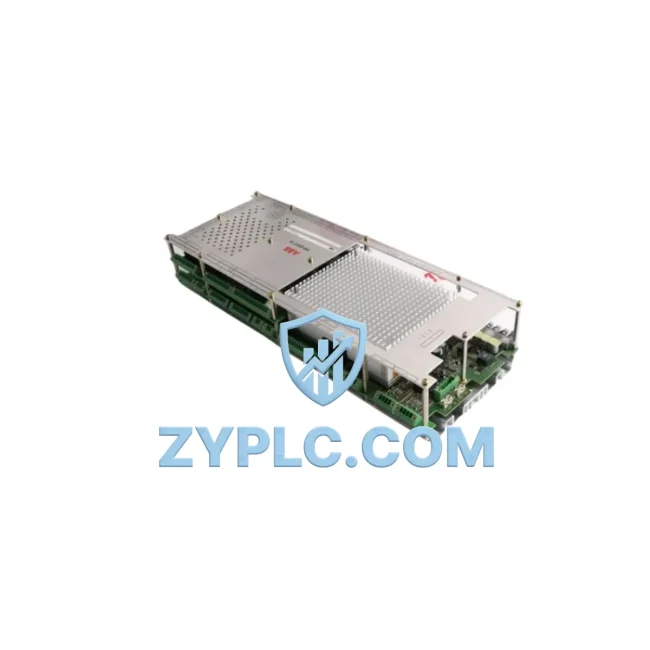

ABB 3BHE036342R0101 Processor Module AC800PEC

ABB 3BHE036342R0101 Processor Module AC800PEC: Replacement and Sourcing Information for Optimized Production Lines

The ABB 3BHE036342R0101 is a high-performance processor module designed for the AC800PEC platform — ABB’s dedicated control system for power electronics and energy-intensive drive applications. In modern manufacturing environments where energy costs represent a significant share of operational expenditure, deploying the right control intelligence at the core of your drive system is not optional — it is foundational. This module delivers the real-time processing power needed to execute precise motor control algorithms, manage energy feedback loops, and coordinate multi-axis drive systems with minimal latency and maximum efficiency.

Unlike general-purpose PLC processors, the 3BHE036342R0101 is purpose-engineered for power electronics control. It handles the high-speed computation demands of pulse-width modulation (PWM) generation, current regulation, and flux vector control — tasks that directly determine how efficiently electrical energy is converted into mechanical motion across your production line.

Product Specification Table

System Compatibility and Application

The 3BHE036342R0101 sits at the center of an industrial automation system. Its role is to serve as the computational brain of the AC800PEC controller, which in turn governs the behavior of ABB’s high-power drive systems. In a typical installation, this processor module communicates with the drive’s IGBT gate driver boards via the PPCS (Power Processor Communication System) fiber-optic link — a high-speed, noise-immune interface that ensures control signals reach the power stage without degradation, even in electrically harsh environments.

On the field side, the AC800PEC platform integrates with ABB RDCO-02 communication adapter modules and RDNA-01 DeviceNet adapters, enabling the processor to exchange real-time data with supervisory SCADA systems or maintenance planning platforms. This bidirectional data flow is essential for implementing demand-response strategies — where the drive system dynamically adjusts motor speed and torque in response to grid signals or production throughput targets, directly reducing peak operating load.

For multi-drive installations, the 3BHE036342R0101 coordinates with ABB APBU-44C branching units and AINT-02 inverter control boards, enabling synchronized operation across parallel drive modules. This synchronization eliminates unplanned downtime caused by drive imbalance — a common source of excess heat generation and reduced motor efficiency in high-power applications such as rolling mills, compressor trains, and large pump stations.

The processor also interfaces with ABB RDIO-01 digital I/O extension modules for capturing real-time feedback from current transformers, temperature sensors, and encoder signals. This sensor data feeds directly into the module’s control algorithms, enabling adaptive maintenance planning: when load demand drops, the processor reduces switching frequency and modulation depth, cutting switching losses in the IGBT stack and extending component service life.

In systems requiring harmonic mitigation and power quality monitoring, the 3BHE036342R0101 works alongside ABB PVD-01 power quality measurement units and external power analyzers to log THD (Total Harmonic Distortion) and power factor data. This information is used to fine-tune the drive’s active front-end (AFE) control, ensuring that energy drawn from the grid is clean and efficient — reducing utility penalty charges and protecting upstream transformer infrastructure.

For applications involving regenerative energy recovery — such as crane hoisting, elevator drives, or test bench systems — the processor module manages the AFE rectifier’s regeneration mode, feeding braking energy back into the DC bus or the grid rather than dissipating it as heat through braking resistors. This capability alone can reduce net operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Maintenance and Replacement Notes

In real production environments, the value of the ABB 3BHE036342R0101 is measured not in specification sheets but in operating-hours saved, unplanned downtime avoided, and production throughput maintained. Consider a continuous casting line in a steel plant: the main drive motors must accelerate, hold speed, and decelerate in precise coordination with the casting speed. Any deviation — caused by sluggish control response or imprecise torque regulation — results in either material defects or unplanned downtime from over-driving the motors. The 3BHE036342R0101’s deterministic real-time execution ensures that speed and torque references are updated every control cycle, keeping the drive operating at its optimal efficiency point on the motor’s torque-speed curve.

In pump and fan applications — which account for a disproportionate share of industrial electricity consumption — the processor enables precise variable-speed control that follows the affinity laws: reducing motor speed by just 20% cuts power consumption by nearly 50%. The 3BHE036342R0101 executes the speed reference calculations and closed-loop PID corrections needed to maintain this operating point continuously, even as process conditions change.

Predictive maintenance is another area where this processor module delivers measurable value. By continuously monitoring motor current signatures, vibration feedback (via encoder data), and thermal trends from the drive’s temperature sensors, the AC800PEC platform can detect early signs of bearing wear, winding insulation degradation, or mechanical imbalance — long before these issues cause a catastrophic failure. Maintenance teams receive advance warning, allowing them to schedule interventions during planned downtime windows rather than responding to emergency breakdowns that halt production for hours or days.

All units supplied by ZYPLC are sourced from verified supply channels, undergo functional testing prior to shipment, and are covered by a 12-month warranty. In-stock availability means lead times are short — critical for facilities that cannot afford extended equipment downtime waiting for factory-new replacements.

Product Sourcing FAQ

Q1: How does the ABB 3BHE036342R0101 contribute to measurable operational stability on the production line?
The 3BHE036342R0101 enables precise real-time motor control through the AC800PEC platform, allowing drives to operate at optimal efficiency points rather than fixed speeds. By executing closed-loop vector control algorithms with sub-millisecond cycle times, it eliminates the unplanned downtime associated with open-loop or imprecise speed regulation. In variable-torque applications such as pumps and fans, this can translate to 20–50% reductions in motor load compared to fixed-speed or contactor-switched operation.

Q2: Is the 3BHE036342R0101 compatible with existing ABB ACS800 and ACS880 drive systems?
Yes. The 3BHE036342R0101 is designed for the AC800PEC control platform, which is the standard controller used in ABB’s high-power ACS800 and ACS880 drive series, as well as in wind converter and traction applications. It communicates with the drive’s power electronics via the PPCS fiber-optic link, ensuring compatibility across the AC800PEC ecosystem. If you are replacing a failed processor module, ensure the firmware version matches your existing system configuration — our technical team can assist with version verification prior to shipment.

Q3: What is the recommended replacement and testing process for this module?
Each 3BHE036342R0101 unit supplied by ZYPLC is functionally tested before dispatch to verify processor operation, communication interface integrity, and firmware boot sequence. Upon receipt, the module should be installed following ABB’s AC800PEC hardware replacement procedure, which includes parameter backup, module swap, and parameter restore. A commissioning test run at reduced load is recommended before returning the drive to full production duty. Our team provides pre-shipment test documentation upon request.

Q4: What warranty coverage is provided, and what does it include?
All ABB 3BHE036342R0101 modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Units that fail within the warranty period are eligible for replacement or repair. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s specified environmental ratings. For warranty claims or technical support, contact us directly at plc.sales@zyplc.com or +86 19859288691.
