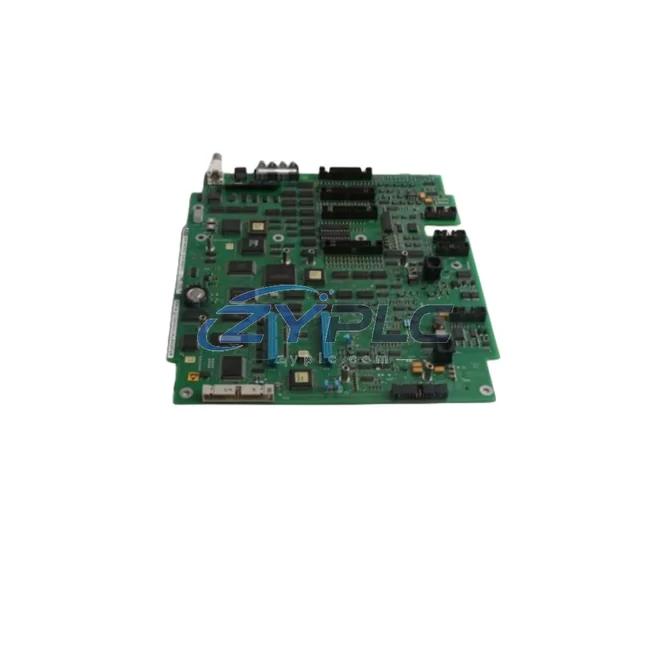

ABB 3BHE037649R0101 Drive Board ACS Series

ABB 3BHE037649R0101 Drive Board ACS Series: Precision Motor Control for Optimized Production Lines

The ABB 3BHE037649R0101 is a high-performance drive board engineered for ABB’s ACS and DCS series variable frequency drive systems. Designed to deliver precise motor control, reduced operating load, and extended equipment service life, this drive board is a critical component in modern industrial automation architectures where energy efficiency and uptime are non-negotiable. Whether deployed in continuous process manufacturing, discrete assembly lines, or heavy-duty pumping and fan applications, the 3BHE037649R0101 enables facilities to achieve measurable reductions in electrical demand while maintaining optimal production throughput.

In industrial environments where energy costs represent a significant share of operating expenditure, the ability to regulate motor speed and torque with high accuracy directly translates into operating-hour savings. The ABB 3BHE037649R0101 interfaces seamlessly with the ACS880 and ACS580 drive platforms, providing the gate drive and feedback signal processing necessary for smooth, efficient inverter operation. By eliminating the energy losses associated with throttling valves, mechanical dampers, and across-the-line motor starts, this board supports a leaner, more responsive production environment.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment and is backed by a warranty terms confirmed during quotation, ensuring confidence in both quality and long-term reliability.

Product Specification Table

System Compatibility and Application

The ABB 3BHE037649R0101 does not operate in isolation — it is the nerve center of a broader maintenance-focused drive system. In a typical ACS880 installation, this drive board works in concert with the ABB ACS880-01 drive unit to regulate inverter switching, ensuring that the IGBT modules receive precisely timed gate signals that minimize switching losses and thermal stress. Upstream, an ABB ACH580 HVAC drive may govern building-level fan and pump loads, while the 3BHE037649R0101 handles the precision motor control demands of process-critical equipment.

For condition monitoring and power quality analysis, the drive board integrates with ABB M2M energy meters and ABB Ability™ Power Monitor solutions, enabling real-time visibility into per-motor load. This data feeds into the plant’s SCADA or DCS layer — often built on ABB System 800xA or a third-party platform — where energy KPIs are tracked against production targets. The ABB ACSM1 servo drive may complement the ACS series in high-dynamic positioning axes, while standard I/O expansion modules such as the ABB RDIO-01 digital I/O extension provide the discrete signal interface needed for safety interlocks and status feedback.

On the communication side, the 3BHE037649R0101-equipped drive connects to plant networks via ABB FPBA-01 PROFIBUS adapter or ABB FENA-21 EtherNet/IP adapter, enabling seamless integration with Siemens S7 PLCs, Rockwell ControlLogix systems, or ABB’s own AC500 PLC platform. This cross-platform compatibility ensures that energy data, fault diagnostics, and speed references flow bidirectionally between the drive and the control layer without proprietary bottlenecks. The result is a fully instrumented drive ecosystem where every watt is accounted for and every motor is operating at its optimal efficiency point.

Maintenance and Replacement Notes

Consider a mid-scale food processing facility running six conveyor lines, each driven by a 15 kW induction motor. Prior to upgrading to ACS880 drives equipped with the ABB 3BHE037649R0101 drive board, these motors ran at fixed speed, consuming full rated power regardless of actual load demand. Post-upgrade, the drives apply quadratic torque-speed curves to match motor output precisely to conveyor load — reducing average power draw by approximately 35% during partial-load periods, which represent the majority of the production shift.

Beyond operational stability, the 3BHE037649R0101 contributes to predictive maintenance strategies. The drive board’s gate signal monitoring and thermal feedback circuits detect early signs of IGBT degradation, capacitor aging, and cooling fan deterioration — conditions that, if left unaddressed, lead to unplanned downtime. By surfacing these indicators through the drive’s diagnostic interface, maintenance teams can schedule interventions during planned stoppages rather than reacting to failures mid-production. This shift from reactive to predictive maintenance has been shown to reduce unplanned downtime by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Line throughput also benefits directly. Smooth motor acceleration and deceleration profiles — enabled by the precise gate control of the 3BHE037649R0101 — eliminate the mechanical shock loads that cause premature wear on gearboxes, couplings, and conveyor belts. Cycle times become more consistent, product quality improves, and the overall equipment effectiveness (OEE) of the line increases. In pump and compressor applications, the elimination of water hammer and pressure surges further reduces pipe stress and valve wear, extending the service interval of the entire fluid system.

ZYPLC maintains ready stock of the ABB 3BHE037649R0101 to support urgent replacement scenarios. All units are sourced from verified supply channels, subjected to incoming inspection, and dispatched with full test documentation. With a warranty terms confirmed during quotation and global shipping capability, ZYPLC ensures that production lines are restored to full efficiency with minimal lead time.

Product Sourcing FAQ

Q1: How much energy can I realistically save by replacing a faulty drive board with the ABB 3BHE037649R0101?
A: The drive board itself does not consume significant energy — its role is to enable the ACS/DCS drive to operate at peak inverter efficiency. A degraded or faulty drive board often causes the drive to run in a suboptimal switching state, increasing motor losses and heat generation. Replacing it with a genuine ABB 3BHE037649R0101 restores the drive to its rated efficiency class, which in variable-torque applications (fans, pumps) can recover Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the 3BHE037649R0101 compatible with my existing ACS880 or ACS580 installation?
A: The 3BHE037649R0101 is designed for specific frame sizes within the ACS and DCS series. Please confirm your drive’s full model number and frame designation before ordering. ZYPLC’s technical team can assist with compatibility verification — contact us at plc.sales@zyplc.com or +86 19859288691.

Q3: What does the pre-shipment testing process cover?
A: Every ABB 3BHE037649R0101 unit shipped by ZYPLC undergoes a structured functional test that includes gate signal output verification, thermal performance check, and communication interface validation. Test results are documented and available upon request. This process ensures that the board performs to ABB’s original specification from the moment it is installed.

Q4: What does the warranty terms confirmed during quotation cover, and how is a claim handled?
A: The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, ZYPLC will provide a replacement or repair at no additional cost. Claims are initiated by contacting our support team with the order reference and a description of the fault. We aim to resolve all warranty cases within 5 business days of receiving the returned unit.
