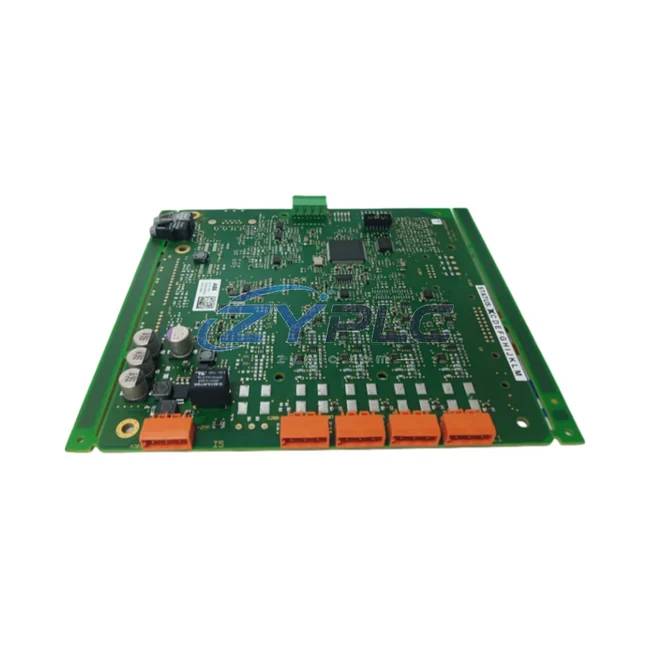

ABB 3BHE037864R0108 UNF911 B108 Excitation Control for UNITROL

ABB 3BHE037864R0108 UNF911 B108 Excitation Control for UNITROL

The ABB 3BHE037864R0108 UNF911 B108 is a precision-engineered excitation control module designed to operate as a core functional component within ABB’s UNITROL excitation system architecture. Rather than functioning as a standalone device, this module is purpose-built to integrate seamlessly into layered generator control platforms where voltage regulation, reactive power management, and system-level redundancy are critical operational requirements. In power generation facilities, industrial plants, and utility-grade installations, the 3BHE037864R0108 UNF911 B108 serves as the excitation intelligence layer — coordinating signal flow between the generator field winding, the automatic voltage regulator (AVR) logic, and the supervisory control network above it.

Within a complete UNITROL control architecture, this module interfaces directly with companion components such as the UNS0881b power interface board, the PPD113 pulse power device, and the UNITROL 6800 or UNITROL 1000 AVR platform. Its role in the excitation chain is to process reference voltage signals, compare them against measured terminal voltage feedback, and issue corrective field current commands with high-speed precision. This closed-loop excitation control function is fundamental to maintaining generator stability under dynamic load conditions, grid disturbances, and reactive power swings.

From a system architecture perspective, the 3BHE037864R0108 UNF911 B108 occupies the control layer between the human-machine interface (HMI) and the power conversion layer. Operators interfacing through an ABB Panel 800 or Symphony Plus DCS can issue setpoint adjustments that flow through the excitation control module before being translated into field current commands. This hierarchical signal path ensures that all excitation responses are governed by coordinated logic rather than isolated hardware reactions, which is essential in multi-generator bus configurations and grid-parallel operation scenarios.

Redundancy is a key design consideration in any high-availability excitation system. The 3BHE037864R0108 UNF911 B108 supports hot-standby redundancy configurations when paired with a secondary UNITROL excitation channel. In such architectures, the module continuously monitors system health parameters and enables bumpless transfer to the backup excitation path in the event of a primary channel fault. This capability is particularly valued in power plants, offshore platforms, and critical infrastructure facilities where unplanned generator trips carry significant operational and financial consequences.

The module’s communication capability allows it to exchange status data, alarm signals, and control references with higher-level systems via standard industrial protocols supported within the UNITROL platform. This connectivity ensures that the excitation control layer remains visible and manageable from the plant’s SCADA or DCS environment, enabling remote diagnostics, trend logging, and predictive maintenance scheduling without requiring physical access to the excitation cabinet.

Installation of the 3BHE037864R0108 UNF911 B108 follows ABB’s standard UNITROL module insertion procedure, with the board mounting into the designated slot within the UNITROL excitation cubicle backplane. Commissioning engineers typically configure the module parameters using ABB’s UNITROL commissioning software, setting voltage regulation gains, reactive power droop characteristics, and protection thresholds in alignment with the generator’s nameplate data and grid connection requirements. The module’s parameter set can be saved and restored, simplifying replacement procedures and reducing commissioning time during maintenance cycles.

For long-term maintenance planning, the availability of the 3BHE037864R0108 UNF911 B108 as a stocked spare part is a critical consideration. Excitation system failures that result from unavailable spare modules can lead to extended generator outages, making proactive inventory management essential. Our supply chain maintains availability subject to RFQ confirmation of this module alongside related components including the UNS0881b interface board, SDCS-CON-4 control boards used in adjacent DC drive architectures, and HIEE300936R1 gate driver modules, ensuring that customers can source complete excitation system spares from a single reliable supplier.

Product Specification Table

System Compatibility Notes

The 3BHE037864R0108 UNF911 B108 does not operate in isolation — its value is realized through coordinated interaction with the full suite of UNITROL excitation system components. In a typical generator excitation architecture, the module works in concert with the UNS0881b power interface board, which manages the thyristor firing signals that control field current magnitude. The PPD113 pulse power device provides the gate pulse amplification necessary to drive the thyristor bridge, while the UNITROL 6800 AVR platform provides the overarching voltage regulation logic that the UNF911 B108 executes at the module level.

At the supervisory layer, an ABB Panel 800 series HMI or a Symphony Plus DCS workstation provides the operator interface through which excitation setpoints, power factor targets, and alarm acknowledgments are managed. These commands flow downward through the control hierarchy to the 3BHE037864R0108 UNF911 B108, which translates them into precise field current references. In parallel, the module exchanges status signals with protection relays and synchronization equipment, ensuring that excitation responses are coordinated with generator protection schemes.

For installations requiring communication gateway functionality, the UNITROL platform supports integration with Modbus TCP or PROFIBUS DP networks, allowing the excitation control data managed by the UNF911 B108 to be visible across the plant automation network. Terminal modules and marshalling panels within the excitation cubicle provide the physical I/O termination points that connect field wiring to the module’s signal inputs, completing the hardware integration chain from generator terminals to control room displays.

Industrial Application Notes

The ABB 3BHE037864R0108 UNF911 B108 finds application across a broad range of industries where generator excitation control is a critical operational function. In thermal and hydroelectric power generation facilities, the module maintains terminal voltage stability during load changes and grid disturbances, supporting reactive power dispatch requirements set by grid operators. In industrial cogeneration plants serving manufacturing or petrochemical facilities, the module enables precise power factor control that reduces reactive power penalties and improves overall energy efficiency.

Offshore oil and gas platforms rely on excitation control modules of this type to maintain generator voltage stability in isolated power systems where grid support is unavailable. The module’s redundancy capabilities are particularly valuable in these environments, where a generator trip can have immediate safety and production consequences. In mining operations with large variable-speed drives and hoisting equipment, the excitation control system managed by the UNF911 B108 helps stabilize bus voltage against the rapid load fluctuations characteristic of these applications.

Water treatment and pumping stations that operate large motor-driven pumps benefit from stable excitation control during motor starting sequences, where reactive power demand spikes can cause voltage depression across the facility bus. The 3BHE037864R0108 UNF911 B108 supports the fast excitation response needed to maintain voltage within acceptable limits during these transient events, protecting sensitive instrumentation and control equipment connected to the same bus.

Product Compatibility FAQ

Q1: Is the 3BHE037864R0108 UNF911 B108 compatible with both UNITROL 6800 and UNITROL 1000 excitation platforms?
The UNF911 B108 module is designed for use within the UNITROL excitation system family. Compatibility with specific UNITROL platform variants should be confirmed against the system’s hardware configuration documentation and the module’s revision level. Our technical team can assist in verifying compatibility based on your existing UNITROL system configuration prior to procurement.

Q2: Can this module be replaced in the field without full system shutdown, and what commissioning steps are required after replacement?
Module replacement procedures depend on the excitation system’s redundancy configuration. In dual-channel redundant systems, it may be possible to replace the module while the standby channel maintains excitation. Following replacement, the module parameters must be restored using ABB’s UNITROL commissioning software, and functional verification tests including voltage regulation response and protection relay coordination checks should be performed before returning the generator to service.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term spare parts planning?
Our warranty terms confirmed during quotation covers the 3BHE037864R0108 UNF911 B108 against manufacturing defects and functional failures under normal operating conditions. We also support long-term spare parts planning by maintaining stock of related UNITROL excitation components, enabling customers to source complete excitation system spare kits. Contact our technical sales team to discuss multi-year supply agreements and priority stock reservation for critical spare modules.
