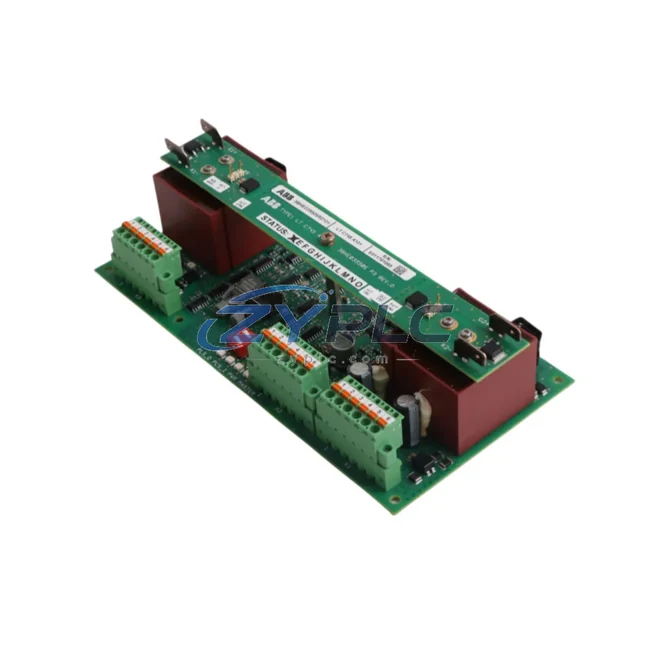

ABB 3BHE039905R0101 LTC745A101 Crowbar Protection for LTC745

ABB 3BHE039905R0101 LTC745A101 Crowbar Protection for LTC745

The ABB 3BHE039905R0101 LTC745A101 is a precision-engineered crowbar circuit board designed for deployment within ABB’s LTC745 series excitation control systems. In modern industrial power generation and drive architectures, excitation system integrity is foundational to generator stability, voltage regulation, and fault-tolerant operation. This crowbar protection module occupies a critical position in the protection layer of the control hierarchy, acting as the last line of defense against overvoltage transients that could otherwise propagate through the field winding circuit and compromise the entire generator control loop.

Within a fully integrated ABB excitation system architecture, the 3BHE039905R0101 LTC745A101 does not operate in isolation. It functions as a coordinated component within a layered automation framework that spans the control layer, power conversion layer, signal conditioning layer, and protection layer. Its role is to detect abnormal voltage conditions across the field circuit and trigger a controlled short-circuit response — clamping the overvoltage event before it can damage the thyristor bridge, the field winding, or the upstream power supply modules. This rapid response capability is essential in high-availability systems where unplanned downtime carries significant operational and financial consequences.

System engineers integrating this board into an LTC745-based excitation platform will find it fully compatible with the broader ABB UNITROL and LTC series ecosystem. The board interfaces directly with the thyristor firing control circuitry and works in coordination with components such as the ABB LTC745A001 regulator board, the LTC711 pulse transformer module, and the 3BHE022294R0101 field current measurement card. Together, these modules form a tightly coupled protection and regulation architecture that ensures stable excitation current delivery under both steady-state and transient operating conditions.

From a system architecture perspective, the crowbar circuit board sits between the AC/DC power conversion stage and the field winding output. When the thyristor bridge — typically a six-pulse or twelve-pulse configuration — produces an overvoltage spike due to load rejection, commutation failure, or control loop instability, the 3BHE039905R0101 LTC745A101 responds within microseconds. This response time is critical in synchronous generator applications where field current collapse or overvoltage can trigger protective relay trips, leading to unit disconnection from the grid. By absorbing the transient energy through the crowbar path, the board preserves system continuity and protects downstream components including the 3BHE009681R0101 excitation transformer interface and the ABB SDCS-CON-4 control board used in companion drive systems.

For facilities operating redundant excitation configurations — common in power plant, petrochemical, and heavy industrial environments — the 3BHE039905R0101 LTC745A101 supports hot-standby architectures where a secondary excitation channel remains ready to assume control in the event of a primary channel fault. In these configurations, the crowbar board must be matched precisely to the active channel’s thyristor rating and field circuit impedance to ensure symmetric protection behavior across both channels. Mismatched crowbar thresholds in redundant systems can lead to asymmetric fault responses, which may cause nuisance trips or, worse, allow overvoltage conditions to persist long enough to cause insulation damage.

Maintenance engineers will appreciate the board’s modular form factor, which allows for rapid replacement without requiring full system shutdown in facilities with proper isolation procedures. The board’s connector layout is consistent with the LTC745 rack backplane standard, ensuring mechanical and electrical compatibility with existing installations. Spare board availability is a key consideration in long-term maintenance planning, and ZYPLC maintains availability subject to RFQ confirmation of the 3BHE039905R0101 LTC745A101 to support both scheduled maintenance cycles and emergency replacement scenarios. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, providing assurance of functional integrity from the date of commissioning.

In terms of system commissioning, the crowbar board requires calibration of its trigger threshold voltage to match the specific field circuit parameters of the generator being controlled. This calibration is typically performed in conjunction with the LTC745 regulator card settings and the thyristor bridge firing angle limits. Proper threshold setting ensures that the crowbar activates only under genuine overvoltage conditions and does not interfere with normal field forcing operations during motor starting or reactive power compensation events. Documentation of the calibration parameters should be retained as part of the site’s maintenance records to facilitate future board replacements without requiring full recommissioning of the excitation system.

Product Specification Table

System Compatibility Notes

The 3BHE039905R0101 LTC745A101 achieves its full protective value only when integrated within a properly configured LTC745 excitation system architecture. A complete system deployment typically includes the ABB LTC745A001 automatic voltage regulator board, which governs the closed-loop voltage regulation function and provides the reference signal against which field current is controlled. The LTC711 pulse transformer module conditions the firing pulses delivered to the thyristor bridge, ensuring precise phase control across all six or twelve thyristor elements. The 3BHE022294R0101 field current measurement card provides real-time feedback of field current magnitude, enabling the regulator to maintain accurate current control under varying load conditions.

On the power supply side, the excitation system relies on dedicated auxiliary power modules — such as the ABB 3BHE004573R0001 power supply board — to deliver stable low-voltage DC rails to the control electronics. These rails must remain within specification even during grid disturbances, as control power interruption during a fault event could prevent the crowbar from triggering correctly. The 3BHE009681R0101 excitation transformer interface board manages the AC input conditioning from the excitation transformer secondary, providing the raw AC supply that feeds the thyristor bridge.

For systems requiring communication with a plant-level DCS or SCADA platform, the ABB SDCS-COM-8 communication board or equivalent fieldbus gateway provides the interface between the excitation controller and the supervisory network. This integration allows operators to monitor excitation system status, field current levels, and protection event logs from a central control room HMI — typically an ABB CP600 series operator panel or equivalent industrial touchscreen. The crowbar event log, captured by the LTC745 controller, can be transmitted via PROFIBUS, Modbus RTU, or IEC 61850 depending on the communication module installed.

Terminal modules and marshalling components — including ABB XTIO I/O terminal blocks and shielded signal cables — complete the wiring infrastructure that connects the crowbar board’s status outputs to the plant protection relay system. These outputs typically interface with the generator protection relay (such as an ABB REG670 generator protection IED) to coordinate crowbar activation with upstream protection tripping logic, ensuring that a crowbar event triggers the appropriate generator circuit breaker response without causing nuisance trips under recoverable transient conditions.

Industrial Application Notes

The ABB 3BHE039905R0101 LTC745A101 crowbar circuit board finds application across a wide range of heavy industrial sectors where synchronous generators and large AC drives require robust excitation system protection.

In thermal and hydroelectric power generation, excitation system reliability is directly linked to grid stability. A crowbar board failure in a power plant excitation system can lead to generator field collapse, loss of reactive power support, and potential grid voltage instability. The LTC745A101 provides the overvoltage protection margin required to ride through transient fault conditions without tripping the unit offline, supporting high-availability generation commitments.

In petrochemical and refinery applications, large synchronous motors driving compressors and pumps rely on excitation systems to maintain power factor and motor stability. Overvoltage events in these environments — often caused by sudden load shedding or process upsets — can damage motor field windings if not clamped rapidly. The crowbar board’s fast response characteristic makes it well-suited to these demanding process environments.

In mining and metallurgical operations, where large winding motors and synchronous drives are common, the LTC745A101 supports excitation system integrity across variable load cycles. The board’s compatibility with redundant excitation architectures is particularly valuable in continuous process operations where planned maintenance windows are limited and unplanned downtime carries high production cost penalties.

In water treatment and pumping stations, excitation system protection boards must operate reliably across extended service intervals with minimal maintenance intervention. The modular design of the LTC745A101 supports rapid board-level replacement during scheduled maintenance, minimizing system downtime and reducing the skill level required for field service operations.

Product Compatibility FAQ

Q1: Is the ABB 3BHE039905R0101 LTC745A101 compatible with both new and legacy LTC745 excitation system installations?
Yes. The 3BHE039905R0101 LTC745A101 is designed to the LTC745 rack backplane standard and is mechanically and electrically compatible with both current-production and legacy LTC745 excitation system installations. When replacing a board in an existing installation, engineers should verify the crowbar trigger threshold calibration against the site-specific field circuit parameters documented during original commissioning. ZYPLC can provide technical support to assist with compatibility verification prior to procurement.

Q2: What commissioning steps are required after installing the 3BHE039905R0101 LTC745A101 in an operating excitation system?
Following board installation, the crowbar trigger threshold must be calibrated to match the field circuit overvoltage limit defined in the generator’s excitation system design documentation. This calibration is performed with the excitation system energized but the generator offline, using the LTC745 regulator’s built-in test functions to verify crowbar activation at the correct voltage level. The calibration result should be recorded in the site maintenance log. All units supplied by ZYPLC under the warranty terms confirmed during quotation are pre-tested to confirm baseline functionality prior to shipment, reducing on-site commissioning risk.

Q3: How does the warranty terms confirmed during quotation apply to the ABB 3BHE039905R0101 LTC745A101, and what does it cover?
All ABB 3BHE039905R0101 LTC745A101 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of commissioning or delivery, whichever is earlier. The warranty covers functional defects identified under normal operating conditions consistent with the board’s design specification. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or physical mishandling. In the event of a warranty claim, ZYPLC will arrange for board replacement or repair in coordination with the customer’s maintenance schedule to minimize system downtime.
