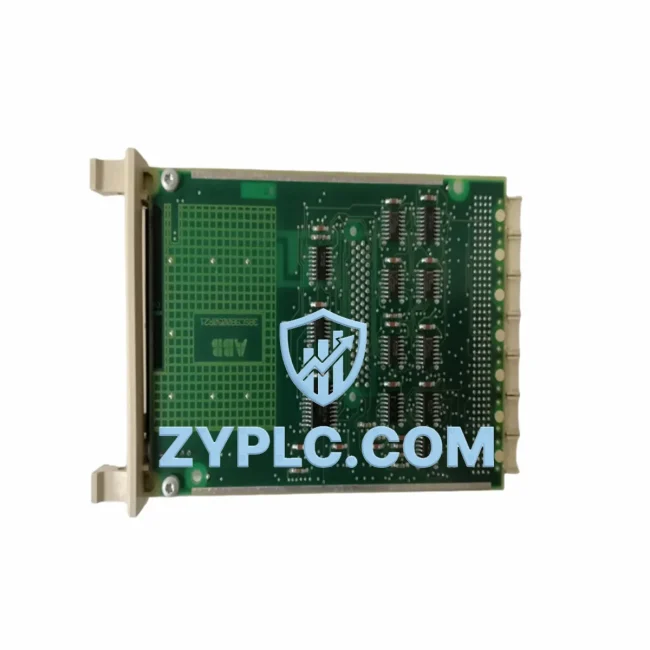

ABB 3BSE002540R1 Industrial Network Interface for AC500 Systems

ABB 3BSE002540R1 Industrial Network Interface for AC500 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The ABB MB510 3BSE002540R1 Profibus DP Communication Gateway is engineered to serve as a critical node in this industrial data chain — connecting AC500 PLC controllers to Profibus DP networks with deterministic, low-latency communication. Whether your plant runs discrete manufacturing, process automation, or hybrid production lines, the MB510 delivers the protocol bridging, network stability, and real-time data transparency that Industry 4.0 demands.

From signal acquisition at the sensor level through to SCADA dashboards and MES reporting layers, the MB510 3BSE002540R1 ensures that every byte of process data travels reliably across your automation architecture. Its role is not simply that of a passive interface — it actively manages Profibus DP master/slave communication cycles, synchronizes data exchange with the AC500 CPU backplane, and provides the network gateway function that eliminates data silos between legacy fieldbus devices and modern Ethernet-based control systems.

Network Communication Table

Connected Automation Data Flow

The MB510 3BSE002540R1 sits at the intersection of field-level instrumentation and plant-wide control networks. In a typical AC500-based automation cell, the ABB PM573 or PM583 CPU module serves as the central processing unit, executing ladder logic and function block programs while the MB510 handles all Profibus DP master communication cycles independently — offloading network management from the CPU and ensuring deterministic scan times even under heavy I/O loads.

On the field side, the MB510 communicates directly with Profibus DP slave devices such as ABB DC532 digital I/O modules and distributed remote I/O racks, collecting digital and analog signals from proximity sensors, pressure transmitters, flow meters, and temperature probes. These signals are mapped into the AC500 process image in real time, making them immediately available to the CPU for control logic execution and to the ABB CI501-PNIO or CI502-PNIO PROFINET communication interface modules for upstream Ethernet transmission.

For drive integration, the MB510 enables direct Profibus DP connectivity to ABB ACS880 industrial drives, allowing the AC500 PLC to issue speed references, torque commands, and read back actual drive status — fault codes, output frequency, motor current — without additional protocol converters. This tight drive-to-controller integration is essential in conveyor systems, pump stations, compressor control, and multi-axis motion applications where response time directly impacts product quality.

At the HMI and SCADA layer, data collected through the MB510 is made available to ABB Panel 800 HMI terminals via the AC500 CPU’s Ethernet port, enabling operators to visualize real-time process values, acknowledge alarms, and adjust setpoints from the plant floor. For enterprise-level integration, the ABB CI592-CS31 communication module can extend the AC500 network to CS31 remote I/O buses, while the ABB Ability Symphony Plus DCS platform can consume process data from the AC500 via OPC-UA or Modbus TCP gateways — creating a unified data fabric from sensor to cloud.

Remote diagnostics are handled through the AC500’s built-in web server and the MB510’s Profibus DP diagnostic telegram support (DP-V1), allowing maintenance engineers to interrogate slave device status, identify communication faults, and perform parameter reads/writes remotely — reducing unplanned downtime and eliminating the need for on-site intervention for routine diagnostics.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy Profibus DP devices that cannot communicate natively with modern Ethernet-based control systems, creating data islands that prevent plant-wide visibility and remote monitoring. The MB510 3BSE002540R1 directly addresses this by acting as a transparent Profibus DP master gateway within the AC500 ecosystem, bridging the gap between installed fieldbus infrastructure and contemporary SCADA, MES, and cloud analytics platforms.

Plants that previously relied on standalone Profibus masters with proprietary configuration tools can now integrate their entire Profibus DP device network — drives, remote I/O, valve positioners, weighing systems — into a single AC500-managed control architecture. This consolidation eliminates redundant hardware, simplifies network topology, and provides a single point of configuration and diagnostics through ABB’s Automation Builder engineering software.

For production line transparency, the MB510 enables real-time OEE (Overall Equipment Effectiveness) data collection by ensuring that every Profibus DP slave device — from a simple digital I/O module to a complex drive or intelligent sensor — reports its status continuously to the AC500 CPU, which in turn feeds SCADA systems with the granular data needed for production reporting, predictive maintenance scheduling, and energy management. System expansion is straightforward: additional Profibus DP slaves can be added to the network up to the 125-node limit without hardware changes to the MB510, and the AC500’s modular I/O architecture allows seamless addition of ABB TU515 or TU516 terminal units as production capacity grows.

Every MB510 3BSE002540R1 unit supplied by ZYPLC undergoes functional communication testing prior to dispatch, verifying Profibus DP master initialization, slave polling cycles, and data integrity under load. A 12-month warranty covers all units, with technical support available for integration and commissioning queries.

Industrial Connectivity FAQ

Q1: What is the maximum Profibus DP transmission speed supported by the MB510 3BSE002540R1?
The MB510 supports Profibus DP baud rates from 9.6 kbps up to 12 Mbps, with automatic baud rate detection. For most industrial applications with cable runs under 100 metres, 1.5 Mbps or 12 Mbps is recommended to minimize cycle time and maximize real-time data responsiveness.

Q2: Is the MB510 compatible with all AC500 CPU variants?
The MB510 is designed for the ABB AC500 S500 I/O system and is compatible with AC500 CPUs including the PM573, PM583, and PM595 series. It occupies one slot on the AC500 local or expansion bus and is configured via ABB Automation Builder (formerly Control Builder Plus). Compatibility with specific firmware versions should be verified against the ABB AC500 system compatibility matrix.

Q3: Can the MB510 operate as both Profibus DP master and slave simultaneously?
The MB510 3BSE002540R1 is configured as a Profibus DP master module within the AC500 system. It manages the DP master communication cycle and polls all configured slave devices. For applications requiring the AC500 to appear as a Profibus DP slave to a third-party master controller, ABB offers alternative communication modules such as the CI590-CS31-HA for specific network topologies.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the MB510?
All MB510 3BSE002540R1 units are covered by a 12-month warranty from the date of dispatch. Prior to shipment, each unit undergoes functional communication testing to verify Profibus DP master initialization, cyclic data exchange, and diagnostic response. Units are shipped with original packaging where available. For volume orders or urgent requirements, please contact our technical sales team directly.
