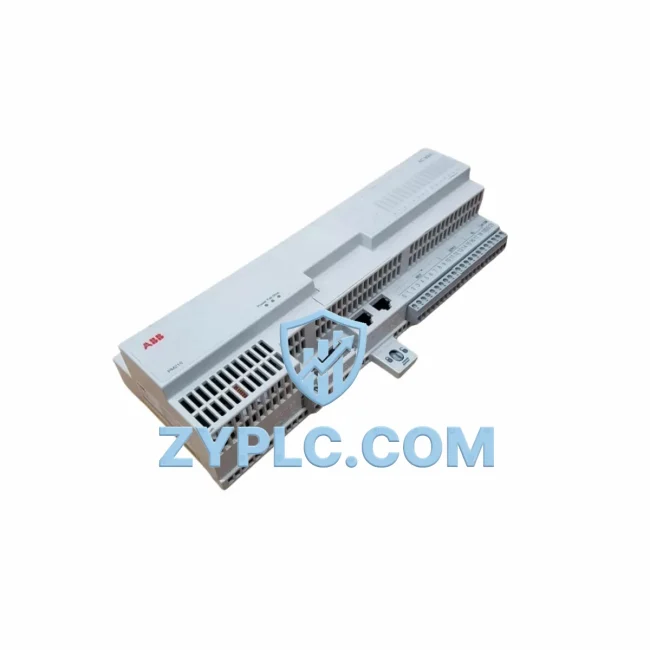

ABB 3BSE021386R2 PM210 Compact Controller | AC 800C Series

ABB 3BSE021386R2 PM210: Industrial Data Link for AC 800C Smart Factory Networks

The ABB 3BSE021386R2 PM210 Compact Controller is a high-performance processing module engineered for the AC 800C distributed control platform. Designed to serve as the intelligence hub of industrial automation networks, the PM210 bridges field-level devices — sensors, actuators, remote I/O, and variable frequency drives — with supervisory SCADA and HMI systems, enabling seamless, real-time data flow across the entire production environment. Whether deployed in process industries, power generation, oil & gas, or discrete manufacturing, the 3BSE021386R2 delivers the communication reliability and processing throughput that modern smart factories demand.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB 3BSE021386R2 PM210 sits at the center of a layered communication architecture. At the field level, it communicates directly with distributed I/O modules such as the ABB S800 I/O series — including AI810, AO810, DI810, and DO810 modules — collecting analog and digital signals from pressure transmitters, flow meters, temperature sensors, and proximity switches. These signals are processed locally within the PM210’s deterministic scan cycle before being forwarded upstream.

On the fieldbus layer, the PM210 interfaces with PROFIBUS DP networks, enabling it to communicate with intelligent field devices such as ABB ACS880 variable frequency drives and ACS580 drives, retrieving real-time speed, torque, and fault status data. This drive-level data is critical for predictive maintenance workflows and energy optimization routines managed at the SCADA layer.

For supervisory integration, the PM210 connects via Industrial Ethernet to ABB System 800xA — the distributed control and SCADA platform — where operators monitor process variables, configure alarm thresholds, and execute remote control commands. The OPC UA communication stack embedded in the AC 800C platform ensures that data from the PM210 is accessible to MES and ERP systems without protocol conversion bottlenecks.

In multi-controller architectures, the 3BSE021386R2 operates alongside ABB PM861A and PM864A controller modules, sharing process data across controller domains via the MMS (Manufacturing Message Specification) protocol layer. This peer-to-peer communication model eliminates data silos between production zones and enables plant-wide transparency.

At the HMI layer, operator panels running ABB CP600 series HMI terminals connect to the PM210 via Modbus TCP/IP or OPC DA, providing operators with live process visualization, trend graphs, and alarm management screens. Remote diagnostic access is supported through the Ethernet port, allowing engineering teams to perform firmware updates, configuration changes, and fault analysis without physical site visits — a key requirement for geographically distributed industrial facilities.

Edge computing gateways, such as the ABB Edge Controller EC2200, can aggregate data from multiple PM210 controllers and push structured datasets to cloud analytics platforms, enabling AI-driven process optimization and digital twin applications. This positions the 3BSE021386R2 not merely as a legacy PLC module, but as a foundational node in Industry 4.0 architectures.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy serial devices running Modbus RTU cannot natively communicate with modern Ethernet-based SCADA systems, and PROFIBUS field devices are often invisible to OPC UA-based MES platforms. The ABB 3BSE021386R2 PM210 addresses this directly through its multi-protocol communication architecture, acting as a protocol gateway that normalizes data from heterogeneous field devices into a unified data model accessible to supervisory systems.

Data isolation — where production data is trapped within individual machine controllers and never reaches the plant historian or SCADA server — is eliminated by the PM210’s cyclic data publishing capability. Process variables are continuously written to the System 800xA data server, ensuring that every sensor reading, drive status, and alarm event is logged, timestamped, and available for trend analysis and regulatory reporting.

Remote monitoring is another area where the PM210 delivers measurable value. Rather than requiring on-site engineers to diagnose faults, the Ethernet-connected PM210 supports remote access via standard engineering tools, reducing mean time to repair (MTTR) and minimizing unplanned downtime. For multi-site operations, this capability translates directly into reduced travel costs and faster incident response.

Production line transparency — the ability to see real-time OEE (Overall Equipment Effectiveness) metrics, batch traceability data, and energy consumption figures — is achieved by connecting the PM210’s data outputs to MES dashboards. System expansion is equally straightforward: additional S800 I/O modules can be added to the fieldbus without reconfiguring the controller, and new PROFIBUS devices are auto-detected during network initialization, supporting phased capacity expansion without production interruption.

Every ABB 3BSE021386R2 PM210 unit supplied by ZYPLC undergoes functional communication testing prior to shipment, verifying protocol handshake, I/O scan integrity, and Ethernet connectivity. Units are held in climate-controlled inventory and ship with a 12-month warranty, backed by our technical support team reachable at +86 19859288691 or plc.sales@zyplc.com.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3BSE021386R2 PM210 support?
The PM210 supports PROFIBUS DP, Modbus RTU, Modbus TCP/IP, IEC 61850, and OPC UA, making it compatible with a wide range of field devices, drives, remote I/O modules, and SCADA platforms. Its multi-protocol capability eliminates the need for external protocol converters in most AC 800C deployments.

Q2: Is the 3BSE021386R2 compatible with ABB System 800xA SCADA?
Yes. The PM210 is a native component of the AC 800C platform, which is fully integrated with ABB System 800xA. It communicates with the 800xA data server via OPC DA/UA and MMS, enabling real-time process visualization, alarm management, historian logging, and remote control from the 800xA operator workplace.

Q3: How does the PM210 ensure network stability in high-noise industrial environments?
The 3BSE021386R2 is designed to IEC 61131-3 standards with EMC-hardened communication interfaces. Its deterministic scan cycle ensures consistent data delivery even under electrical noise conditions typical of motor drive environments. PROFIBUS DP communication includes built-in error detection and retry mechanisms, and the Ethernet port supports full-duplex operation with auto-negotiation for reliable network connectivity.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the ABB 3BSE021386R2?
All units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and communication failures. Each module undergoes pre-shipment functional testing including protocol communication verification, I/O scan cycle validation, and Ethernet port integrity checks. Units are shipped in anti-static packaging with full traceability documentation. For RFQ and technical inquiries, contact us at +86 19859288691 or plc.sales@zyplc.com.
