ABB 3BSE042236R1 HMI Module for Panel 800

ABB 3BSE042236R1 HMI Module for Panel 800

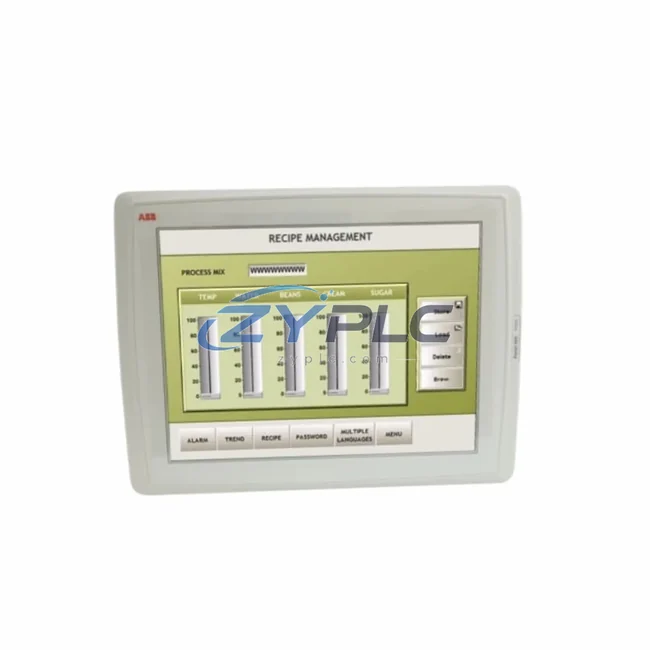

The ABB 3BSE042236R1 is a purpose-engineered operator interface module designed for seamless integration within the ABB Panel 800 series control architecture. Rather than functioning as a standalone display unit, this module is conceived as a critical node within a layered automation hierarchy — bridging the human-machine interface (HMI) layer with the underlying control, I/O, and communication infrastructure that defines modern industrial process systems. Whether deployed in continuous manufacturing, power distribution, water treatment, or petrochemical processing, the 3BSE042236R1 delivers the system integration and system-level coherence that demanding industrial environments require.

In a fully realized ABB control architecture, the 3BSE042236R1 occupies the HMI layer, receiving real-time process data from ABB AC 800M controllers via the control network and presenting it to operators in a structured, actionable format. Its role is not merely to display values — it actively participates in the signal flow from field instruments through I/O modules, up through the controller layer, and into the visualization plane. This architecture ensures that operators have accurate, low-latency visibility into process states, alarm conditions, and system diagnostics without requiring additional middleware or protocol conversion.

The module’s design philosophy aligns with ABB’s commitment to system consistency across the Panel 800 platform. Engineers integrating this unit into an existing Panel 800 cabinet benefit from standardized mounting dimensions, compatible communication interfaces, and a shared configuration environment with other Panel 800 components. This reduces commissioning time, minimizes wiring complexity, and ensures that the HMI layer remains fully synchronized with the control layer throughout the system lifecycle. Long-term maintenance is simplified because spare parts, firmware updates, and technical documentation are unified across the Panel 800 ecosystem.

From a redundancy and availability standpoint, the 3BSE042236R1 supports architectures where operator visibility must be maintained even during partial system faults. In high-availability installations — such as power generation control rooms or continuous chemical process lines — the HMI layer must remain operational independently of controller redundancy switchovers. The 3BSE042236R1’s communication design accommodates these requirements, ensuring that operator stations remain connected and responsive during controller failover events managed by redundant AC 800M CPU modules.

System scalability is another core advantage. As production lines expand or process complexity increases, additional I/O modules, communication gateways, and controller nodes can be added to the architecture without requiring HMI replacement. The 3BSE042236R1 is designed to accommodate growing tag counts, additional alarm groups, and expanded trend logging as the system evolves. This forward compatibility protects the capital investment in the HMI layer and reduces the total cost of ownership over the system’s operational life.

All units supplied by ZYPLC are fully tested, verified against ABB factory specifications, and covered by a warranty terms confirmed during quotation. Global inventory availability ensures rapid deployment for both new installations and emergency replacement scenarios.

Product Specification Table

System Compatibility Notes

The 3BSE042236R1 achieves its full operational value when deployed within a coordinated ABB control system architecture. At the controller layer, ABB AC 800M PM866 or PM891 CPU modules serve as the primary processing nodes, executing control logic and managing data exchange with the HMI layer. These controllers communicate with the 3BSE042236R1 over the plant Ethernet network using the MMS protocol, ensuring deterministic data delivery for process visualization and operator command execution.

Power integrity for the HMI module is maintained through Panel 800-compatible 24 VDC power supply units, which may include redundant power modules such as the ABB SD823 or SD831 to eliminate single points of failure in the power layer. Stable, clean DC power is essential for sustained HMI operation in environments subject to electrical noise from variable frequency drives, motor starters, and high-current switching equipment.

At the I/O layer, ABB S800 I/O modules — including AI810 analog input modules, DI810 digital input modules, and DO810 digital output modules — collect field signals from sensors, transmitters, and actuators. These signals are processed by the AC 800M controller and made available to the 3BSE042236R1 for real-time display. The structured separation between the I/O layer and the HMI layer ensures that field-level faults do not propagate into the operator interface, maintaining display stability during process disturbances.

For systems requiring integration with PROFIBUS DP field devices or legacy instrumentation, ABB CI854 or CI857 communication interface modules provide the necessary protocol bridging within the AC 800M controller chassis. This allows the 3BSE042236R1 to present data from PROFIBUS-connected devices — such as intelligent motor controllers, valve positioners, and flow computers — without requiring separate HMI-level protocol drivers.

In larger installations, ABB TB820 or TB840 termination units and S800 I/O clusters may be distributed across the plant floor, with data aggregated at the controller level before being forwarded to the HMI. This distributed I/O architecture reduces cable runs, improves signal integrity, and simplifies panel wiring — all while maintaining full visibility at the 3BSE042236R1 operator station. The result is a coherent, maintainable system where every layer — from field instrument to operator display — operates as an integrated whole.

Industrial Application Notes

The ABB 3BSE042236R1 is deployed across a wide range of industrial sectors where reliable operator visibility and system-level integration are non-negotiable requirements.

In power generation and distribution facilities, the module serves as the primary operator interface for turbine control systems, transformer protection panels, and substation automation architectures. Operators rely on the Panel 800 HMI layer to monitor generator output, manage load dispatch, and respond to protection relay events — all within a unified ABB control environment.

In petrochemical and refinery applications, the 3BSE042236R1 provides continuous process visibility for distillation columns, heat exchanger networks, and compressor control systems. The module’s ability to display real-time analog trends, alarm histories, and interlock states makes it an essential component of safety-instrumented system (SIS) adjacent architectures, where operator awareness directly impacts process safety.

In water and wastewater treatment plants, the Panel 800 HMI layer manages pump sequencing, chemical dosing control, and filtration process monitoring. The 3BSE042236R1’s integration with AC 800M controllers allows operators to manage multiple treatment stages from a single interface, reducing the need for dedicated local control panels at each process unit.

In mining and mineral processing operations, the module supports crusher control systems, conveyor management, and flotation circuit monitoring. The harsh electrical environment of mining facilities — characterized by high-power motor drives, ground faults, and electromagnetic interference — demands the robust communication architecture that the Panel 800 platform provides.

In packaging and discrete manufacturing lines, the 3BSE042236R1 enables production supervisors to monitor line throughput, manage recipe parameters, and respond to equipment faults without leaving the control room. Integration with ABB’s engineering tools allows rapid configuration changes during product changeovers, minimizing downtime and maximizing line efficiency.

Product Compatibility FAQ

Q1: Is the ABB 3BSE042236R1 compatible with both AC 800M and Freelance controller platforms?
The 3BSE042236R1 is natively designed for the ABB Panel 800 architecture, which is most commonly paired with AC 800M controllers using MMS over Ethernet. Compatibility with ABB Freelance controllers depends on the specific Freelance version and communication configuration. For Freelance-based systems, it is recommended to verify the OPC DA/UA server configuration and confirm that the Panel 800 HMI software version supports the required tag addressing format. ZYPLC’s technical team can assist with compatibility verification prior to procurement.

Q2: Can the 3BSE042236R1 be integrated into an existing Panel 800 cabinet without replacing other modules?
Yes. The 3BSE042236R1 is designed for modular integration within the Panel 800 cabinet architecture. Provided that the existing power supply module delivers adequate 24 VDC capacity and the Ethernet network infrastructure supports the additional HMI node, the module can be added to an operational system with minimal disruption. Cabinet cutout dimensions and mounting hardware follow Panel 800 standards, ensuring mechanical compatibility with existing enclosures. Firmware alignment between the new module and the existing Panel 800 software environment should be confirmed during commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance?
All ABB 3BSE042236R1 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers hardware replacement or repair for units that fail to meet ABB factory specifications during the warranty period. For long-term maintenance, ZYPLC maintains ongoing inventory of Panel 800 series components, enabling rapid replacement procurement without extended lead times. Technical support for installation, commissioning, and fault diagnosis is available through ZYPLC’s engineering team at plc.sales@zyplc.com or +86 19859288691.
