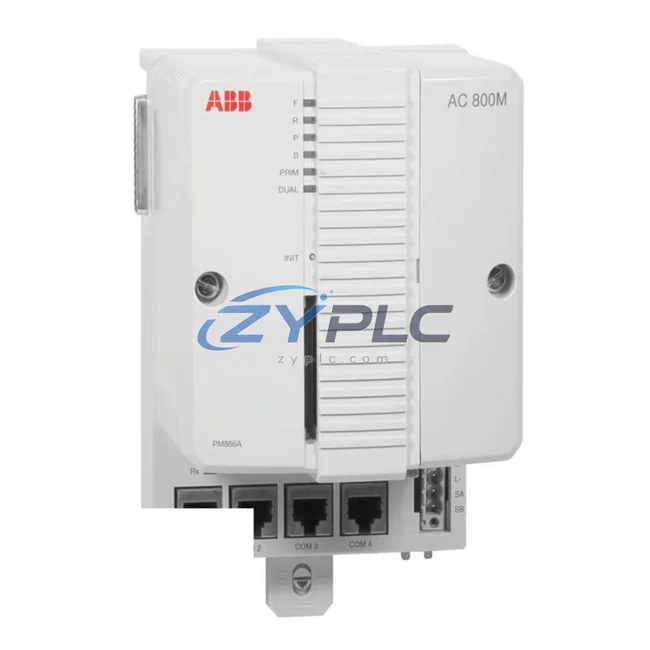

The ABB PM866AK01 (3BSE076939R1) is a high-performance processor module engineered for deployment within the ABB AC 800M distributed control system platform. As the computational core of the AC 800M controller family, this module occupies the central position in a layered automation architecture, coordinating signal acquisition from field-level I/O, executing control logic, managing peer-to-peer communication, and delivering real-time process data to supervisory and human-machine interface layers. Its role is not simply that of a standalone CPU — it is the architectural anchor that determines system throughput, redundancy capability, and long-term maintainability across the entire control hierarchy.

In modern industrial automation, the processor module must be evaluated not in isolation but in the context of the full control system stack. The 3BSE076939R1 is designed to operate within the AC 800M rack infrastructure, where it interfaces directly with the TB840A Ethernet communication interface module for high-speed plant network connectivity, and coordinates with CI854B PROFIBUS DP communication interface modules for field device integration. On the I/O side, the processor communicates with S800 I/O modules — including AI810 analog input, AO810 analog output, DI810 digital input, and DO810 digital output modules — mounted on TB807 or TB820 I/O base units, ensuring deterministic scan cycles and reliable signal integrity across all process variables.

The PM866AK01 supports dual-redundant CPU configurations when paired with a second 3BSE076939R1 unit and the appropriate redundancy switch module, enabling bumpless transfer and continuous process operation during planned maintenance or unexpected hardware faults. This redundancy architecture is critical in applications such as power generation, oil and gas processing, and chemical plant operations where unplanned downtime carries significant safety and financial consequences. The module’s memory architecture supports large application programs with structured data management, enabling engineers to implement complex sequential, regulatory, and batch control strategies within a single coherent platform.

From a network architecture perspective, the 3BSE076939R1 supports integration with ABB System 800xA distributed control and asset management platforms via the ControlNet or Ethernet/IP communication backbone, allowing seamless data exchange between the controller layer and the operations management layer. This system integration capability ensures that process historians, alarm management systems, and advanced process control applications receive consistent, time-stamped data from the field without requiring additional protocol conversion hardware. Engineers commissioning new systems or expanding existing ones benefit from the module’s compatibility with the broader AC 800M ecosystem, reducing integration risk and accelerating project timelines.

For system designers working on greenfield projects or brownfield expansions, the PM866AK01 offers a well-documented programming environment through ABB Control Builder M, supporting IEC 61131-3 languages including Function Block Diagram, Structured Text, Ladder Diagram, and Sequential Function Chart. This flexibility allows control engineers to implement industry-standard programming practices while leveraging ABB-specific function libraries for advanced regulatory control, motor management, and safety interlock logic. The module’s deterministic execution model ensures that scan time jitter remains within acceptable bounds even under high I/O load conditions, which is essential for tight process control loops in applications such as turbine speed regulation, reactor temperature control, and compressor surge protection.

Long-term maintenance and spare parts management are simplified by the 3BSE076939R1’s position within ABB’s established product lifecycle framework. The module is compatible with existing AC 800M rack assemblies, power supply units including the SD821 and SD822 power supply modules, and communication infrastructure already deployed in the field. This backward compatibility reduces the total cost of ownership for plant operators managing aging control systems, as the PM866AK01 can be introduced as a direct replacement or capacity upgrade without requiring wholesale system redesign. All units supplied through ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional testing performed to verify processor initialization, memory integrity, and communication port operation.

Product Specification Table

System Compatibility Notes

The 3BSE076939R1 achieves its full potential when integrated within a coordinated AC 800M system architecture. A typical deployment begins with the TP830 controller rack, which houses the PM866AK01 alongside the TB840A Ethernet communication module for plant LAN connectivity and the CI854B PROFIBUS DP interface for field instrument communication. Power is supplied by the SD822 redundant power supply module, ensuring continuous operation even during single power feed failures.

At the I/O layer, S800 remote I/O stations connected via the PROFIBUS DP network provide distributed signal acquisition across the plant floor. These stations incorporate AI810 8-channel analog input modules for 4–20 mA process signals, DI810 digital input modules for discrete status monitoring, and DO810 digital output modules for valve and actuator control. The PM866AK01 manages the scan cycle for all connected I/O, ensuring that process variables are updated within the configured task period and that control outputs are applied without latency-induced instability.

At the supervisory layer, the processor interfaces with ABB System 800xA via the Ethernet backbone, delivering real-time process data to operator workstations, process historians, and advanced control applications. The AC 800M Information Manager function within System 800xA enables asset health monitoring and predictive maintenance scheduling based on controller diagnostic data, extending the operational life of both the processor module and the broader control system infrastructure.

Industrial Application Notes

The PM866AK01 (3BSE076939R1) is deployed across a wide range of process industries where system reliability, scalability, and long-term vendor support are primary selection criteria. In power generation applications, the module serves as the primary controller for boiler combustion management, turbine speed and load control, and balance-of-plant auxiliary systems, where its redundancy capability ensures continuous generation output during maintenance windows. In oil and gas processing, the processor manages wellhead control, separator pressure regulation, and pipeline flow metering, integrating with PROFIBUS-connected field instruments and safety instrumented systems via hardwired interlock interfaces.

In chemical and petrochemical plants, the 3BSE076939R1 controls reactor temperature and pressure loops, distillation column management, and batch sequencing operations, leveraging the AC 800M’s IEC 61131-3 programming environment to implement complex recipe-driven control strategies. Water and wastewater treatment facilities use the module to manage pump station control, chemical dosing, filtration backwash sequencing, and SCADA integration, benefiting from the processor’s Modbus TCP support for communication with third-party instrumentation. In mining and minerals processing, the PM866AK01 controls conveyor systems, crusher drives, and flotation cell management, where its robust operating temperature range and vibration tolerance support reliable operation in harsh industrial environments.

Packaging and material handling production lines deploy the module for high-speed sequential control, coordinating servo drives, vision systems, and reject mechanisms within tight cycle time constraints. Across all these applications, the 3BSE076939R1’s combination of processing power, communication flexibility, and system integration depth makes it a preferred choice for both new installations and the modernization of legacy control infrastructure.

Product Compatibility FAQ

Q1: Is the ABB 3BSE076939R1 compatible with existing AC 800M racks and I/O infrastructure already installed in my plant?
Yes. The PM866AK01 (3BSE076939R1) is fully compatible with the AC 800M controller rack family, including TP830 and TP854 rack assemblies, and communicates natively with all S800 I/O modules via the PROFIBUS DP or Ethernet-based I/O bus. Existing wiring, I/O base units, and communication modules do not require modification when replacing or upgrading the processor module, making it a cost-effective solution for capacity upgrades and lifecycle replacements in brownfield installations.

Q2: Can the 3BSE076939R1 be configured for CPU redundancy, and what additional hardware is required?
Yes. The PM866AK01 supports hot-standby redundancy when a second 3BSE076939R1 unit is installed in the redundancy slot of a compatible AC 800M rack. The redundancy synchronization is managed internally by the AC 800M platform firmware, with bumpless transfer ensuring that the standby processor assumes control without process disruption in the event of a primary CPU fault. No additional external synchronization hardware is required beyond the standard rack and power supply configuration.

Q3: What does the warranty terms confirmed during quotation cover, and how is the module tested before shipment?
All ABB 3BSE076939R1 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Pre-shipment testing includes processor initialization verification, RAM and flash memory integrity checks, Ethernet and serial communication port functional tests, and firmware version confirmation. Modules that do not pass all test criteria are quarantined and not dispatched. In the event of a warranty claim, ZYPLC provides replacement or repair support with a target response time of 5 business days. For technical inquiries, contact +86 19859288691 or plc.sales@zyplc.com.
