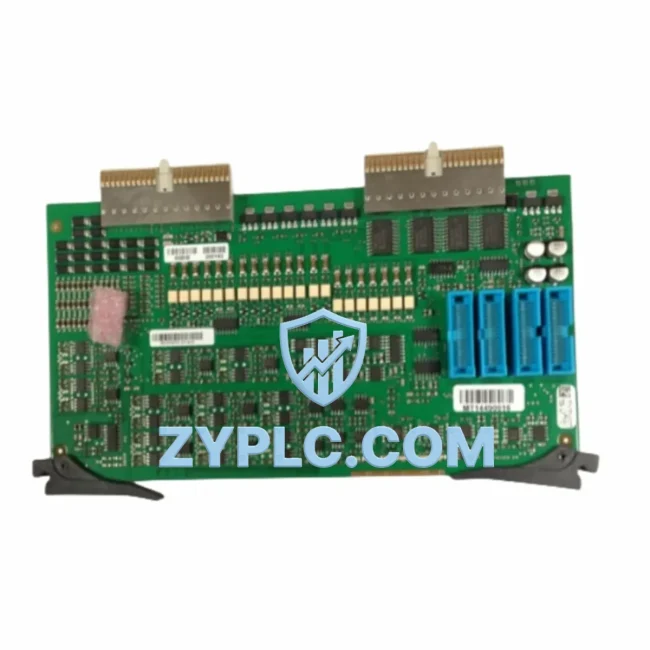

ABB 3BUS208797-001 Industrial Network Interface for AC500 Systems

ABB 3BUS208797-001 Industrial Network Interface: Bridging the AC500 Data Link in Smart Factory Environments

The ABB 3BUS208797-001 is a high-performance Condition Monitoring and Communication Board engineered for the ABB AC500 PLC series — one of the most widely deployed modular automation platforms in industrial environments worldwide. Designed to serve as a critical node in the industrial data chain, this module enables seamless protocol conversion, real-time signal transmission, and multi-layer network integration across field devices, control systems, and supervisory platforms.

In modern smart factory architectures, data isolation between field-level instruments and upper-level management systems remains one of the most persistent challenges. The 3BUS208797-001 directly addresses this by acting as a communication bridge between the AC500 CPU modules and the broader automation network — connecting PLCs, remote I/O stations, HMI panels, SCADA gateways, variable frequency drives, and edge computing nodes into a unified, transparent data flow.

Network Communication Table

Connected Automation Data Flow

The 3BUS208797-001 sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including ABB’s own NAIO-01 analog I/O modules and DI581-S digital input modules — feed real-time process values into the AC500 backplane. The 3BUS208797-001 aggregates this data and forwards it upstream via PROFIBUS DP or Modbus TCP to supervisory systems.

In a typical smart factory deployment, the AC500 CPU (such as the PM591-ETH or PM595) handles the core logic execution, while the 3BUS208797-001 manages the communication layer — offloading protocol translation tasks and ensuring deterministic data delivery. This is particularly valuable when integrating with ABB CP600 HMI panels, where real-time visualization of motor status, energy consumption, and alarm states depends on low-latency, reliable data transfer.

For drive integration, the module enables direct communication with ABB ACS880 variable frequency drives and ACS580 general-purpose drives via PROFIBUS DP or CANopen, allowing the PLC to read speed references, torque feedback, fault codes, and thermal status without additional gateway hardware. This tightly coupled drive-controller communication is essential for coordinated motion control and energy optimization in conveyor systems, pumping stations, and compressor lines.

At the network layer, the 3BUS208797-001 supports integration with ABB Ethernet switches (EDS series) and industrial-grade managed switches, enabling the AC500 system to participate in ring-topology Ethernet networks with redundancy protocols such as MRP or RSTP. This ensures network resilience in continuous-process industries where communication downtime is not acceptable.

For remote monitoring and diagnostics, the module interfaces with SCADA platforms — including ABB System 800xA and third-party systems via OPC-UA or Modbus TCP — enabling plant operators to monitor equipment health, track KPIs, and receive alarm notifications from any location. When paired with an ABB AC500-eCo remote I/O expansion or a TB541-ETH communication module, the system can extend its reach to distributed field cabinets across large plant footprints.

Edge computing integration is also supported: the 3BUS208797-001 can feed data to ABB Edge gateways or third-party IIoT platforms, enabling predictive maintenance algorithms to run on live process data — detecting bearing wear, insulation degradation, and pump cavitation before failures occur.

Solving Data Isolation in Industrial Sites

One of the most common pain points in brownfield industrial sites is the coexistence of multiple, incompatible communication protocols — legacy serial Modbus RTU devices running alongside modern PROFIBUS DP networks, with Ethernet-based SCADA systems sitting above both. The 3BUS208797-001 resolves this by providing a unified communication interface within the AC500 platform, eliminating the need for standalone protocol converters and reducing wiring complexity.

Data silos — where field data is trapped in isolated PLCs or standalone controllers — are broken down by the module’s ability to publish process variables to both local HMI panels and remote SCADA servers simultaneously. This enables production line transparency: operators at the control room level can see the same real-time data as field technicians, reducing response times to process deviations and equipment faults.

For remote monitoring applications — particularly in water treatment plants, substations, oil & gas facilities, and renewable energy sites — the 3BUS208797-001 enables the AC500 system to serve as a remote terminal unit (RTU), transmitting structured data packets to central control rooms over TCP/IP networks. This eliminates the need for dedicated RTU hardware and reduces total system cost.

System scalability is another key advantage. As production lines expand, additional AC500 I/O modules, communication cards, and remote stations can be added to the network without reconfiguring the core communication architecture. The 3BUS208797-001 supports this modular growth model, making it a future-proof investment for facilities planning phased automation upgrades.

Every unit shipped by ZYPLC undergoes pre-shipment functional testing, including communication link verification, protocol handshake confirmation, and power-on diagnostics. All products are covered by a 12-month warranty, with in-stock availability ensuring fast delivery to global destinations.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3BUS208797-001 support?
The 3BUS208797-001 is designed for the ABB AC500 platform and supports PROFIBUS DP, Modbus RTU/TCP, and CANopen depending on the CPU and firmware configuration. When used with Ethernet-capable AC500 CPUs such as the PM591-ETH or PM595, it also enables EtherNet/IP and Modbus TCP communication with SCADA and HMI systems.

Q2: Is the 3BUS208797-001 compatible with third-party SCADA and HMI systems?
Yes. The module communicates via standard industrial protocols (Modbus TCP, PROFIBUS DP) that are supported by all major SCADA platforms including Wonderware, Ignition, Siemens WinCC, and ABB System 800xA. It is also compatible with third-party HMI panels that support these protocols, making it suitable for mixed-vendor automation environments.

Q3: How does the module ensure network stability in continuous-process applications?
The 3BUS208797-001 supports deterministic cyclic communication with configurable watchdog timers, ensuring that communication faults are detected and flagged within milliseconds. When integrated into redundant Ethernet ring topologies using MRP or RSTP protocols, network recovery times are typically under 200ms, meeting the requirements of most process control applications.

Q4: What warranty and testing does ZYPLC provide for this module?
All ABB 3BUS208797-001 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including communication protocol verification, backplane interface check, and power-on self-test. In-stock units are available for immediate dispatch with full traceability documentation.

—
