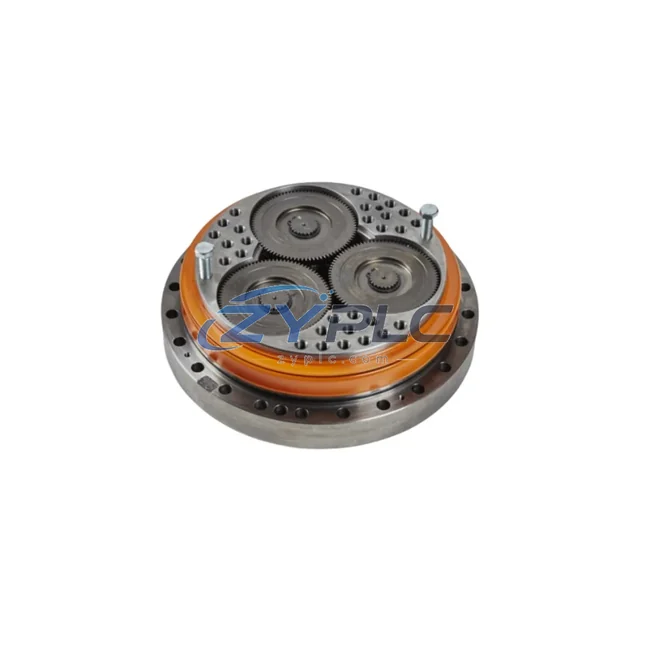

ABB 3HAC021127-001 Gearbox Module for IRB Robot

The ABB 3HAC021127-001 Gearbox Module is a precision-engineered mechanical transmission component designed to operate as an integral element within ABB’s IRB industrial robot control architecture. Rather than functioning as a standalone replacement part, this gearbox module is engineered to maintain the structural and kinematic integrity of the complete robot system — from the motion controller layer down through the servo drive layer, joint actuation, and mechanical transmission. In multi-axis IRB robot deployments across manufacturing, automotive assembly, arc welding, material handling, and palletizing applications, the gearbox module at each joint axis is the critical interface between electrical command signals and physical mechanical output. The 3HAC021127-001 fulfills this role with the dimensional accuracy, torque capacity, and backlash specification demanded by ABB’s IRC5 and OmniCore controller platforms.

Product Specification Table

System Compatibility Notes

In a fully integrated ABB IRB robot cell, the 3HAC021127-001 Gearbox Module does not operate in isolation. Its performance is directly dependent on — and directly influences — every other layer of the control architecture. Understanding this interdependency is essential for system engineers responsible for commissioning, maintenance planning, and spare parts inventory management.

At the controller layer, the ABB IRC5 Main Computer Unit (3HAC025338-001) executes motion path calculations and issues torque commands via the drive system. The accuracy of these commands is only as good as the mechanical fidelity of the gearbox at each axis. A worn or incorrectly specified gearbox introduces backlash that the IRC5’s motion supervision algorithms will detect as path deviation, triggering fault codes and reducing TCP (Tool Center Point) accuracy. Replacing the 3HAC021127-001 with a factory-specification unit restores the closed-loop integrity between the controller and the mechanical output.

At the drive layer, the ABB Drive Unit DSQC661 (3HAC026253-001) and associated axis computer boards translate controller commands into servo motor current. The servo motor — typically an ABB IRB-series AC servo motor with resolver feedback — delivers rotational input to the gearbox. The 3HAC021127-001 reduces this high-speed, low-torque motor output to the low-speed, high-torque joint movement required for precise axis positioning. Any mismatch in gear ratio or dimensional tolerance between the motor output shaft and the gearbox input interface will result in vibration, thermal stress, and premature bearing failure across the drive train.

At the I/O and signal layer, the ABB I/O Module DSQC652 (3HAC025784-001) manages digital and analog signals from end-effectors, safety interlocks, and peripheral equipment. While the I/O module does not directly interface with the gearbox, the system-level consequence of gearbox degradation — reduced repeatability, increased cycle time, axis fault alarms — propagates upward through the I/O layer as process quality signals and downtime events. Maintaining the 3HAC021127-001 in specification keeps the entire signal chain operating within designed parameters.

At the power supply layer, the ABB Power Supply Unit DSQC661 and the IRC5 Drive System Power Module (3HAC024488-001) provide regulated DC bus voltage to the servo drives. A mechanically degraded gearbox increases the load on the servo motor, which in turn draws higher current from the drive system and power supply. This thermal and electrical stress shortens the service life of power electronics. Restoring the gearbox to factory specification directly reduces electrical load and extends the service interval of the entire power chain.

At the HMI and supervision layer, the ABB FlexPendant (3HAC028357-001) provides the operator interface for jogging, program execution, and fault acknowledgment. Gearbox-related faults — axis overload, path deviation, joint limit errors — are surfaced to the operator through the FlexPendant. A correctly specified 3HAC021127-001 eliminates the root cause of these fault conditions, reducing operator intervention and improving OEE (Overall Equipment Effectiveness).

For multi-robot cells or robot lines with shared safety architecture, the ABB SafeMove2 Safety Module and IRC5 Panel Interface Module (3HAC026254-001) monitor axis speed and position against safety-rated limits. Gearbox backlash or slippage can cause the SafeMove2 system to trigger safety stops, halting the entire production line. The 3HAC021127-001, when installed to ABB’s mechanical specification, ensures that axis position feedback remains within SafeMove2’s monitored tolerance bands.

Industrial Application Notes

Automotive Body-in-White Assembly: In automotive stamping and welding lines, ABB IRB 6600 and IRB 7600 robots perform spot welding, sealing, and material transfer at cycle times under 6 seconds. The gearbox modules at axes 1 through 6 must maintain sub-millimeter TCP repeatability across millions of cycles. The 3HAC021127-001 is a scheduled replacement component in automotive OEM preventive maintenance programs, typically replaced at 20,000–40,000 operating hours depending on payload and duty cycle.

Arc Welding and Cutting: ABB IRB 1600 and IRB 2400 robots in arc welding applications require smooth, low-vibration axis motion to maintain consistent weld bead geometry. Gearbox backlash directly degrades weld quality by introducing micro-oscillations in the torch path. The 3HAC021127-001 provides the low-backlash performance specification required for seam tracking and adaptive welding applications.

Palletizing and Material Handling: High-payload IRB 4600 and IRB 6640 robots in palletizing lines operate at high speeds with frequent direction reversals. The gearbox modules in these applications experience high cyclic torque loading. The 3HAC021127-001’s rated torque capacity and fatigue life are matched to ABB’s payload and speed specifications for these robot models, ensuring reliable operation in 24/7 production environments.

Electronics and Semiconductor Assembly: Cleanroom-rated ABB IRB 120 and IRB 1200 robots in electronics assembly require gearbox modules with minimal particulate generation and precise repeatability. The 3HAC021127-001 variants with enhanced sealing (/006, /007) are applicable in ISO Class 5–6 cleanroom environments where contamination control is critical.

Food, Beverage, and Pharmaceutical Processing: Wash-down rated IRB robot variants in food processing and pharmaceutical filling lines require gearbox modules with IP67 protection and food-grade compatible lubrication. The 3HAC021127-001 series includes variants (/010, /011) suitable for hygienic zone applications, supporting compliance with FDA and EHEDG guidelines for robotic equipment in food contact environments.

Product Compatibility FAQ

Q1: Is the ABB 3HAC021127-001 compatible with both IRC5 and OmniCore controller platforms?
Yes. The 3HAC021127-001 Gearbox Module is a mechanical component whose compatibility is determined by the robot model (IRB series) rather than the controller generation. Both IRC5 and OmniCore controllers can drive the same IRB robot mechanical unit. If your robot arm is mechanically compatible with the 3HAC021127-001, the controller platform does not affect gearbox selection. Always verify the axis number and robot model variant (standard, Foundry, Wash-down) when ordering to ensure dimensional and sealing compatibility.

Q2: Can the 3HAC021127-001 be installed without ABB-certified service tooling, and what are the commissioning requirements after replacement?
Gearbox replacement on ABB IRB robots requires axis-specific disassembly tooling, torque wrenches calibrated to ABB’s specification, and factory-approved grease (3HAC032140-004 or equivalent). After installation, the axis must be calibrated using ABB’s CalibWare or Levelmeter 2000 calibration tool to restore the robot’s reference position. Failure to perform post-installation calibration will result in TCP offset errors and potential collision risk. ZYPLC recommends that gearbox replacement be performed by qualified ABB-trained service engineers. Our technical team can provide installation documentation and calibration procedure guidance as part of the warranty terms confirmed during quotation support package.

Q3: What does the warranty terms confirmed during quotation cover for the 3HAC021127-001, and how does ZYPLC support long-term spare parts availability?
The warranty terms confirmed during quotation covers manufacturing defects, dimensional non-conformance, and premature failure under normal operating conditions as defined by ABB’s robot payload and duty cycle specifications. Warranty claims require documentation of the installation environment, robot model, and operating hours. ZYPLC maintains a dedicated inventory of ABB IRB series gearbox modules — including the 3HAC021127-001 and its sub-variants (/003 through /011) — to support both emergency replacement and planned preventive maintenance programs. Our inventory management system supports long-term supply agreements for automotive, energy, and process industry customers requiring guaranteed spare parts availability over 3–5 year maintenance horizons.
