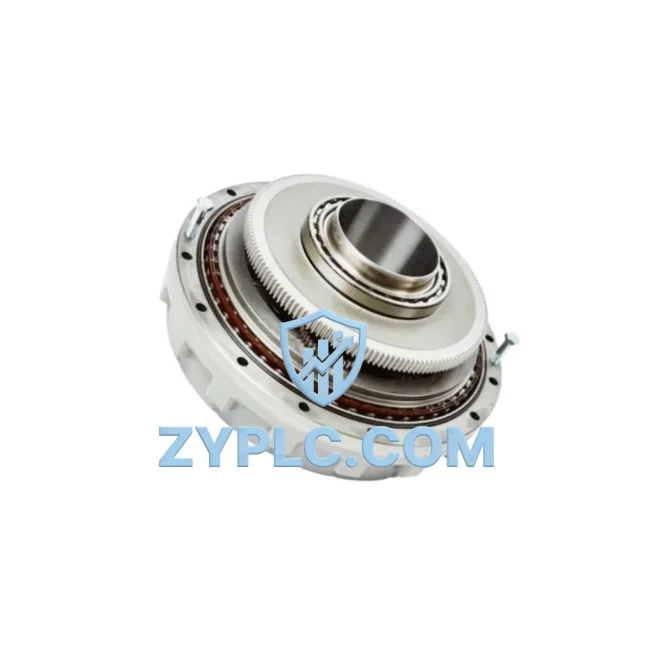

ABB 3HAC021127-001 Industrial Robot Joint Gearbox for IRB Series

ABB 3HAC021127-001 Industrial Robot Joint Gearbox: Precision Motion Control for IRB Series Automation

The ABB 3HAC021127-001 is a high-precision robot joint gearbox reducer engineered for ABB’s IRB series industrial robots. Designed to deliver consistent torque transmission, low backlash, and long service life in demanding manufacturing environments, this gearbox is a critical mechanical interface between the servo drive system and the robot arm’s articulated joints. Whether integrated into automotive welding cells, precision assembly lines, palletizing stations, or machine-tending applications, the 3HAC021127-001 ensures that motion commands from the ABB IRC5 controller are translated into accurate, repeatable physical movement at the joint level.

In a fully automated production cell, the data and control chain begins at the SCADA or MES layer, flows through the ABB IRC5 controller, is processed by the drive unit, and ultimately reaches the servo motor — whose output torque is then stepped down and amplified by the joint gearbox. The 3HAC021127-001 sits at this critical mechanical node, converting high-speed, low-torque motor output into the precise, high-torque, low-speed rotation required for controlled joint articulation. Any degradation in gearbox performance — increased backlash, abnormal vibration, or thermal runaway — is immediately reflected in positional deviation data captured by the IRC5’s internal diagnostics and surfaced through RobotStudio or connected SCADA dashboards.

Network Communication Table

Connected Automation Data Flow

Understanding where the ABB 3HAC021127-001 fits within the broader automation architecture is essential for maintenance engineers and procurement teams alike. In a typical IRB-series robot cell, the control hierarchy begins with a plant-level SCADA system or MES platform communicating via PROFINET or EtherNet/IP to the ABB IRC5 controller. The IRC5 houses the DSQC 661 main computer and DSQC 663 axis computer, which coordinate motion planning and send torque/velocity commands to the ABB Drive Unit (DSQC 374 or DSQC 601) over the internal drive bus.

The drive unit powers the ABB servo motor mounted at each robot joint. The motor’s high-speed rotational output is then mechanically coupled to the 3HAC021127-001 joint gearbox, which reduces speed and multiplies torque to drive the robot arm segment with the precision required for path accuracy within ±0.02 mm. Encoder feedback from the motor is routed back through the DSQC 352 measurement board to the IRC5, closing the position control loop in real time.

When the gearbox exhibits wear — detectable as increased joint temperature, vibration anomalies, or positional drift — the IRC5’s internal diagnostics flag the deviation. This data is forwarded via OPC UA or ABB Ability™ Connected Services to cloud-based monitoring dashboards, enabling predictive maintenance scheduling without halting production. Peripheral devices such as Cognex vision systems, SICK safety scanners, and Keyence laser displacement sensors connected to the cell’s DeviceNet or EtherCAT network also contribute real-time environmental data that informs the robot’s adaptive motion parameters — all of which depend on the mechanical integrity of components like the 3HAC021127-001.

For multi-robot cells coordinated by an ABB MultiMove configuration, gearbox health across all axes is monitored collectively through the shared IRC5 controller, with status data aggregated at the HMI panel (ABB CP600 or equivalent) and relayed upstream to the plant’s Ignition SCADA or Siemens WinCC environment. Replacement of a degraded 3HAC021127-001 gearbox restores full positional accuracy and eliminates the cascading errors that propagate through the motion chain when mechanical compliance increases.

Solving Data Isolation in Industrial Robot Maintenance

One of the most persistent challenges in industrial robot maintenance is the disconnect between mechanical component status and digital monitoring systems. When a joint gearbox like the 3HAC021127-001 begins to degrade, the symptoms — subtle increases in backlash, micro-vibrations, or thermal signatures — are often invisible to operators until a positional fault or collision error is triggered at the IRC5 level. By the time an alarm surfaces on the HMI or SCADA dashboard, production has already been interrupted.

ZYPLC addresses this challenge by supplying verified OEM and compatible replacement gearboxes with full traceability documentation, enabling maintenance teams to implement scheduled replacement cycles rather than reactive repairs. Each 3HAC021127-001 unit shipped from ZYPLC undergoes pre-shipment functional verification, ensuring that the gearbox meets ABB’s original backlash and torque specifications before installation. This eliminates the risk of installing a substandard component that introduces new positional errors into a calibrated robot cell.

For facilities operating multiple IRB-series robots — such as IRB 2600 arc welding cells alongside IRB 6700 heavy-payload stations — maintaining a standardized spare parts inventory that includes the 3HAC021127-001 reduces mean time to repair (MTTR) and supports production continuity. ZYPLC’s inventory management support and global express shipping via DHL and FedEx ensure that critical spare parts reach your facility within the shortest possible lead time, minimizing unplanned downtime and its associated production losses.

System transparency is further enhanced when gearbox replacement is logged in the plant’s CMMS (Computerized Maintenance Management System) and correlated with IRC5 diagnostic data, creating a complete maintenance history that supports ISO 9001 compliance and continuous improvement initiatives. ZYPLC provides full part documentation to support this traceability requirement.

Industrial Connectivity FAQ

Q1: Is the ABB 3HAC021127-001 compatible with all IRC5 controller variants?
Yes. The 3HAC021127-001 is mechanically compatible with IRB series robots controlled by the IRC5, IRC5 Compact, and IRC5 Panel Mounted controller variants. Compatibility is determined by the robot model and axis configuration rather than the controller variant. Please confirm your specific IRB model and axis number when placing an order to ensure correct fitment.

Q2: How does gearbox wear affect robot positional accuracy and SCADA data integrity?
As the joint gearbox wears, backlash increases, causing the actual joint position to deviate from the commanded position. The IRC5 controller detects this as a positional error and may generate fault codes (e.g., 50024 or 50025 series joint errors). These errors propagate to connected SCADA and MES systems as quality alerts, potentially triggering false rejects or halting automated inspection routines. Timely gearbox replacement restores positional accuracy and eliminates spurious fault data.

Q3: What pre-shipment testing does ZYPLC perform on the 3HAC021127-001?
Each unit undergoes dimensional verification, backlash measurement, and rotational resistance testing prior to shipment. Units that do not meet ABB’s original specification tolerances are rejected. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: Can ZYPLC support urgent replacement orders for production-critical robot downtime?
Yes. ZYPLC maintains in-stock inventory of the 3HAC021127-001 and can process urgent orders for same-day or next-day DHL/FedEx Express dispatch to most global destinations. Contact our team at +86 19859288691 or [email protected] with your robot model, axis number, and delivery location for an immediate availability confirmation and RFQ.
