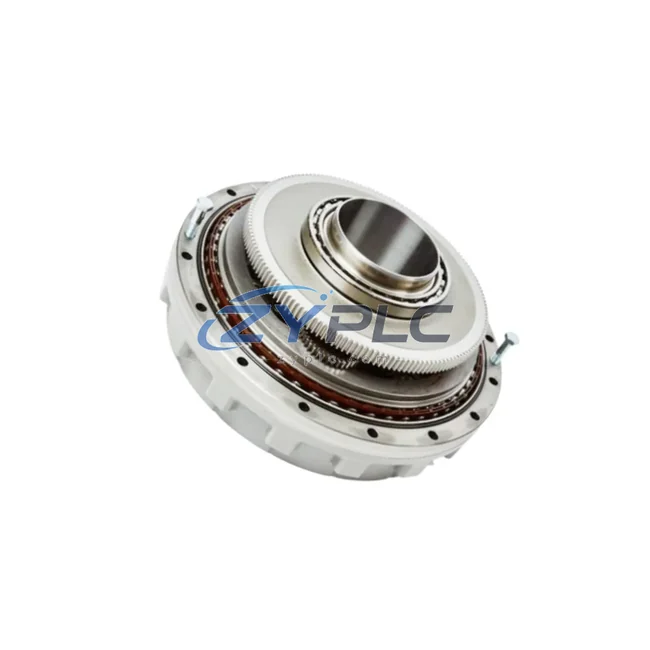

ABB 3HAC021127-003 RV Gear Unit for IRB Series

ABB 3HAC021127-003 RV Gear Unit for IRB Series: Precision Motion at the Core of Coordinated Control

The ABB 3HAC021127-003 is a precision RV (Rotary Vector) gear unit engineered for the ABB IRB robot series, serving as a foundational mechanical and kinematic component within the broader control system architecture of modern industrial automation cells. In a fully layered automation environment, the 3HAC021127-003 does not operate in isolation — it is the mechanical interface between the servo drive layer and the physical execution layer, translating high-speed motor torque into the precise, low-speed, high-torque joint motion that defines the IRB robot’s positional accuracy and repeatability. Understanding its role within the complete system architecture is essential for engineers designing, commissioning, or maintaining ABB robot-based production lines.

At the control layer, the ABB IRC5 robot controller — whether in single-cabinet or dual-cabinet configuration — manages all six robot axes through its integrated drive modules and axis computer boards. The servo motor driving the joint where the 3HAC021127-003 gear unit is installed receives real-time current commands from the IRC5 drive module, with position feedback returned via the motor’s resolver or encoder interface. The gear unit’s reduction ratio directly determines the relationship between motor shaft speed and joint angular velocity, making the 3HAC021127-003 a critical parameter in the IRC5’s motion planning calculations. Any deviation in gear backlash or output shaft stiffness is immediately reflected in the IRC5’s position error monitoring, triggering fault codes that propagate through the fieldbus to the plant’s SCADA system.

Product Specification Table

System Compatibility Notes

The 3HAC021127-003 gear unit operates within a tightly coordinated multi-layer control architecture. At the top of the hierarchy, the ABB IRC5 controller’s main computer board (3HAC025562-001) executes the RAPID motion program, generating trajectory setpoints for each robot axis. These setpoints are passed to the IRC5 drive module, which commands the axis servo motor — typically an ABB 3HAC037635-005 or equivalent AC servo motor — to accelerate, hold position, or decelerate according to the programmed path.

The servo motor’s output shaft connects directly to the input stage of the 3HAC021127-003 RV gear unit. The gear unit’s cycloidal reduction mechanism converts the motor’s high-speed rotation (typically 1,000–3,000 RPM) into a precise, high-torque output at the robot joint, with reduction ratios commonly in the range of 1:50 to 1:160 depending on the axis application. This mechanical reduction is what enables the IRB robot to achieve sub-0.1 mm repeatability across thousands of operating cycles — a performance level that is only possible when the gear unit’s internal components maintain their designed preload and backlash specifications.

The IRC5 controller’s power supply unit (3HAC024488-001) provides stable DC bus voltage to the drive modules, ensuring that servo current delivery to the motor — and by extension, the torque transmitted through the 3HAC021127-003 — remains consistent even during rapid acceleration or deceleration phases. Power quality at this layer directly affects gear unit longevity, as torque spikes caused by unstable power delivery accelerate wear on the RV gear’s cycloidal discs and output bearings.

At the I/O layer, the IRC5’s digital I/O board (3HAC025784-001) manages peripheral signals — fixture clamps, conveyor triggers, safety gate interlocks — that coordinate the robot’s motion sequence with the surrounding production cell. When a safety gate opens, the I/O board signals the IRC5 to execute a controlled stop, which the drive module implements by ramping down servo current to the motor and allowing the 3HAC021127-003 gear unit to hold the joint position under its self-locking output stage. This controlled deceleration protects the gear unit from shock loads that would otherwise occur during an emergency stop.

For multi-robot cells, the IRC5 MultiMove controller synchronizes up to four IRB robots over a shared EtherNet/IP or PROFINET network, with each robot’s joint data — including torque load on the 3HAC021127-003 axis — available to the plant SCADA system in real time. An ABB CP600 HMI panel or third-party Weintek MT8000 series HMI connected to the IRC5 via Modbus TCP provides operators with live joint load trending, gear unit temperature monitoring (via motor thermal sensors), and maintenance interval countdowns based on accumulated operating hours.

Terminal modules and safety relays within the robot control cabinet — such as Phoenix Contact SAFE 4 or Pilz PNOZ series — handle the safety circuit wiring that governs the IRC5’s operational modes, ensuring that gear unit maintenance procedures can be performed safely under controlled power-down conditions without disrupting the broader production line network.

Industrial Application Notes

The ABB 3HAC021127-003 RV gear unit finds application across a wide range of industrial sectors where the IRB robot series is deployed as a core automation asset. In automotive manufacturing, IRB 6600 and IRB 7600 robots equipped with 3HAC021127-003 gear units perform heavy-duty spot welding, body panel handling, and powertrain assembly operations, where joint stiffness and zero-backlash performance are non-negotiable for weld quality and dimensional accuracy.

In the electronics and semiconductor industry, smaller IRB robots using the same RV gear unit architecture handle precision component placement, PCB assembly, and optical inspection tasks, where the gear unit’s low backlash ensures that the robot’s TCP (Tool Center Point) remains within micron-level tolerances across millions of cycles. The IRC5 controller’s fine-tuned servo parameters — calibrated to the specific reduction ratio of the 3HAC021127-003 — are essential for achieving this level of precision in cleanroom environments.

In process industries such as petrochemical, water treatment, and power generation, IRB robots equipped with 3HAC021127-003 gear units are deployed for valve manipulation, pipe welding, and hazardous material handling in environments where human access is restricted. The IRC5’s OPC-UA connectivity allows these robots to report joint health data — including gear unit torque trends and temperature profiles — directly to the plant’s DCS (Distributed Control System) or SCADA platform, enabling predictive maintenance scheduling without requiring on-site inspection.

In mining and metallurgy applications, IRB robots handle ore sampling, ladle pouring, and furnace charging operations in extreme thermal and vibration environments. The 3HAC021127-003’s robust RV gear construction — with hardened cycloidal discs and precision output bearings — is designed to maintain performance under these demanding conditions, with the IRC5 controller continuously monitoring joint load data to detect early signs of gear wear before they escalate into unplanned downtime events.

All 3HAC021127-003 units supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment dimensional and rotational inspection, and dispatched with full documentation. Global logistics via DHL Express or FedEx International Priority ensures fast delivery to any production site, with warranty terms confirmed during quotation coverage from the date of shipment and advance replacement support for critical production applications.

Product Compatibility FAQ

Q1: How do I confirm that the 3HAC021127-003 is the correct gear unit for my specific IRB robot axis, and what system compatibility checks are required before installation?
The 3HAC021127-003 is identified by its ABB part number, which corresponds to a specific axis position and reduction ratio within the IRB robot series. Before installation, verify the part number against the robot’s spare parts manual (available via ABB’s documentation portal) and confirm the IRC5 controller’s axis configuration parameters match the gear unit’s reduction ratio. After installation, the IRC5’s calibration routine must be re-executed to update the axis zero-point and mastering data, ensuring that the controller’s motion planning accurately reflects the new gear unit’s mechanical characteristics. ZYPLC’s technical team can assist with part number cross-referencing and installation documentation upon request.

Q2: What are the long-term maintenance requirements for the 3HAC021127-003 in a high-cycle production environment, and how does the IRC5 system support predictive maintenance?
ABB recommends periodic lubrication replenishment for RV gear units based on accumulated operating hours and cycle counts, with intervals specified in the IRB robot’s maintenance manual. The IRC5 controller tracks joint torque load and motor current data continuously, and ABB’s RobotStudio software can analyze this data to identify trends indicating gear wear — such as increasing torque variance or rising motor current at constant load. ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and premature wear under normal operating conditions, and our team provides technical support for maintenance scheduling and spare parts planning to minimize production disruption.

Q3: Can the 3HAC021127-003 be installed in a redundant or hot-standby robot architecture, and how does the IRC5 manage failover in such configurations?
While individual IRB robots do not support hot-standby redundancy at the joint level, production lines can be designed with redundant robot cells — two IRB robots capable of performing the same task — managed by the IRC5 MultiMove controller or a higher-level PLC such as a Siemens S7-1500 or Allen-Bradley ControlLogix. In such architectures, if one robot’s gear unit requires replacement, the redundant robot assumes the workload while maintenance is performed, with the IRC5 automatically rerouting task assignments via the EtherNet/IP or PROFINET network. ZYPLC maintains warehouse stock of the 3HAC021127-003 to support rapid replacement in these critical redundancy scenarios, with same-day dispatch available for urgent production requirements.
